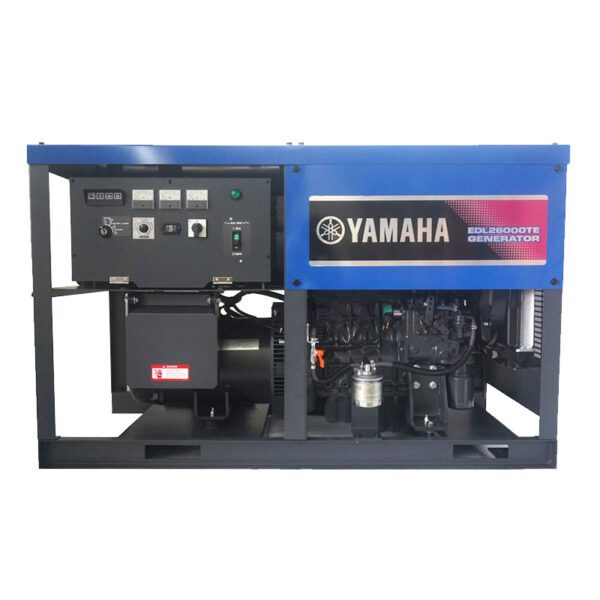

Yamaha EDL26000TE Diesel Generator Set 23KVA Three-Phase 380V Water-Cooled Four-Cylinder Electric Starter
Engine type:Four-stroke Four-cylinder water-cooled diesel engine
Displacement:1335cc
Rated power:18.8KW/3000rpm
Starting method:Electric starter
$14,800.00
CompareDiesel Generator Specification:
| Generator | Model | EDL26000TE |
| Phases | Tri-phase /Single phase | |
| Rated output | 21.0KVA | |
| Maximum output | 23.0KVA | |
| Power factor | 0.8 | |
| Rated voltage | 380V/220V | |
| Rated current | 31.9A | |
| Frequency | 50HZ | |
| Engine | Engine type | Four-stroke Four-cylinder water-cooled diesel engine |
| Displacement | 1335cc | |
| Rated power | 18.8KW/3000rpm | |
| Starting method | Electric starter | |
| Fuel tank volume | 80L | |
| Continuous running time | 12.9hours | |
| Lubricating oil capacity | 6.0L | |
| Noise level | 81dBa/7meter | |
| Other | Other AC overload protection | No-fuse circuit breaker (NFB) |
| Dimensions (L×W×H) | 1380*700*930mm | |
| Net weight | 385kg | |
| Recommended battery capacity | 12-70AH |
Based on 0 reviews
Be the first to review “Yamaha EDL26000TE Diesel Generator Set 23KVA Three-Phase 380V Water-Cooled Four-Cylinder Electric Starter”
Related products
-
Power Generator
WEICHAI Generator Set 10KW to 800KW Silent Diesel Generator Commercial Industrial Diesel Generator Available Worldwide
Power GeneratorWEICHAI Generator Set 10KW to 800KW Silent Diesel Generator Commercial Industrial Diesel Generator Available Worldwide
NOTE: Prices may vary by product model and material.
- Rated power: Rated power (PRP) refers to the maximum power that the generator set can be used continuously within 24 hours between specified maintenance intervals and specified environmental conditions. We call it continuous power, that is, rated power.
- Standby power: Standby power (LTP) means that the generator set can operate on the basis of rated power for one hour within every 12 hours within a certain period of time between specified maintenance intervals and specified environmental conditions. 10% overload, the unit power at this time is what we usually call the maximum power, that is, the standby power.
