Wood Splitting Machine for Tree Branch Process Industry


The drum wood chipper stands out in industrial wood preprocessing with targeted selling points that solve core user needs. First, its industrial-grade performance delivers consistent quality: it effortlessly handles diverse raw materials (logs, branches, wood scraps) and transforms them into uniform, high-quality wood chips—critical for downstream processes like pulp production or biomass fuel making, as it minimizes material waste and ensures stable output standards. Second, the electric-hydraulic power combo boosts convenience and reliability: the electric system eliminates the hassle of gasoline refueling and reduces maintenance needs, while the orange hydraulic cylinder enhances feeding stability and equipment operation smoothness, cutting down on downtime during long shifts. Third, its precision-engineered structure drives efficiency: the textured toothed feed rollers securely grip and convey wood to prevent jams, and the high-speed rotating drum cutter assembly enables fast, even chipping—boosting overall processing speed without compromising chip quality. Finally, its wide industrial applicability adds versatility: it fits seamlessly into wood processing plants (large-scale chip production), paper mills (pulp raw material prep), and biomass fuel plants (wood chip fuel manufacturing), making it a cost-effective, one-stop solution for professional wood preprocessing demands.

$70,000.00

Compare

Description:Wood Splitting Machine

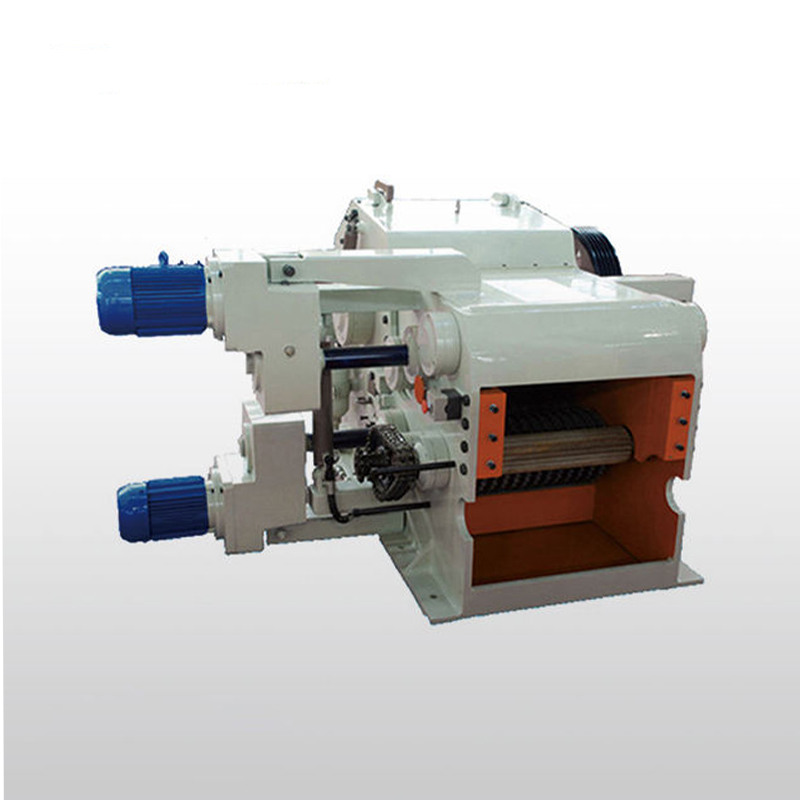

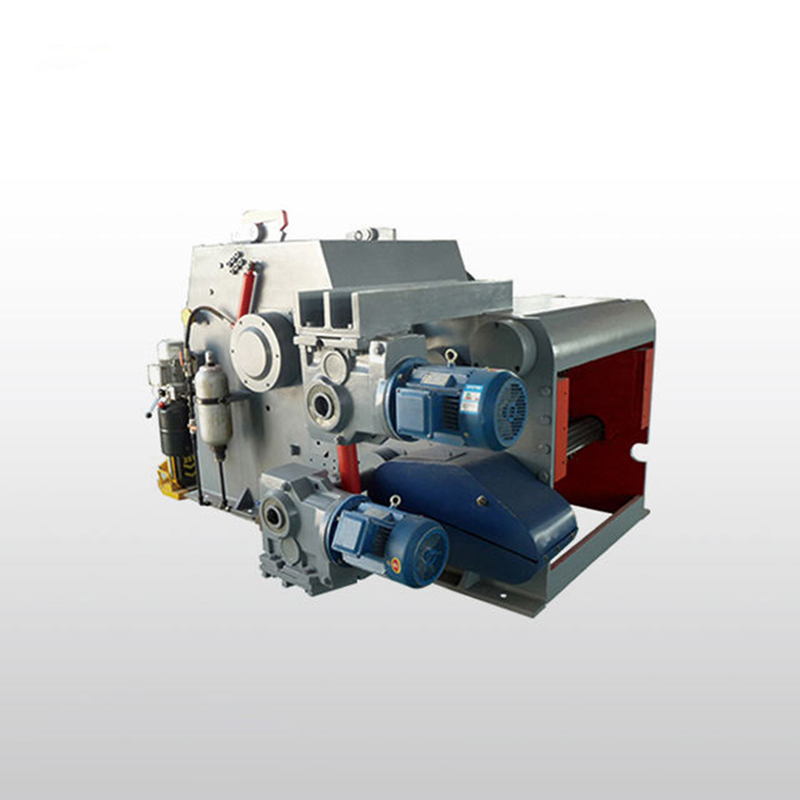

The drum wood chipper is a high-performance industrial-grade wood processing device, specially engineered for the preprocessing stage of wood utilization. Designed to transform raw materials like logs, branches, and wood scraps into uniform, high-quality wood chips, it stands out for its reliable structure and efficient operation.

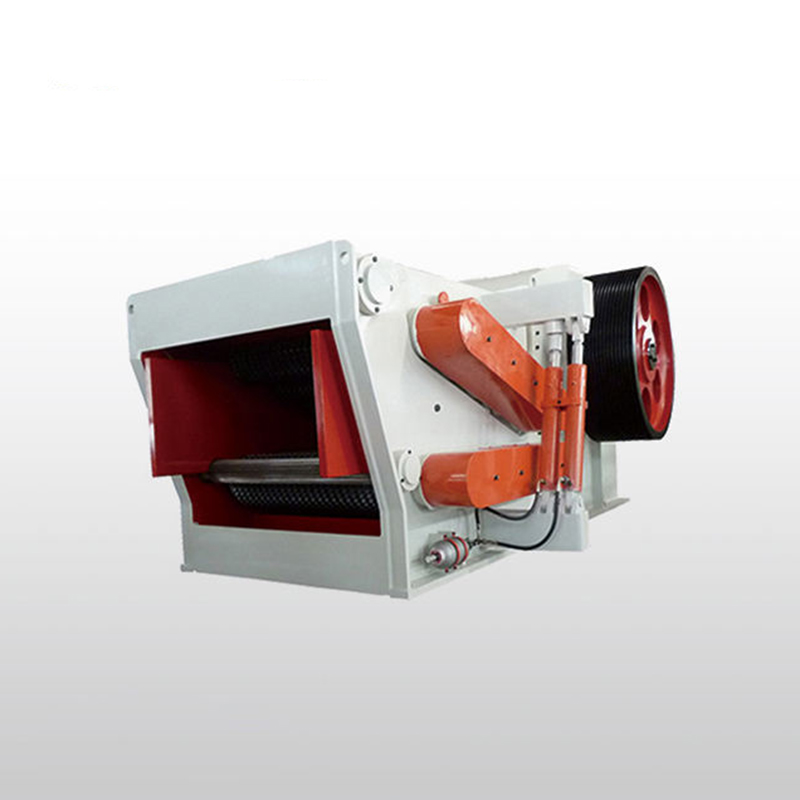

Powered by an electric system (paired with an orange hydraulic cylinder for auxiliary feeding and equipment stability), this chipper eliminates the hassle of fuel refueling while ensuring consistent processing speed. Its key structural components—including textured toothed feed rollers and a high-speed rotating drum cutter assembly—work together to securely convey wood materials and achieve precise, even chipping, minimizing waste and maximizing output quality.
Ideal for industrial scenarios, it plays a crucial role in wood processing plants (for large-scale wood chip production), paper mills (as a preprocessing tool for pulp raw materials), and biomass fuel plants (for manufacturing wood chip-based fuels). Whether handling bulk logs or small branches, the FARTHEST drum wood chipper delivers durability and efficiency, making it a trusted choice for professional wood preprocessing needs.



Main Technical Parameters:Wood Splitting Machine

Model

Parameters

BX216 BX218 BX218D BX2110 BX2113/11
Rotor Diameter(mm) 650 800 800 1000 1300
Number Of Flying Knives(pc) 2 2 2 2×2 3×2
Feed Opening(mm) 180×500 225×680 240×750 330×1050 400×1050
Knife Rotor Speed(rpm) 590 650 650 550 442
Feed Speed(m/min) 37.2 37 38 38 43
Stock Processed

Max Diameter(mm)

120 160 160 210 230
Chip Length(mm) 30 30 20-30 30 30
Capacity(m3/h) 10 15-20 38 75 108
Main Drive Motor Power(kw) 55 110 132 220 315
Feed Roller Motor Power(kw) 2×3 4×2 4×2 7.5×2 11×2
Pump Motor Power(kw) 0.55 2.2

3

Machine Net Weight(kg) 4070 7000 7500 12500 18000



Featrues

1. The serial drum chippers of our company are a kind of special equipment that produces technological wood chips. Widely used in the production of medium-density fiberboard., ordinary shaving board and in the papermaking industry etc., it is used as the main machine of material-preparing process of wood chips, could be used as independent wood chip production equipment as well.

2. The raw materials for the serial drum chippers mainly include: log, small-diameter wood, tree-felling remainder (branch etc.), wood processing remainder (lath, slab, log core, abolish single-board.).

3. The serial drum chippers are of compact structure, ease of operation, high capacity, wide raw materials adaptability, high quality, safe and reliable, easy to maintain, it is the relatively advanced slicer at present both at home and abroad.

4. The serial drum chippers could meet the production capacity between 3 and 130 cubic meters of wood chips per hour. Users could select the suitable type of machine according to requirements.

Contact us to get your quotation now.
