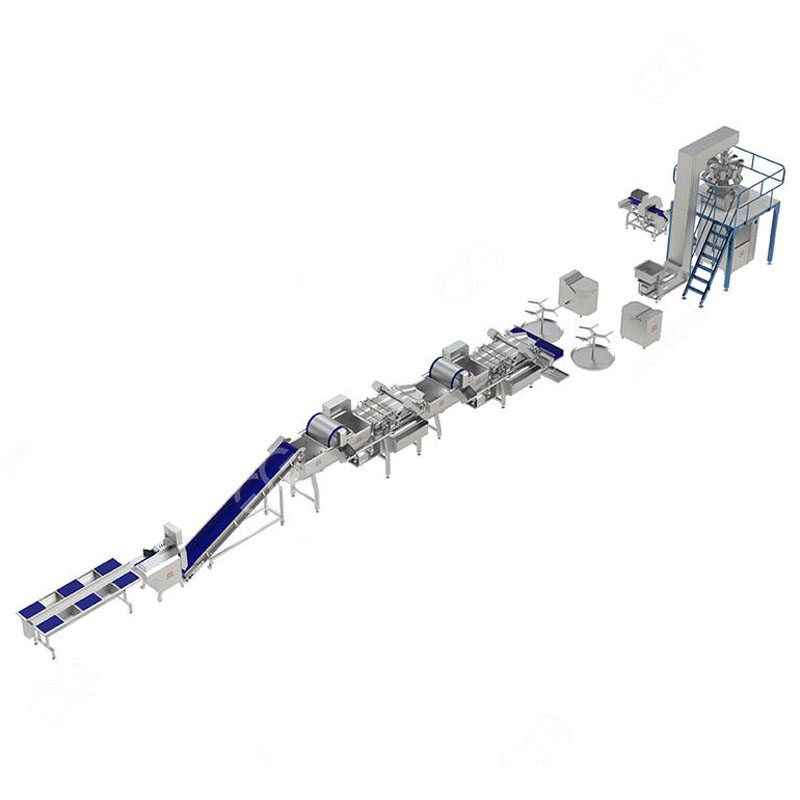

Vegetable Processing Solution with Washing and Sorting System

Product introduction of Vegetable Processing Solution

Vegetable processing solution is a fully automated washing system designed for vegetable washing line, fruit cleaning line, and food processing industry applications.

The system integrates bubble washing, high-pressure spraying, brushing, vibration cleaning, and water recycling filtration. It ensures multi-stage deep cleaning for vegetables and fruits of different shapes and sizes.

With stainless steel structure and intelligent conveyor control system, it delivers stable cleaning performance and supports large-scale industrial production.

Working principle

Step 1: Material Feeding
Vegetables and fruits are conveyed into washing tank automatically.

Step 2: Bubble Washing Process
High-pressure air bubbles lift and roll materials for deep cleaning.

Step 3: Brushing Cleaning
Rotating brushes remove stubborn dirt and surface impurities.

Step 4: Spray Rinsing
Clean water spraying removes pesticide residues and fine particles.

Step 5: Filtration & Recycling
Water passes through filtration system for reuse.

Step 6: Conveyor Discharge
Clean materials are transported to next processing stage.

Product Parameter Table

Parameter Item	Specification
Mesh Width	800 mm
Conveyor Power	1.5 kW
Water Pump Power	1.5 kW
Air Pump Power	4 kW
Machine Dimension (L×W×H)	6225 mm × 1563 mm × 1328 mm
Machine Weight	810 kg
Capacity	1500-3000 kg/h

Why Choose This Solution

• Fully automated vegetable washing system
• Removes soil, pesticide residue, and impurities
• Suitable for vegetables, fruits, seafood
• Improves hygiene and food safety standards
• Reduces labor and water consumption
• Supports continuous industrial production
• Easy maintenance and cleaning design

Main Features

• Bubble washing system with high-pressure air circulation
• Multi-stage cleaning with spraying and brushing technology
• Adjustable conveyor speed via VFD control system
• Integrated water recycling and filtration system
• Food-grade SUS304 stainless steel construction
• Double cleaning section for deeper impurity removal
• Suitable for vegetables, fruits, onions, seafood
• Energy-saving and water-efficient design
• Continuous automatic operation system
• Easy-to-clean arc angle tank structure

Application Scenarios

For vegetable processing plants

For soil and mud contamination → result: bubble washing removes impurities efficiently.

For fruit cleaning factories

For pesticide residue on fruit surface → result: spraying system ensures safe cleaning.

For onion and root vegetable processing

For uneven surface dirt → result: brushing system improves cleaning depth.

For seafood processing industry

For hygiene risk → result: multi-stage washing improves food safety.

For large-scale food factories

For low efficiency manual washing → result: automatic system increases productivity.

Comparison Module

FAQ

What is vegetable processing solution used for?

It is used for washing vegetables, fruits, onions, and seafood in food factories.

How does bubble vegetable washing machine work?

It uses air bubbles, spraying, and brushing to clean food surfaces.

Can this system remove pesticide residue from fruits?

Yes, it effectively removes pesticide residues using multi-stage cleaning.

What vegetables can be processed in this system?

It can clean cabbage, spinach, celery, apples, strawberries, and more.

Is the vegetable washing system automatic?

Yes, it is a fully automatic conveyor-based cleaning system.

Does the system recycle water?

Yes, it includes a built-in filtration and water recycling system.
