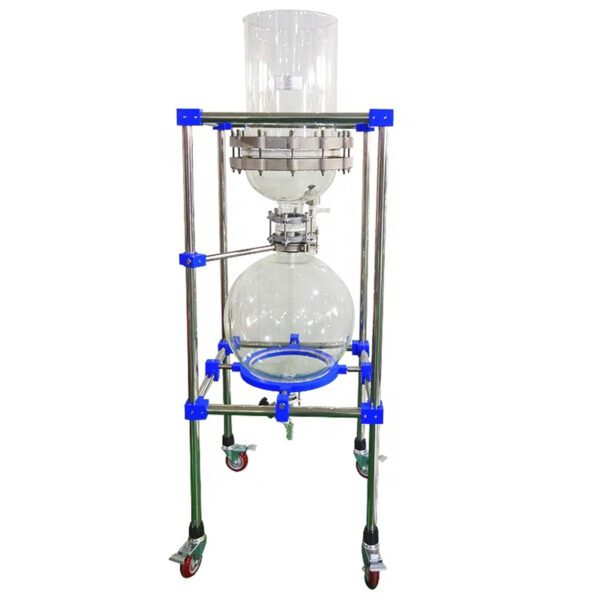

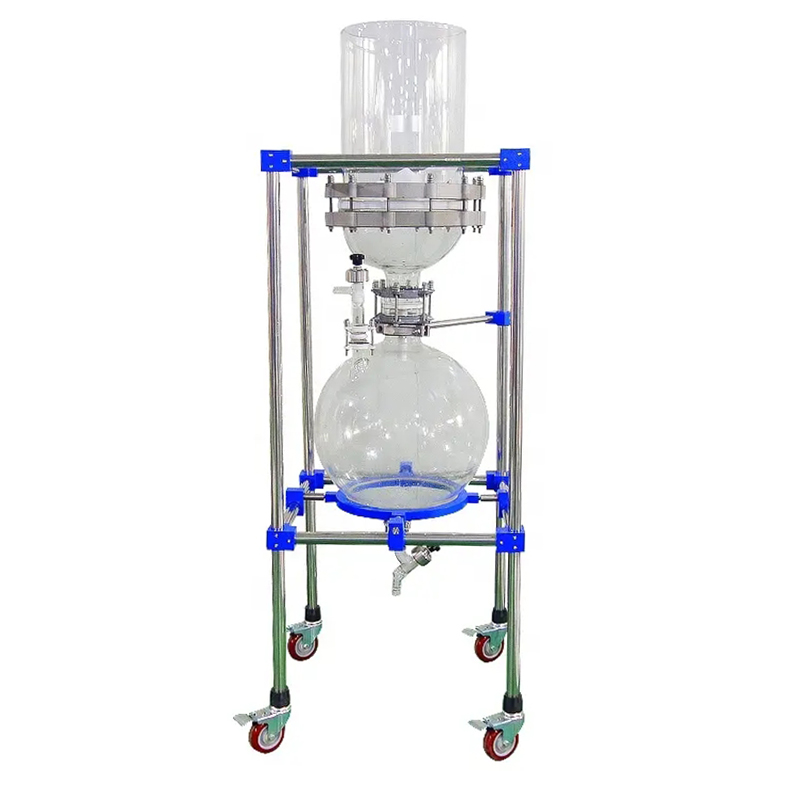

Vacuum nutsche filter is according to the actual needs of the general biological pharmaceutical development company, on the basis of the existing single-layer glass reaction kettle to improve development of derivative products, mainly used for liquid-liquid extraction, and can be used in normal temperature reaction. Through actual use, superior performance, by experts, professor of Chinese academy of sciences, new drug research and development the user’s consistent high praise.
Vacuum Filter Product Features:
1. High quality Borosilicate glass 3.3 with excellent physical and chemical properties for glass parts
2. Perfect sealing property and no dead corner design for charging solution or power more easily
3. One vacuum valve for connecting vacuum pump for processing vacuum filtration
4. Cost-saving modular design and can be customized by clients’ requirements
5. Safe in operation, easy to move around with lockable casters.
Product Model
|
Model-20L
|
Model-50L
|
Model-100L
|
Model-200L
|
Glass Material
|
G3.3 high borosilicate glass
|
G3.3 high borosilicate glass
|
G3.3 high borosilicate glass
|
G3.3 high borosilicate glass
|
Filter Funnel Size
|
φ230*270mm
|
DN300*300mm
|
DN300*420mm
|
DN400*400mm
|
Material and Size ofSeive Plate
|
PTFE/φ230
|
PTFE/φ300
|
PTFE/φ300
|
PTFE/φ400
|
Filtering Device
|
filter paper or filter cloth
|
filter paper or filter cloth
|
filter paper or filter cloth
|
filter paper or filter cloth
|
Spherical Collecting Bottle
|
20L
|
50L
|
100L
|
200L
|
Openings of Collecting Bottle
|
3
|
3
|
3
|
3
|
Suction Port
|
DN50
|
DN80
|
DN80
|
DN80
|
Exhaust Port
|
DN15
|
DN25
|
DN25
|
DN25
|
Discharge Valve
|
DN25
|
DN25
|
DN25
|
DN25
|
Distance Between Discharge Valve and Ground
|
300mm
|
300mm
|
300mm
|
300mm
|
Vacuum Degree
|
-0.098Mpa
|
-0.098Mpa
|
-0.098Mpa
|
-0.098Mpa
|
Frame Material
|
SUS304 movable framework
|
SUS304 movable framework
|
SUS304 movable framework
|
SUS304 movable framework
|
