UF Water Filtration System for Food & Beverage Industry

UF Water Filtration System Product Introduction

UF Water Filtration System for Food & Beverage Industry is a high efficiency ultrafiltration water treatment solution specially designed for food and beverage water purification, ingredient water preparation, production process water treatment, and sanitary industrial water supply applications. Utilizing advanced ultrafiltration membrane separation technology, the system delivers reliable contaminant removal, stable water quality, and continuous industrial operating performance for demanding food and beverage environments.

The system effectively removes suspended solids, colloids, bacteria, microorganisms, sediment, rust, and fine particles while preserving beneficial minerals where required. Designed to meet strict hygiene and production standards, it is widely used in beverage factories, dairy plants, juice processing, bottled water production, breweries, distilleries, food ingredient preparation, and food manufacturing facilities.

Compared with traditional filtration equipment, this UF system offers higher filtration precision, lower maintenance frequency, stable production output, and flexible integration capability for modern food and beverage production lines.

Food & Beverage Water Challenges

Water quality directly impacts food safety, product taste, process stability, and equipment lifespan.

Common industry challenges include:

• Inconsistent feed water quality

• Microbial contamination risks

• High turbidity and suspended solids

• Membrane fouling and operational downtime

• Scaling in downstream equipment

• Strict hygiene and sanitary compliance requirements

• High cleaning and maintenance costs

• Need for stable continuous production water

Conventional filtration systems often struggle to balance sanitary design, filtration precision, and industrial operating efficiency.

Our Solution

Our UF Water Filtration System for Food & Beverage Industry combines membrane filtration technology, sanitary engineering design, intelligent automation, and industrial reliability into one complete purification platform.

Main advantages include:

• Food grade ultrafiltration technology

• High precision membrane separation

• Stable process water production

• Continuous industrial operation

• Intelligent PLC control options

• Reduced maintenance requirements

• Modular system configuration

• Hygienic sanitary design

The system supports safe, efficient, and reliable water purification across diverse food and beverage applications.

System Configuration

Typical system configuration may include:

• Raw water storage tank

• Feed transfer pump

• Multi media sand filter

• Activated carbon filter

• Water softening unit optional

• Precision cartridge filtration

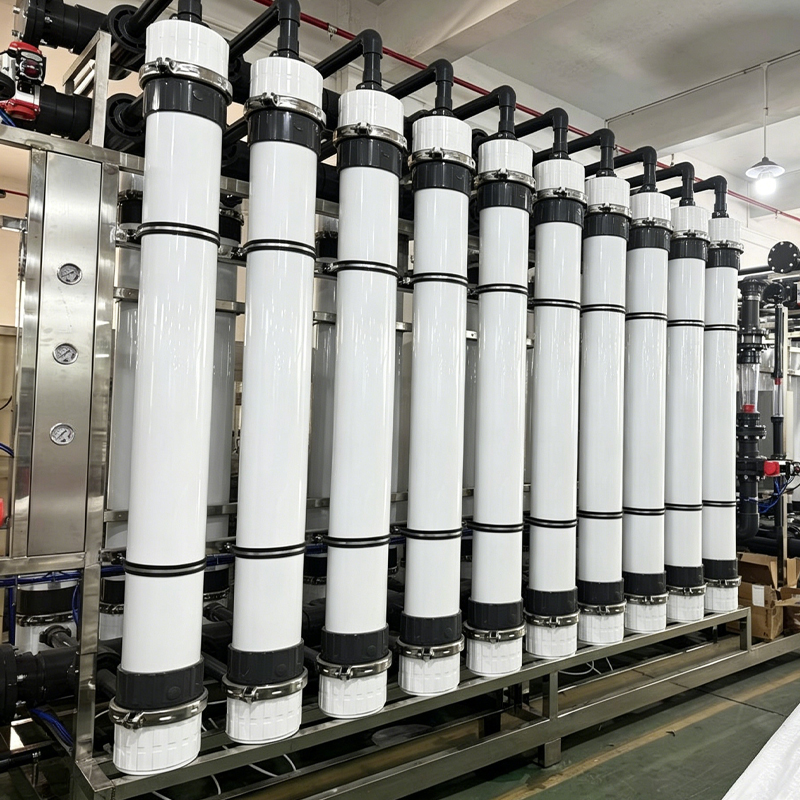

• Food grade UF membrane module

• Automatic backwash system

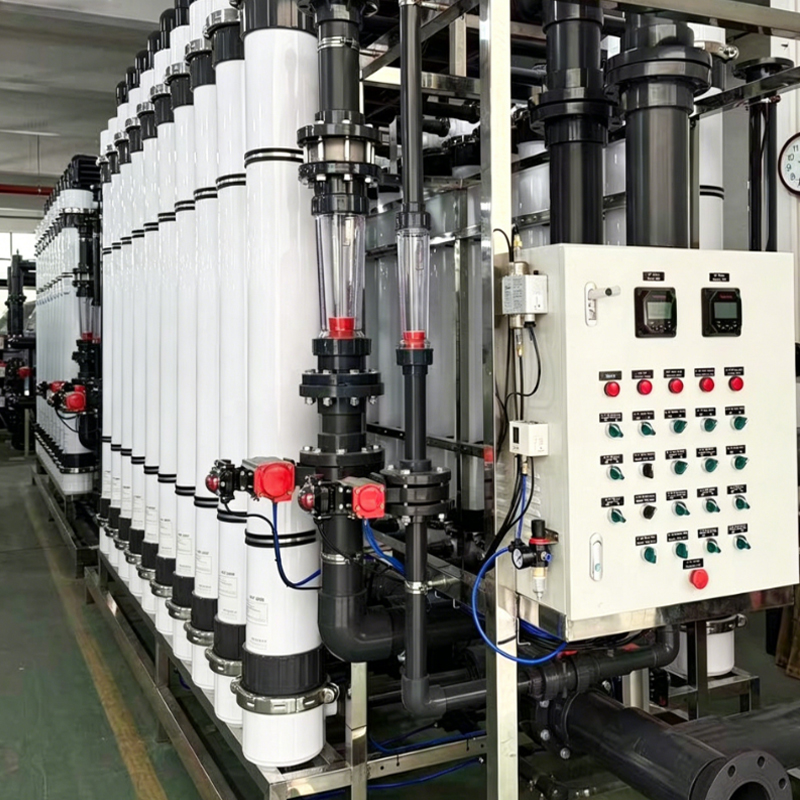

• PLC control cabinet

• HMI touch screen interface

• Pressure, flow, conductivity, and turbidity monitoring instruments

• CIP cleaning system

• UV sterilizer optional

• Ozone sterilization optional

• Product water storage tank

The modular skid mounted structure supports convenient installation, transportation, expansion, and maintenance.

Working Principle

Raw water enters the pretreatment section where larger particles and impurities are reduced through sand, carbon, and cartridge filtration.

The pretreated water then enters the UF membrane module. Ultrafiltration membranes remove bacteria, suspended solids, colloids, fine particles, and contaminants.

Purified water is transferred to storage or directly supplied to food and beverage production processes.

Automatic flushing, backwash, and cleaning functions maintain membrane performance and improve operational stability.

Why Choose This Food & Beverage UF System

Selecting the right water treatment system is essential for production quality and operational efficiency.

Our system provides:

• Food grade membrane filtration performance

• Stable purified water quality

• High removal efficiency for microbial contaminants

• Low maintenance operation

• Sanitary industrial construction

• Flexible customization capability

• Intelligent monitoring and control

• Reliable long term operating stability

Compared with conventional systems, this solution provides better filtration consistency, stronger sanitary protection, and lower lifecycle operating costs.

Product Advantages

Food Grade Water Purification Design

Designed specifically for sanitary food and beverage environments with hygienic components and reliable water treatment performance.

High Precision UF Membrane Technology

Advanced ultrafiltration membranes provide efficient removal of suspended solids, microorganisms, bacteria, and colloidal contaminants.

Stable Continuous Operation

Suitable for continuous industrial production with stable flow rate and reliable water quality output.

Intelligent Automation Support

Optional PLC and HMI systems simplify monitoring, alarm management, parameter adjustment, and operational control.

Flexible Engineering Customization

System capacity, materials, automation level, and configuration can be customized according to project requirements.

Technical Specifications

Item	Specification
Product Name	UF Water Filtration System for Food & Beverage Industry
System Type	Food Grade Ultrafiltration Water Treatment System
Technology	Ultrafiltration Membrane Separation
Processing Capacity	1 T/H to 100 T/H Optional
Recommended Capacity	5 T/H to 60 T/H
UF Membrane Type	Hollow Fiber UF Membrane
Membrane Material	PVDF / PES / PAN Optional
Filtration Precision	0.01–0.1 Micron
Bacteria Removal Rate	≥99.99%
Suspended Solids Removal	≥99%
Turbidity Reduction	≤0.2 NTU
Operating Pressure	0.1–0.6 MPa
Recovery Rate	90%–98%
Feed Water Temperature	5°C–45°C
Feed Water pH Range	2–13
Pretreatment	Sand + Carbon + Cartridge Filter
Pump Material	Food Grade SS304 / SS316
Control System	PLC + HMI Touch Screen Optional
Monitoring Functions	Flow / Pressure / Conductivity / Turbidity / Temperature
Cleaning Method	Backwash + Automatic Flush + CIP Cleaning
CIP System	Automatic / Manual Optional
Frame Material	SS304 / SS316 Stainless Steel
Pipe Material	Food Grade SS304 / SS316 / UPVC
Voltage	220V / 380V / 415V / Customized
Frequency	50Hz / 60Hz
Automation Level	Semi Automatic / Fully Automatic
Protection Grade	IP54 / IP65 Optional
Installation Type	Skid Mounted / Modular
Design Service Life	10–15 Years

Optional Configurations

• UV sterilization module

• Ozone sterilization system

• Mineral adjustment unit

• Remote monitoring platform

• Dual stage UF configuration

• Containerized system design

• Energy saving VFD control

• Sanitary pipe upgrade

• Heat resistant membrane upgrade

Application Scenarios

Suitable for:

• Bottled water production

• Beverage manufacturing plants

• Dairy processing factories

• Juice and soft drink production

• Brewery and distillery applications

• Food ingredient preparation

• Sauce and condiment processing

• Milk and dairy water treatment

• Functional beverage production

• Food processing utilities

Engineering Advantages

Engineered for sanitary industrial environments.

Core strengths include:

• Food grade membrane engineering

• Stable filtration performance

• High hygiene standard design

• Reduced fouling tendency

• Continuous production compatibility

• Intelligent automation capability

• Flexible modular scalability

• Reliable long term durability

Capacity Options

Available system ranges include:

1 T/H to 10 T/H compact food processing systems

10 T/H to 30 T/H medium beverage production systems

30 T/H to 60 T/H large industrial food water systems

60 T/H to 100 T/H customized high flow purification systems

FAQ

1. What contaminants can this UF system remove?

It removes bacteria, suspended solids, colloids, sediment, microorganisms, algae, and fine particles.

2. Is this system suitable for food and beverage production?

Yes. It is specifically designed for food grade water treatment applications.

3. Can the system support continuous production?

Yes. The equipment is designed for stable continuous industrial operation.

4. Is automatic control available?

Yes. PLC and touch screen automation options are available.

5. Can the system be customized?

Yes. Capacity, materials, voltage, sanitary standards, and automation level can be customized.

6. Which industries commonly use this system?

Widely used in bottled water, dairy, juice, brewery, distillery, beverage, and food processing industries.

7. Is CIP cleaning available?

Yes. Manual and automatic CIP cleaning systems are available.

8. Why choose this UF water filtration system?

It provides high precision food grade filtration, stable water quality, intelligent operation, and reliable industrial performance.



Contact us to get your quotation now.

Get in touch with our engineering team.
