Centrifuge

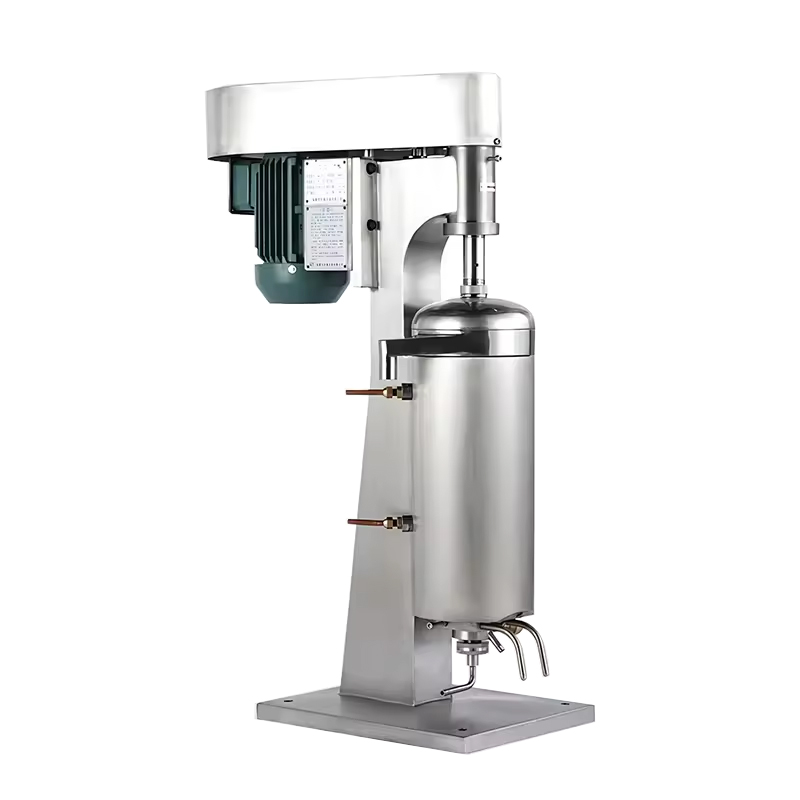

Tubular Centrifuge High Speed Centrifuge for Blood Separation
- The Tubular Centrifuge is a kind of small tubular centrifuge for schools, laboratories, scientific research institutes and other industries.
- lt is suitable for solid-liquid separation with low concentration, small particle size, high viscosity and small ratio between two kinds of media.
- The box of this machine is made of stainless steel, and contact material is 316L stainless steel.
$8,600.00
CompareTechnical Parameters of the Tubular Centrifuge
| Structure type | Round box floor type | Inner diameter of drum | 76mm |
| Rotating speed | 20000r/min | Outlet diameter | Φ38mm |
| Volume of drum | 2L | Inlet diameter | Φ10mm |
| Throughput | 50～200L/h | Power | 1.5kW, 380V/50Hz |
| Water supply capacity | 500L/h | Weight | 180kg |
| Effective length of drum | 490mm | Dimensions | 650×380×1150mm |
- The Tubular Centrifuge is a kind of small tubular centrifuge for schools, laboratories, scientific research institutes and other industries.
- lt is suitable for solid-liquid separation with low concentration, small particle size, high viscosity and small ratio between two kinds of media.
- The box of this machine is made of stainless steel, and contact material is 316L stainless steel.
- Auto-control
- Continuous operation
- Operation safety
- Compact size
- Save manpower
Based on 0 reviews
Be the first to review “Tubular Centrifuge High Speed Centrifuge for Blood Separation”
Related products
-
Centrifuge

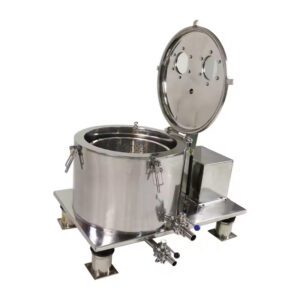

Industrial Centrifuge Machine Stainless Steel Vertical Centrifuge
