Thin Sheet Plasma Cutting Supplier for Precision Fabrication

Thin Sheet Plasma Cutting Product Introduction

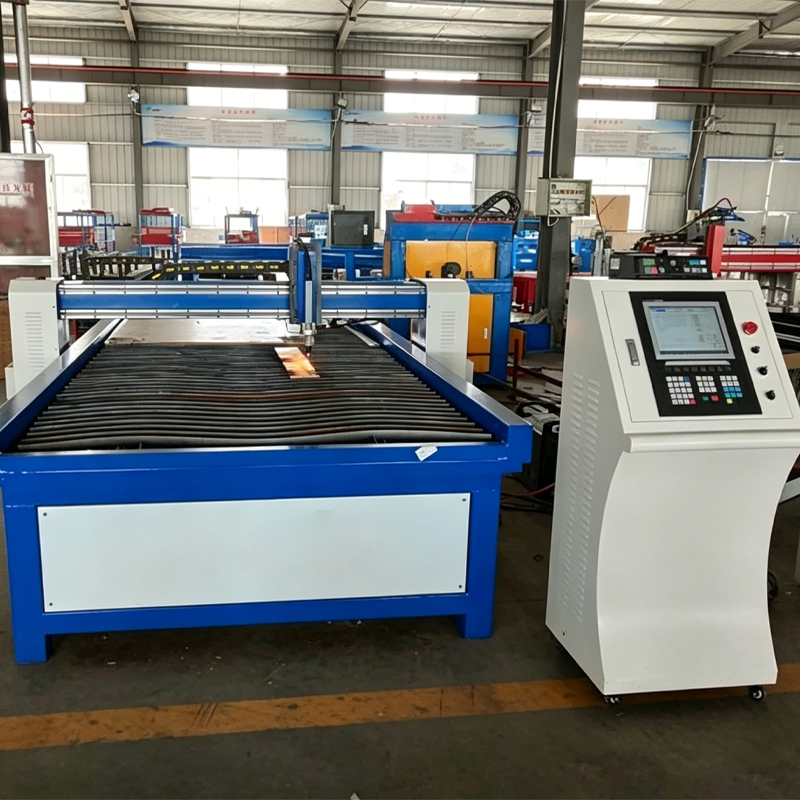

The Thin Sheet Plasma Cutting Supplier for Precision Fabrication is an advanced CNC plasma cutting solution specially designed for thin sheet metal processing, precision fabrication workshops, HVAC manufacturing plants, electrical cabinet factories, kitchen equipment fabrication companies, advertising signage manufacturers, automotive component suppliers, and customized sheet metal engineering industries. Combining intelligent CNC motion control technology, precision plasma arc systems, servo transmission architecture, automatic torch height adjustment, and industrial nesting software, the equipment delivers highly accurate and efficient thin sheet cutting performance for demanding industrial production environments.

This precision plasma cutting machine is widely used for thin carbon steel sheet cutting, galvanized sheet fabrication, stainless steel panel processing, aluminum sheet contour cutting, electrical enclosure manufacturing, ventilation duct production, decorative metal fabrication, precision cabinet manufacturing, industrial sheet component production, and lightweight metal engineering projects. The machine supports high-speed contour processing while maintaining stable edge smoothness, dimensional consistency, and clean cutting quality required for precision fabrication industries.

The equipment adopts a reinforced industrial machine frame integrated with high-precision linear guide rail systems, intelligent servo motion assemblies, industrial plasma power technology, automatic arc voltage adjustment systems, and precision contour interpolation software. The overall system improves thin sheet processing stability, contour repeatability, thermal consistency, and workshop productivity for continuous precision metal fabrication applications.

Thin Sheet Fabrication Challenges

• Thin sheet materials are highly sensitive to thermal deformation during cutting

• Traditional cutting methods reduce edge smoothness on lightweight materials

• High-speed sheet processing requires stable motion synchronization systems

• Precision fabrication projects demand accurate contour repeatability

• Thin galvanized sheets require controlled plasma arc stability

• Manual contour positioning lowers industrial production efficiency

• Complex sheet metal designs require intelligent CNC interpolation technology

• Material waste increases operating costs during precision fabrication

• Uneven sheet surfaces affect contour consistency and dimensional accuracy

• Large-scale sheet production workshops require continuous industrial processing stability

Advanced Thin Sheet Plasma Cutting Technology

• Intelligent plasma arc systems improve edge smoothness during thin sheet processing

• Precision CNC motion systems improve contour repeatability for lightweight materials

• Automatic torch height control maintains stable plasma distance on thin sheet surfaces

• Servo-driven transmission systems improve positioning accuracy during high-speed operations

• Intelligent contour interpolation improves processing quality for complex metal components

• Smart nesting software improves sheet material utilization efficiency

• Industrial guide rail systems improve motion stability during precision fabrication

• Automatic compensation systems improve contour consistency on thin sheet materials

• Precision arc voltage control improves thermal stability during lightweight metal cutting

• Intelligent cutting parameter optimization improves fabrication reliability and edge quality

Main Equipment Configuration

The Thin Sheet Plasma Cutting Supplier for Precision Fabrication mainly includes:

• Heavy-duty CNC plasma cutting table

• Industrial precision CNC controller

• High-performance plasma power supply

• Precision servo motor transmission system

• Automatic torch height controller

• Reinforced welded steel machine structure

• Industrial linear guide rail assembly

• Precision rack and pinion transmission

• Intelligent CAD/CAM nesting software

• Industrial touch screen operation interface

• Plasma cutting torch assembly

• Automatic lubrication system

• Electrical control cabinet

• Industrial cable drag chain system

Optional configurations available:

• Water table dust suppression platform

• Industrial smoke extraction system

• Rotary tube cutting attachment

• Precision bevel contour cutting system

• Dual torch processing module

• Flame cutting integration system

• Thin stainless steel processing platform

• Customized precision fabrication dimensions

Precision Thin Sheet Processing Workflow

Thin Sheet Material Loading

Galvanized sheets, stainless steel panels, aluminum sheets, carbon steel plates, and lightweight industrial sheet materials are positioned onto the CNC plasma cutting platform.

Intelligent CNC Drawing Import

Fabrication drawings are imported into the CNC controller for contour generation, automatic nesting optimization, and processing coordination.

Precision Position Calibration

The machine automatically calibrates contour positioning, sheet alignment, cutting coordinates, and motion synchronization parameters.

High Precision Plasma Processing

The plasma system automatically controls contour speed, plasma current, torch height, and cutting parameters according to sheet thickness and fabrication complexity.

Finished Precision Fabrication

Processed sheet components are manufactured with smooth contour edges, stable dimensional consistency, optimized assembly precision, and reliable welding preparation quality suitable for precision industrial fabrication applications.

Core Advantages for Precision Fabrication Workshops

• Precision contour processing improves thin sheet fabrication consistency

• Intelligent plasma systems improve edge smoothness and surface quality

• Servo motion systems improve contour repeatability during high-speed production

• Smart nesting software reduces sheet metal waste and production costs

• Automatic torch control improves contour quality on thin sheet materials

• Heavy-duty machine structures improve industrial operational durability

• Intelligent CNC systems improve contour synchronization during precision fabrication

• Stable plasma arc systems improve thin sheet cutting reliability

• Flexible CNC programming supports customized sheet fabrication projects

• High-speed plasma processing improves industrial workshop productivity

Technical Specifications

Item	Specification
Product Name	Thin Sheet Plasma Cutting Supplier for Precision Fabrication
Processing Technology	CNC Plasma Thermal Cutting
CNC Control System	Industrial Precision CNC Controller
Working Area	1300×2500mm / 1500×3000mm / 2000×4000mm
Machine Structure	Reinforced Heavy-Duty Welded Frame
Plasma Power Supply	45A / 63A / 100A / 120A Optional
Thin Carbon Steel Cutting Thickness	0.5–12mm
Stainless Steel Cutting Thickness	0.5–10mm
Aluminum Cutting Thickness	0.5–8mm
Galvanized Sheet Thickness	0.5–10mm
Maximum Travel Speed	25000mm/min
Recommended Cutting Speed	500–18000mm/min
Positioning Accuracy	±0.10mm
Repeat Position Accuracy	±0.02mm
Torch Height Control	Automatic THC System
Torch Lifting Distance	≤120mm
Motion Transmission	Precision Rack And Pinion
Drive System	Industrial Servo Motor
Guide Rail Structure	Precision Linear Guide Rail
Arc Voltage Adjustment	Automatic
Supported File Formats	DXF / DWG / NC
CAD/CAM Software	Intelligent Nesting Software
Cooling Method	Air Cooling
Table Structure	Industrial Blade Cutting Table
Optional Table Type	Water Table
Voltage	220V / 380V / 415V
Frequency	50Hz / 60Hz
Installed Power	6KW–25KW
Lubrication System	Automatic Central Lubrication
Smoke Extraction Interface	Available
Optional Functions	Tube Cutting / Flame Cutting / Bevel Cutting
Industrial Applications	Thin Sheet Processing / Precision Fabrication / HVAC Manufacturing

Precision Fabrication Features

• Precision contour interpolation improves thin sheet component consistency

• Intelligent plasma control improves edge smoothness for lightweight materials

• Servo synchronization systems improve contour repeatability during high-speed operations

• Automatic motion compensation improves dimensional consistency on thin sheets

• Stable plasma arc systems improve contour quality during lightweight fabrication

• Intelligent nesting optimization improves material utilization efficiency

• Precision guide rail systems improve motion coordination for industrial fabrication

• Smart contour processing improves assembly preparation quality

• Heavy-duty industrial architecture improves continuous operational reliability

• Intelligent CNC coordination improves industrial precision fabrication efficiency

Engineering Advantages

• Precision contour processing improves thin sheet assembly consistency

• Smart nesting systems reduce sheet fabrication costs

• Intelligent plasma systems improve lightweight metal processing stability

• Stable servo motion systems improve contour synchronization for precision fabrication

• Automatic torch height systems improve processing quality on thin sheet materials

• Heavy-duty machine structures improve workshop operational durability

• Precision contour calibration improves industrial manufacturing consistency

• Flexible CNC systems support customized precision fabrication projects

• Intelligent processing workflows improve industrial production efficiency

• Industrial plasma systems improve productivity for precision fabrication industries

Typical Fabricated Products

• HVAC ventilation ducts

• Electrical control cabinets

• Stainless steel kitchen panels

• Industrial metal enclosures

• Precision machine covers

• Advertising signage panels

• Elevator decorative panels

• Thin sheet engineering brackets

• Industrial ventilation accessories

• Customized lightweight metal components

Expanded Application Scenarios

• HVAC duct manufacturing workshops

• Electrical cabinet production factories

• Kitchen equipment fabrication plants

• Elevator decorative panel workshops

• Industrial signage manufacturing companies

• Precision sheet metal processing facilities

• Stainless steel engineering factories

• Advertising letter fabrication workshops

• Industrial enclosure manufacturing plants

• Automotive lightweight component workshops

• Industrial ventilation fabrication facilities

• Smart equipment housing manufacturers

• Customized sheet metal engineering workshops

• Industrial appliance fabrication companies

• Metal furniture production workshops

Industry Applications

• HVAC manufacturing industry

• Precision sheet metal industry

• Electrical cabinet manufacturing industry

• Stainless steel fabrication industry

• Advertising signage industry

• Industrial equipment manufacturing industry

• Automotive component industry

• Ventilation engineering industry

• Metal enclosure manufacturing industry

• Customized fabrication industry

Frequently Asked Questions

1. What materials can this thin sheet plasma system process?

The equipment supports galvanized sheets, thin carbon steel sheets, stainless steel panels, aluminum sheets, and multiple lightweight industrial metal materials.

2. Why is precision contour control important for thin sheet fabrication?

Precision contour control improves dimensional consistency, edge smoothness, and assembly quality during lightweight sheet metal manufacturing.

3. How does automatic torch height control improve thin sheet cutting quality?

Automatic THC systems maintain stable plasma arc distance and improve contour consistency on thin and uneven sheet materials.

4. What are the advantages of servo-driven plasma systems for precision fabrication?

Servo systems improve positioning accuracy, contour repeatability, motion stability, and high-speed processing capability.

5. Can the machine process thin galvanized sheets for HVAC fabrication?

Yes. The equipment is specially designed for precision thin sheet processing and HVAC duct fabrication applications.

6. Why is intelligent nesting important in precision sheet metal workshops?

Smart nesting software improves material utilization efficiency and reduces production waste and operating costs.

7. Is the equipment suitable for continuous industrial sheet production?

Yes. The machine is designed for continuous industrial precision fabrication and high-volume sheet processing environments.

8. What products can this thin sheet plasma system manufacture?

The system supports ventilation ducts, control cabinets, decorative panels, machine covers, signage panels, engineering brackets, and customized lightweight metal components.

9. How does precision plasma processing improve fabrication quality?

Precision contour cutting improves edge smoothness, dimensional accuracy, and assembly preparation quality for industrial applications.

10. Which industries commonly use thin sheet plasma cutting systems?

Industries including HVAC manufacturing, electrical cabinet production, precision sheet fabrication, signage manufacturing, and industrial engineering widely use these systems.
