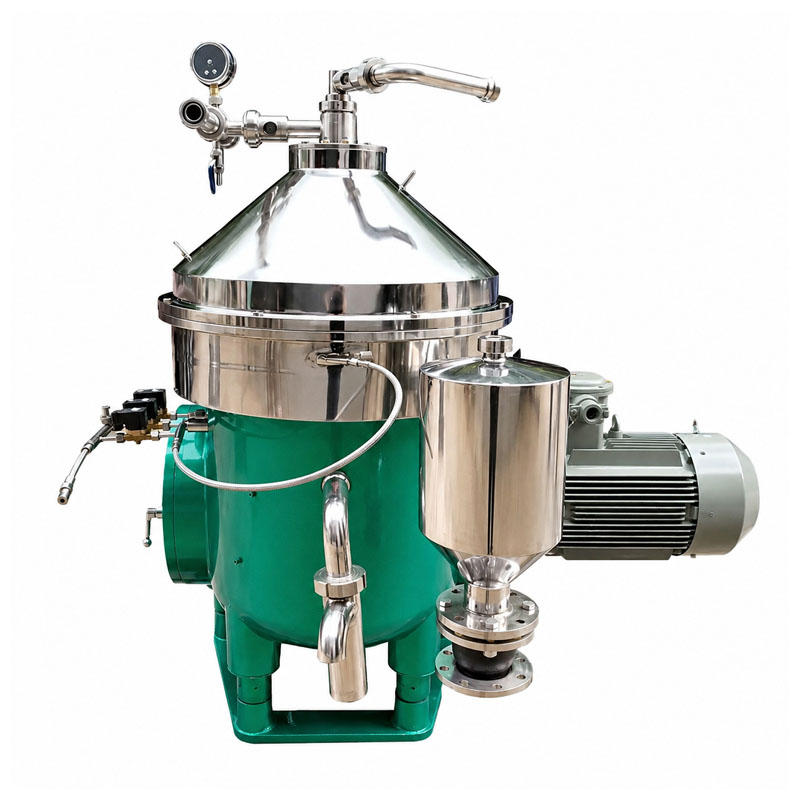

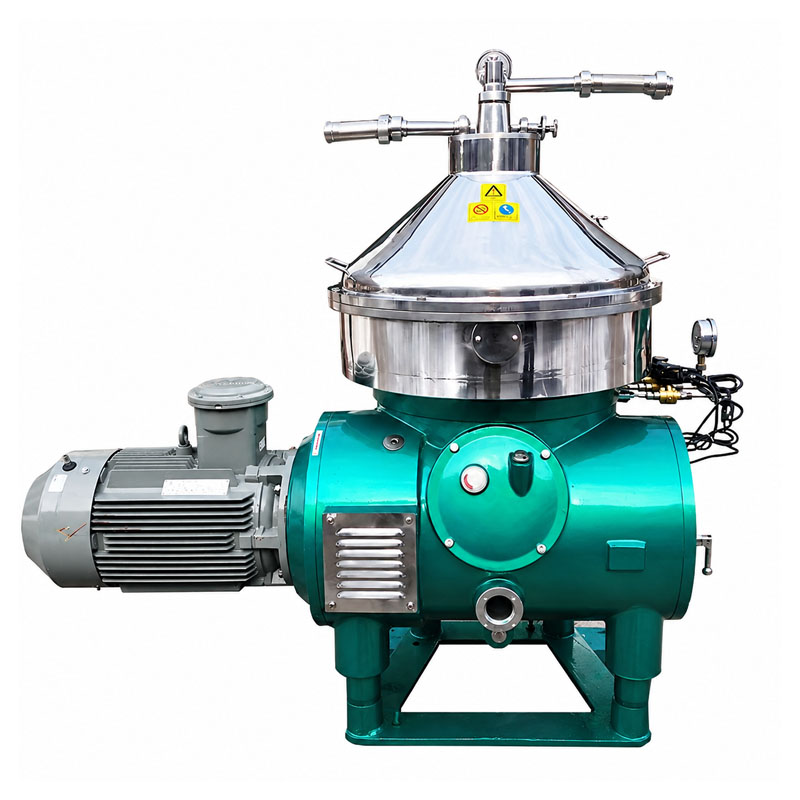

Stainless Steel Separator for Skim Milk Production Line

Product introduction of Stainless Steel Separator

The Stainless Steel Separator is a high-performance centrifugal separation equipment designed for dairy processing plants and food industries. It separates cream, skim milk, and solid impurities through advanced centrifugal technology and disc stack structure. With hygienic stainless steel construction, efficient separation performance, and reliable operation, the separator is widely used for milk skimming, cream recovery, dairy liquid clarification, and whey processing. It supports continuous production with excellent separation accuracy and helps dairy manufacturers improve product quality, processing efficiency, and raw material utilization.

Working principle

The Stainless Steel Separator works based on centrifugal separation technology.

Milk or dairy liquid enters the rotating drum and passes through multiple high-speed rotating discs. Due to density differences:

• Heavy solid particles move toward the outer edge of the drum.
• Cream droplets move toward the center area.
• Separated liquid phases are discharged through different outlets.

The disc stack reduces the settling distance of particles and increases the separation surface area, improving separation speed and efficiency. Depending on the application, the equipment can perform milk cream separation, liquid clarification, or liquid-solid separation.

Working Process of Stainless Steel Separator

Raw Milk Feeding
↓
Whole milk enters the Stainless Steel Separator through the inlet system and is evenly distributed into the high-speed rotating drum.

High-Speed Centrifugal Separation
↓
The rotating drum generates strong centrifugal force, separating milk components according to density differences.

Disc Stack Separation
↓
The milk passes through multiple disc stacks, which enlarge the separation area and accelerate the separation of cream, skim milk, and solid particles.

Cream and Skim Milk Separation
↓
Light components such as cream move toward the center outlet, while heavier skim milk moves toward the outer separation area.

Solid Particle Clarification
↓
Suspended solids and impurities are collected at the largest diameter area of the drum for removal.

Separated Product Discharge
↓
Cream, skim milk, or clarified dairy liquid is discharged through dedicated outlets and transferred to downstream processing equipment.

Cleaning and Maintenance
↓
After production, the equipment can be opened for inspection and cleaned through hygienic cleaning procedures to maintain reliable dairy processing performance.

Product Parameter Table

Parameter	Specification
Equipment Type	Stainless Steel Separator
Application	Milk, Cream, Dairy Liquid Separation
Processing Capacity	10 t/h
Drum Speed	6,000 r/min
Separation Factor	10,500 g
Equivalent Settling Area	86.5 × 10⁷ cm²
Motor Power	22/30 kW
Operating Mode	Continuous Separation
Material	Stainless Steel
Dimensions (L×W×H)	1850 × 1550 × 2050 mm

Main Features

• High efficiency centrifugal separation ensures stable dairy processing performance and quality
• Stainless steel construction provides hygienic operation and corrosion resistance protection
• Advanced disc stack design improves separation efficiency and processing capacity significantly
• Automatic driven disc system ensures reliable continuous separation operation performance
• Efficient cream separation technology enhances milk fat recovery during processing
• Compact structure reduces installation space requirements for dairy processing facilities
• Flexible clarification function removes solid particles from dairy liquid effectively
• Manual opening design allows convenient inspection and equipment maintenance procedures
• Low energy consumption design improves operational efficiency during continuous production processes
• Suitable for milk cream separation and various dairy processing applications

Application Scenarios

Milk Cream Separation

The Stainless Steel Separator is widely used in dairy plants to separate cream from whole milk and produce standardized skim milk products.

Skim Milk Production

The equipment helps milk processing factories reduce milk fat content and prepare high-quality skim milk for further dairy applications.

Yogurt Manufacturing

The separator improves yogurt production by clarifying milk ingredients and ensuring stable raw material quality before fermentation.

Cheese Milk Processing

The equipment supports cheese factories by purifying milk and improving consistency of cheese production materials.

Whey Processing

The separator is applied in whey treatment systems to remove impurities and recover valuable dairy components efficiently.

Dairy Beverage Production

The machine provides clarification and purification for milk-based beverages, improving product stability and processing quality.

Why Choose This Stainless Steel Separator?

✓ Excellent Dairy Separation Performance

The advanced centrifugal design provides efficient separation of cream, skim milk, and suspended solids.

✓ Hygienic Food Processing Design

Stainless steel construction ensures clean operation and long service life in dairy environments.

✓ Improved Product Quality

The separator helps dairy manufacturers achieve stable milk composition and cleaner liquid products.

✓ Reduced Production Loss

Efficient cream recovery improves raw material utilization and reduces valuable dairy component waste.

✓ Flexible Processing Applications

One machine can handle milk separation, clarification, whey treatment, and dairy purification processes.

✓ Reliable Industrial Operation

The robust structure supports continuous operation in demanding dairy production conditions.

✓ Easy Maintenance

The inspection-friendly structure allows convenient checking and maintenance of internal components.

✓ Suitable for Modern Dairy Plants

The equipment integrates easily with existing milk processing systems and automated production lines.

Purchasing Guide

When selecting a Stainless Steel Separator, consider:

• Processing capacity required by the dairy plant
• Separation purpose, such as cream separation or clarification
• Type of dairy product being processed
• Required automation level
• Material and hygiene requirements
• Integration with existing milk processing equipment

Choose the correct model according to production volume, separation accuracy, and final product requirements.

FAQ

Q1: What is a Stainless Steel Separator?
A1: A Stainless Steel Separator is a centrifugal separation machine used to separate liquids and solids or different liquid phases in food and dairy processing.

Q2: What is the main application of this separator in dairy processing?
A2: It is mainly used for milk cream separation, skim milk production, clarification, and dairy liquid purification.

Q3: How does the separator separate cream from milk?
A3: The machine uses centrifugal force to separate cream and skim milk according to differences in density between milk components.

Q4: What dairy products can use this equipment?
A4: It can be used for milk, cream, yogurt base, cheese milk, whey, and dairy beverages.

Q5: Why does the separator use disc stacks?
A5: Disc stacks increase separation area and shorten particle settling distance, improving separation efficiency.

Q6: Is the equipment suitable for large dairy factories?
A6: Yes, it is designed for medium and large dairy processing plants requiring continuous separation.

Q7: What materials are used in the separator?
A7: Product-contact components are made from stainless steel to meet food hygiene and corrosion resistance requirements.

Q8: Can the separator remove solid impurities from milk?
A8: Yes, it can perform clarification operations to remove suspended solids and unwanted particles.

Q9: Does the machine support continuous operation?
A9: Yes, the separator is designed for stable continuous processing in industrial dairy production lines.

Q10: Can the Stainless Steel Separator be customized?
A10: Yes, options such as discharge systems, automation controls, and processing configurations can be customized according to customer needs.
