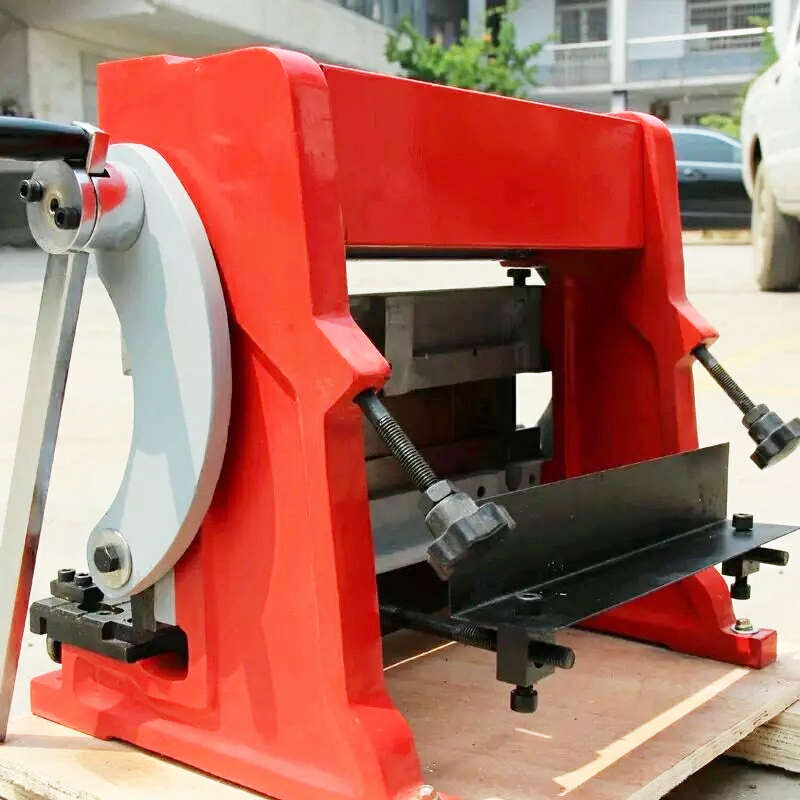

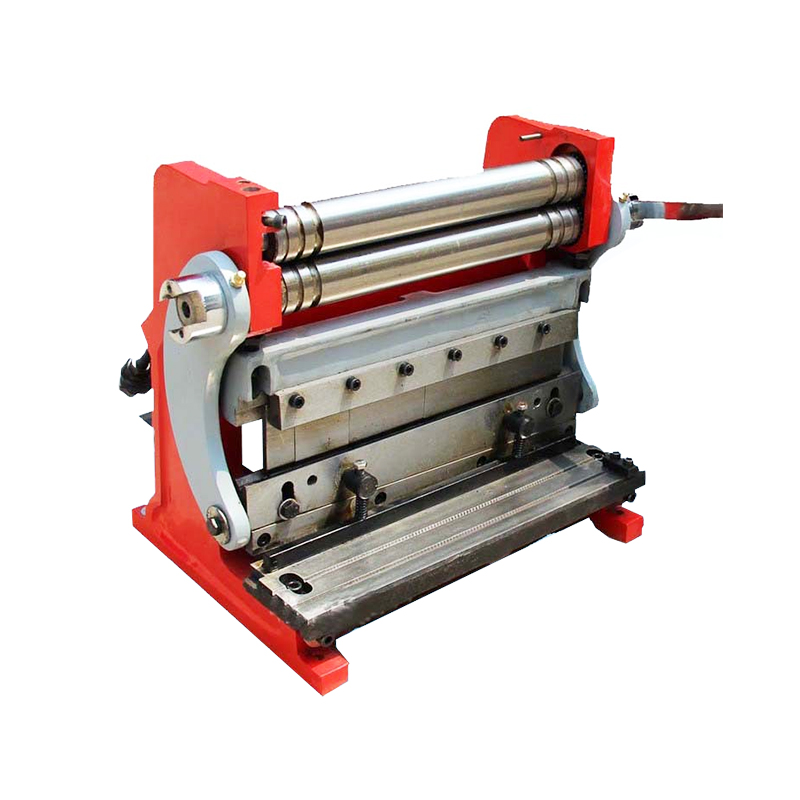

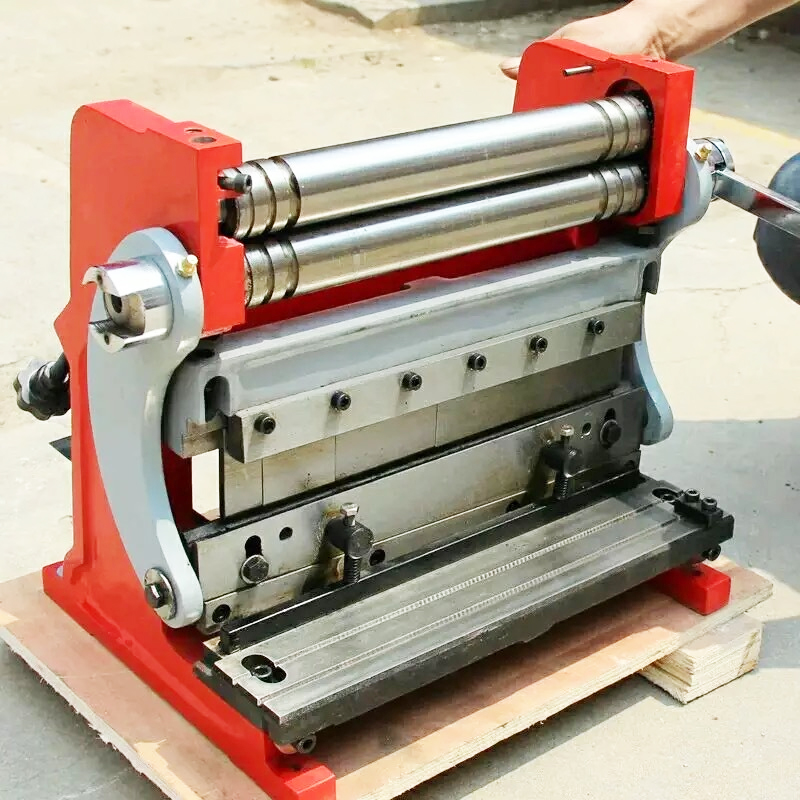

Small 610 plate rolling machine, bending machine, shearing machine, three-in-one machine tool, multi-function manual shearing and folding machine tool
feature of product:
1. The blade can be replaced
2. Standard Tailgate
3. With two positioning handles
4. Can cut mild steel and other metal sheets
5. It can bend box-shaped or flat-shaped workpieces
6. The mixing roller is equipped with forming grooves
Main application: Manual cutting, folding and rolling three-in-one machine
It is suitable for shearing, bending and rolling of steel plates, copper and aluminum plates.
$966.00
ComparePlate rolling machine main feature:
l German structure design, manual, light and simple.
l Shearing machine, bending machine, plate rolling machine, the three machines are integrated into one.
l The bending angle is 90-170°.
l Segmented bending upper die provides a larger operating space for bending work.
l optional bed feet.
|
model |
HSBR-305 |
HSBR-610 |
HSBR-760 |
HSBR-1060 |
HSBR-1320 |
|
Maximum Cut Width |
305mm |
610mm |
760mm |
1067mm |
1320mm |
|
Maximum Shear Thickness |
Steel 1.5mm copper aluminum 3mm |
Steel 1.5mm copper aluminum 3mm |
Steel 1.5mm copper aluminum 3mm |
Steel 1.5mm copper aluminum 3mm |
Steel 1.5mm copper aluminum 3mm |
|
Maximum bending width |
305mm |
610mm |
760mm |
1067mm |
1320mm |
|
Maximum Bending Thickness |
Steel 1.2mm Copper Aluminum 2.5mm |
Steel 1.2mm Copper Aluminum 2.5mm |
Steel 1.2mm Copper Aluminum 2.5mm |
Steel 1.2mm Copper Aluminum 2.5mm |
Steel 1.2mm Copper Aluminum 2.5mm |
|
bend angle |
90～170° |
90～170° |
90～170° |
90～170° |
90～170° |
|
Maximum Coil Width |
305mm |
610mm |
760mm |
1067mm |
1320mm |
|
Maximum Coil Thickness |
Steel 1.2mm Copper Aluminum 2.5mm |
Steel 1.2mm Copper Aluminum 2.5mm |
Steel 1.2mm Copper Aluminum 2.5mm |
Steel 1.2mm Copper Aluminum 2.5mm |
Steel 1.2mm Copper Aluminum 2.5mm |
|
Min roll diameter |
38mm |
38mm |
38mm |
42mm |
56mm |
|
Dimensions |
42×32×40cm |
83×37×50cm |
98×37×55cm |
140×46×65cm |
170×49×71cm |
|
net weight |
83kg |
195kg |
235kg |
340kg |
424kg |
