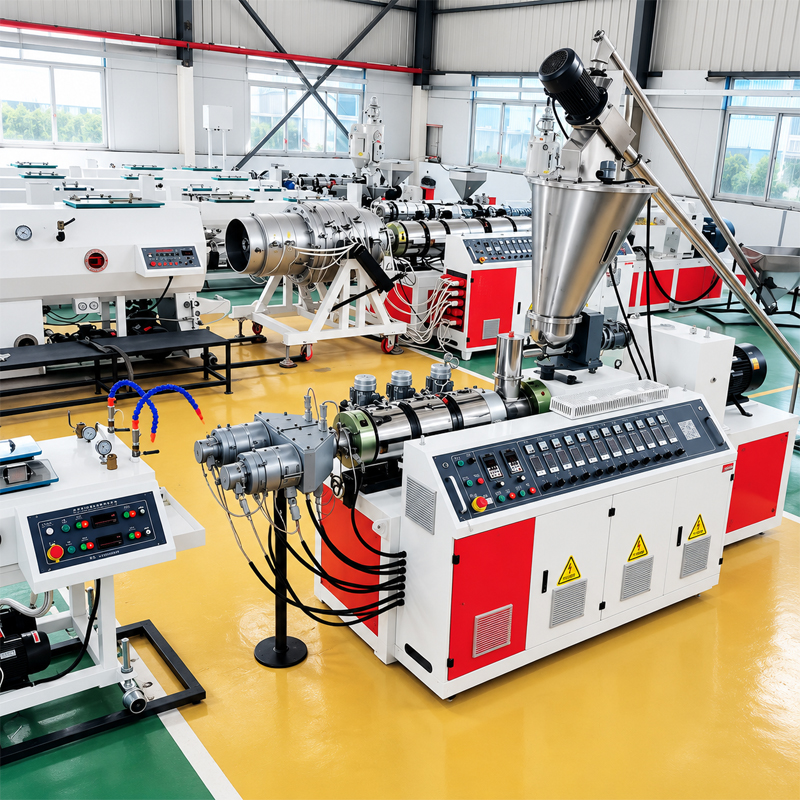

Single Screw Extruder for Plastic Pipe Production

Single Screw Extruder Product Introduction

Single Screw Extruder for Plastic Pipe Production is a complete extrusion solution designed for manufacturing high-quality plastic pipes with stable dimensions and excellent surface finish. The production line integrates extrusion, molding, vacuum calibration, cooling, pulling and cutting systems to achieve continuous automatic pipe production.

Equipped with an optimized single screw extrusion system, precise heating control and reliable drive technology, the machine provides efficient plasticizing performance and uniform material flow. It is suitable for processing various thermoplastic materials including PVC, PE, PP and other plastic compounds.

The complete pipe extrusion line can produce different types of plastic pipes for water supply, drainage, electrical protection, agricultural irrigation and industrial applications. With flexible configuration, easy operation and stable performance, it provides an efficient manufacturing solution for plastic pipe producers.

Industry Pain Points

Plastic pipe manufacturers often require stable production efficiency, accurate pipe dimensions and consistent product quality. Traditional extrusion systems may face problems such as uneven material plasticization, unstable output, poor surface quality and high energy consumption during continuous production.

Our Solution

The Single Screw Extruder provides a reliable solution for plastic pipe manufacturing through optimized screw design, accurate temperature control and integrated downstream equipment. The system ensures stable extrusion pressure, uniform pipe thickness and efficient continuous production while reducing material waste and improving production consistency.

Working Principle

Raw Material Feeding

Plastic materials such as PVC, PE or PP are fed into the extrusion system through the hopper.

Plasticizing and Extrusion

The rotating screw transports, melts and mixes the material under controlled temperature conditions to form a uniform molten plastic flow.

Pipe Forming

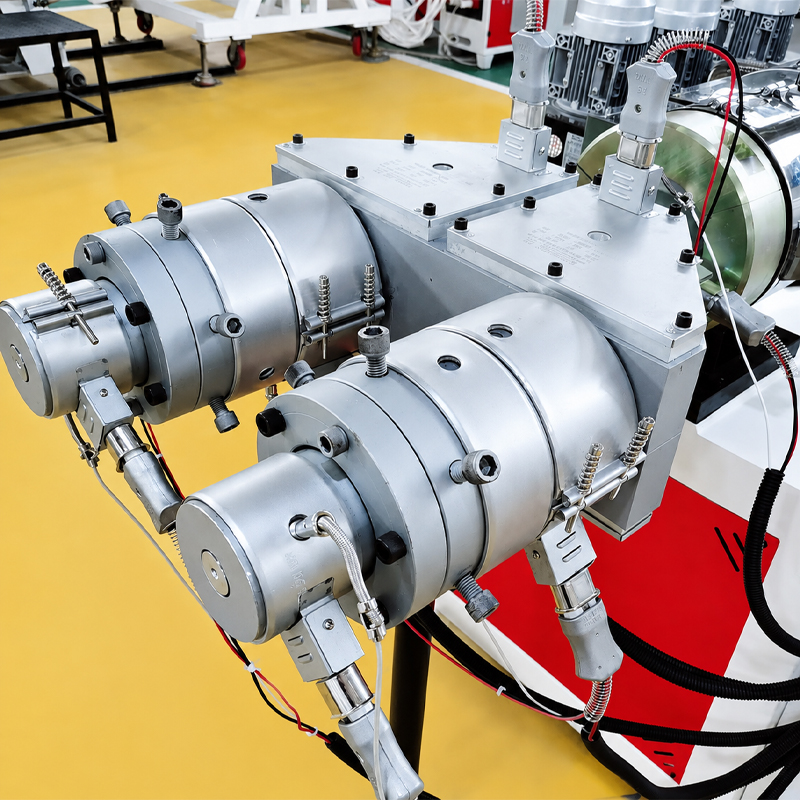

The molten material passes through the extrusion die to form the required pipe shape and diameter.

Vacuum Calibration and Cooling

The pipe enters the vacuum calibration tank where vacuum sizing and cooling water systems ensure accurate dimensions and smooth surfaces.

Pulling and Cutting

The haul-off machine maintains stable production speed, while the cutting system cuts pipes into required lengths.

Pipe Collection

Finished pipes are automatically collected and prepared for packaging or further processing.



Key Features & Advantages

Stable Single Screw Extrusion Performance

The optimized screw structure provides efficient melting, mixing and continuous extrusion for different plastic materials.

Accurate Pipe Dimension Control

Vacuum calibration and cooling systems ensure consistent diameter, wall thickness and product quality.

Wide Material Compatibility

Suitable for PVC, PE, PP and other thermoplastic materials used in various pipe applications.

Complete Production Line Integration

The system combines extrusion, cooling, pulling and cutting equipment for automatic pipe manufacturing.

High Production Efficiency

Continuous operation design improves output capacity and reduces manual intervention.

Easy Operation and Maintenance

The simple structure and reliable components make operation and maintenance convenient.

Flexible Customization

Pipe diameter, production capacity and equipment configuration can be customized according to customer requirements.

Technical Parameters

Parameter	Specification
Equipment Type	Single Screw Extruder for Plastic Pipe Production
Processing Type	Plastic Pipe Extrusion
Applicable Materials	PVC, PE, PP and Thermoplastics
Extrusion Method	Single Screw Extrusion
Production Mode	Continuous Automatic Production
Extrusion System	Single Screw Plasticizing System
Forming System	Precision Pipe Die Head
Calibration System	Vacuum Calibration System
Cooling Method	Water Spray Cooling
Pulling System	Automatic Haul-off Unit
Cutting System	Automatic Pipe Cutting System
Control System	PLC / Temperature Control System
Product Type	Plastic Pipes and Tubes
Application	Water Pipes, Drainage Pipes, Conduits and Industrial Pipes
Customization	Available According to Pipe Size and Production Capacity

Application Scenarios

Water Supply Pipe Production
Used for manufacturing PVC, PE and PP water pipes with stable dimensions and excellent surface quality.

Drainage Pipe Manufacturing
Suitable for producing drainage and sewage pipes for construction and municipal projects.

Agricultural Irrigation Pipe Production
Provides efficient solutions for manufacturing irrigation pipes and agricultural water transportation systems.

Electrical Conduit Production
Used to produce cable protection pipes and electrical conduits for wiring and communication systems.

Gas Pipe Manufacturing
Suitable for producing PE gas pipes requiring high strength and long-term durability.

Industrial Pipe Production
Applied for manufacturing plastic pipes used in chemical, industrial and fluid transportation systems.

Customized Tube Production
Supports customized plastic pipe and tube production according to different specifications and applications.

Construction Material Production
Used for manufacturing plastic pipes widely applied in buildings and infrastructure projects.

Recycled Plastic Pipe Production
Can process recycled plastics to produce reusable plastic pipes with improved material utilization.

Large-Scale Pipe Manufacturing
Provides continuous extrusion solutions for professional plastic pipe production factories.

Industry Applications

Construction Industry
Used for producing plastic pipes applied in building water supply, drainage and infrastructure projects.

Water Treatment Industry
Provides pipes for municipal water supply, wastewater treatment and water management systems.

Agriculture Industry
Supports production of irrigation pipes and agricultural water transportation pipelines.

Electrical Industry
Manufactures protective conduits for power cables and communication systems.

Oil and Gas Industry
Used for producing PE pipelines for gas transportation and energy applications.

Chemical Industry
Suitable for corrosion-resistant plastic pipes used in chemical fluid transportation.

Municipal Engineering Industry
Applied in urban drainage systems, sewage networks and public infrastructure projects.

Plastic Manufacturing Industry
Provides extrusion solutions for PVC, PE and PP pipe manufacturers.

Industrial Equipment Industry
Used for producing customized plastic tubes for machinery and industrial systems.

Environmental Protection Industry
Supports production of plastic pipelines used in recycling and waste treatment systems.





FAQ

1. What materials can this single screw extruder process?

The machine can process PVC, PE, PP and other thermoplastic materials for pipe production.

2. What products can be produced by this extrusion line?

It can produce water pipes, drainage pipes, electrical conduits, irrigation pipes and industrial plastic pipes.

3. What is the advantage of a single screw extruder?

Single screw extruders provide stable extrusion performance, simple operation and reliable production for common plastic materials.

4. Can this machine produce different pipe sizes?

Yes, the production line can be customized according to required pipe diameter, wall thickness and output.

5. Does the line include cooling and cutting systems?

Yes, the complete line can include vacuum calibration, cooling, pulling and automatic cutting units.

6. Is this equipment suitable for PVC pipe production?

Yes, it is widely used for PVC pipe manufacturing in construction and infrastructure industries.

7. Can it process recycled plastic materials?

Yes, the extrusion system can be configured for certain recycled plastic applications.

8. How does the machine ensure pipe quality?

Precise temperature control, stable extrusion pressure and accurate calibration systems ensure consistent pipe quality.

9. What industries use plastic pipe extrusion machines?

They are widely used in construction, agriculture, water supply, electrical and industrial piping industries.

10. Can the production line be customized?

Yes, equipment configuration can be adjusted according to materials, pipe specifications and production requirements.
