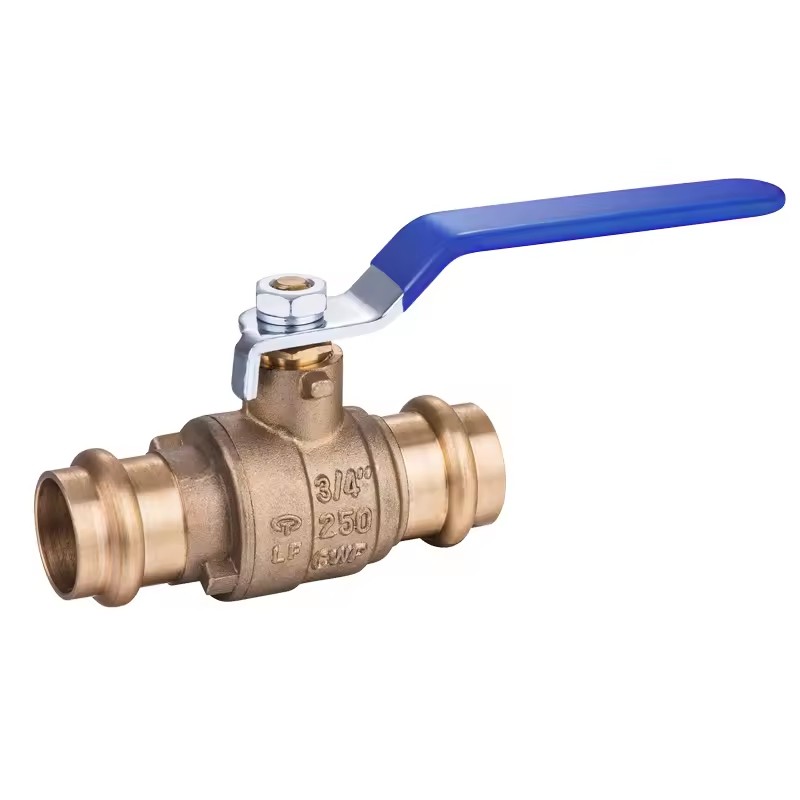

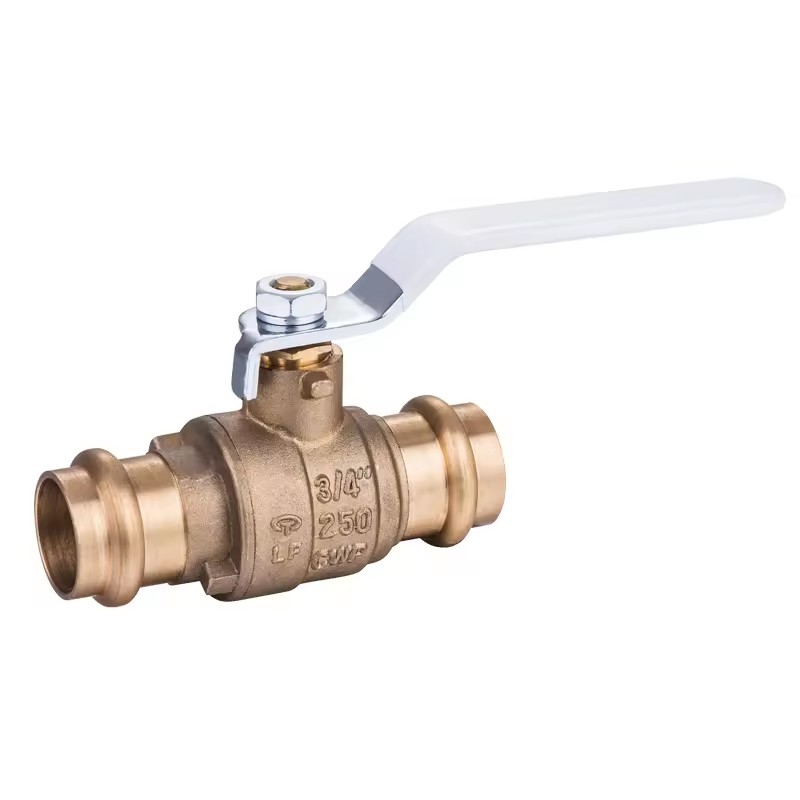

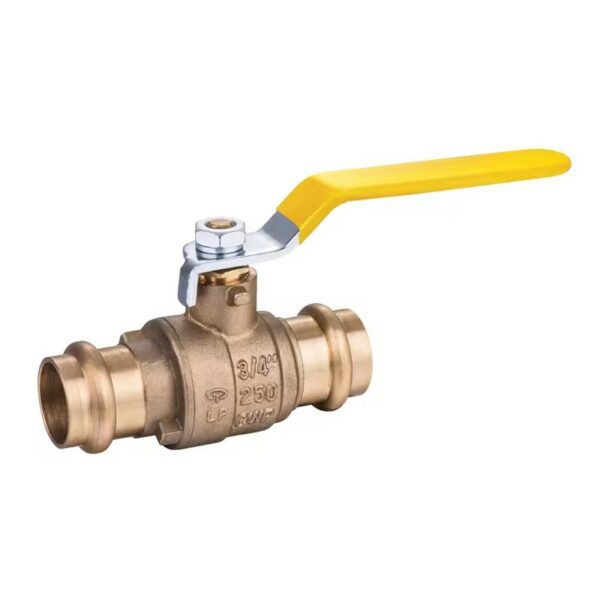

Shut Off Valves Controller 1/2-4” Press End Water Full Port Brass Press Ball Valve
Shut Off Valves Specification
●Full Port
●Forged Brass Body
●PRESS Conform to IAPMO PS117
●Blow Out Proof Stem Design
●Packing Nut & O-RING
●Handle With Vinyl Grip
Performance Rating
●Valve Pressure Rating 250 psi Non-shock Cold Working Pressure
●Max Working Temperature 250° F
$12.50
CompareShut Off Valves Specification
●Full Port
●Forged Brass Body
●PRESS Conform to IAPMO PS117
●Blow Out Proof Stem Design
●Packing Nut & O-RING
●Handle With Vinyl Grip
Performance Rating
●Valve Pressure Rating 250 psi Non-shock Cold Working Pressure
●Max Working Temperature 250° F
|
No.
|
Name
|
Material
|
QTY
|
|
1
|
Body
|
Lead Free Brass
|
1
|
|
2
|
Seat
|
PTFE
|
2
|
|
3
|
Ball
|
Stainless Steel
|
1
|
|
4
|
Packing
|
PTFE
|
1
|
|
5
|
O-Ring
|
EPDM
|
1
|
|
6
|
Stem
|
Brass/Stainless Steel
|
1
|
|
7
|
Handle Nut
|
Plated Steel
|
1
|
|
8
|
Lock Washer
|
Plated Steel
|
1
|
|
9
|
Handle
|
Plated Steel
|
1
|
|
10
|
Packing Nut
|
Brass
|
1
|
|
11
|
O-Ring
|
NBR
|
1
|
|
12
|
Cap
|
Lead Free Brass
|
1
|
|
13
|
O-Ring
|
EPDM
|
2
|
