SemiAutomatic Vision Measuring System XYZ 11-13/16 x7-7/8 x 7-3/32 in.

Model

DZX-3020Z

Drive Method

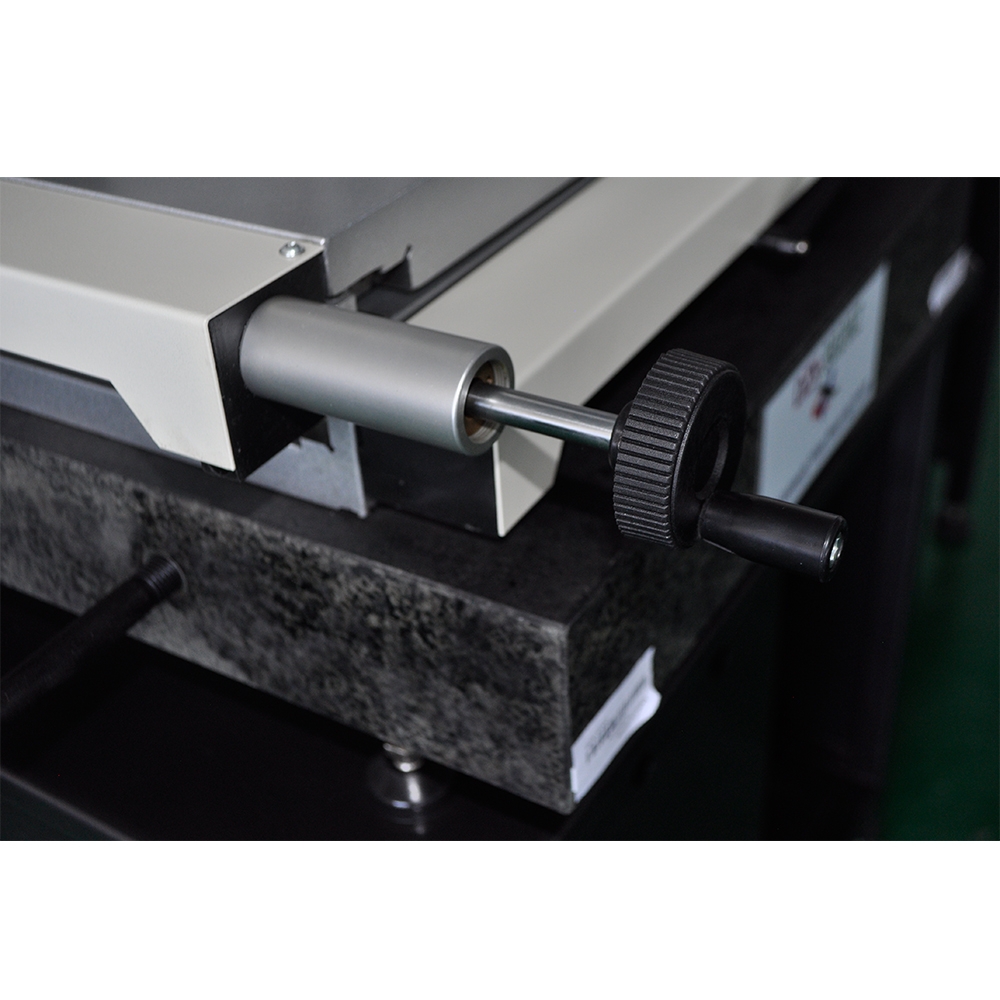

X Axis, Y Axis: manual. Z Axis:automatic

XYZ Travel

11-13/16 ×7-7/8 × 7-3/32 in.

(400 mm × 300 mm × 200 mm)

Dimension

18-57/64 × 25-13/64 × 35-7/16 in.

 (480mm × 640mm × 900 mm)

Weight

180 KG / 397 Lbs.

Maximum Stage Loading

25 KG / 55.1 Lbs.

Measuring

Accuracy

E1X,

E1Y

3＋L/200 µm

E1Z

5＋L/200 µm

**Mechanical accuracy and focus accuracy of Z axis is much related to the surface and material of measured work piece.

Motor

UWC

Linear Encoder Resolution

1µm

Guide

Cross roller guide

Image Detecting Unit

1/3 Inch color CCD camera of high definition

Illumination

Outline light

LED cold light source,256 level directional light, brightness adjustable

Surface light

 LED cold light source，Independent control, 256 level brightness adjustable

Optical Lens

6.5:1 automatic zoom lens

Magnification

Optical magnification: 0.7-4.5X;
Magnification：20-180X

Measuring Software

RationalVue automatic measurement software

Driving System

UWC high speed DC servo system

Warranty

1 year

Worktable

Fine natural green granite, removable stable glass

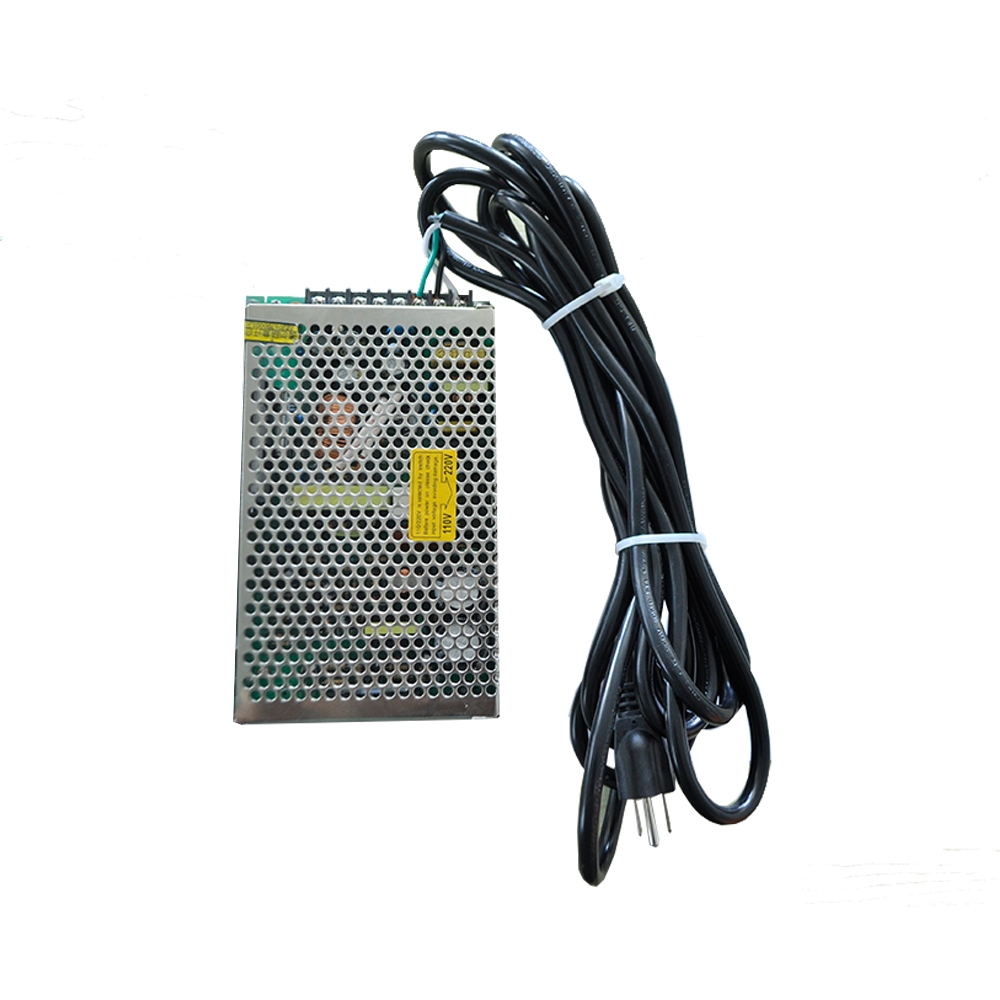

Power Supply

220VAC, 60Hz, 1 phase, 700W
