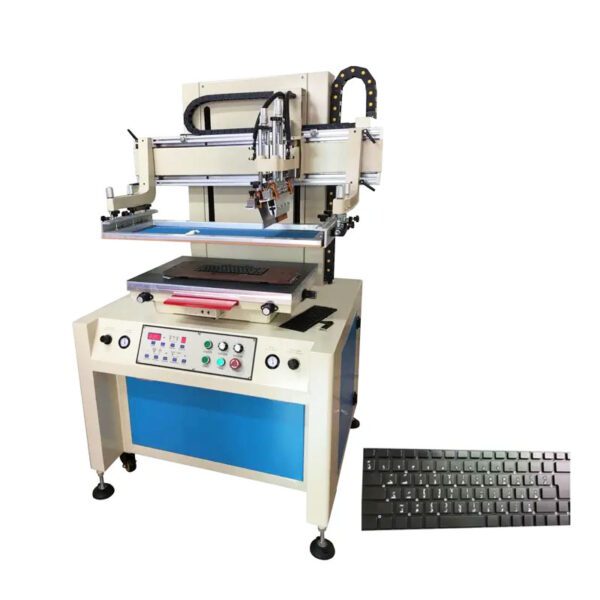

Semi Automatic Keyboard Silk Screen Printing Printer Machine Features:
1.For print computer and laptop keyboard
2.Pneumatic-driven vertical screen mesh lifting
3.The printing head is driven by motor.
4.The printing table is facilitated with X-Y-R fine pitch registration adjustment.
5.The printing stroke and sub- frame are variable adjustable and different sizes of screen frame is acceptable
6.It can be equipped with auto peel-off system in order to get a better printing quality.
7.T-slot, vacuum, or sliding worktable optional.
Color
|
1
|
Worktable Selections
|
T-Slot Worktable System
|
Worktable Size
|
400×700mm
|
Printing Size
|
300x500mm
|
Screen Frame Size
|
400x600mm
|
Max. Substrate Height
|
150mm
|
Max. Printing Speed
|
800pcs/hr
|
Rated Voltage
|
220V 50Hz
|
Dimension(L×W×H)
|
850×1100×1700mm
|
Weight
|
280kg(Approx.)
|
