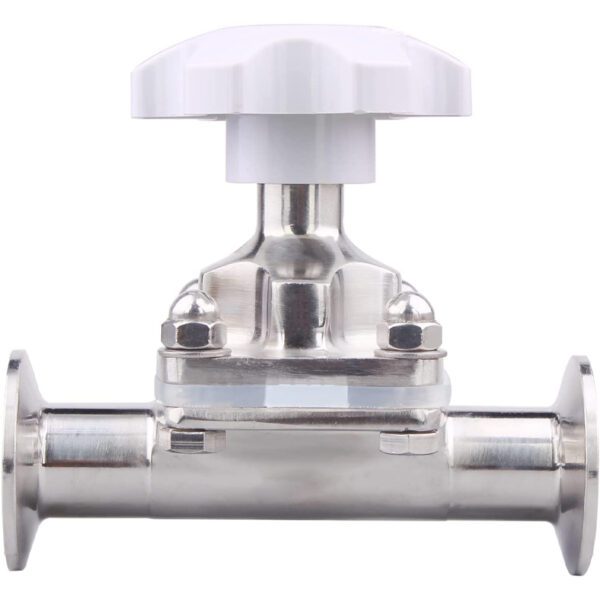

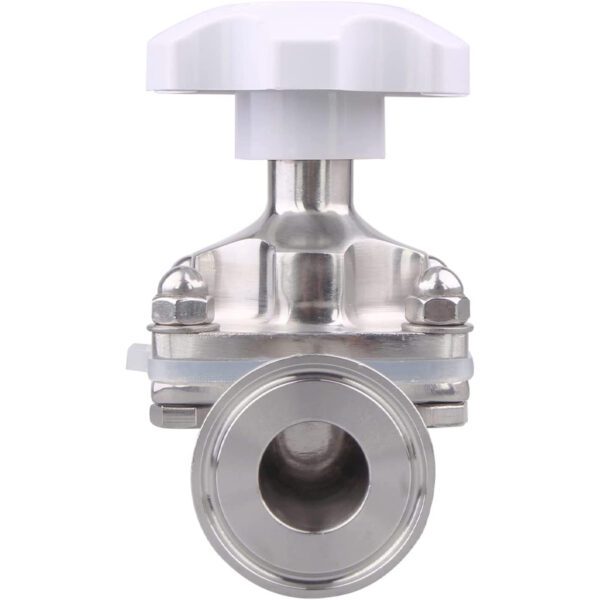

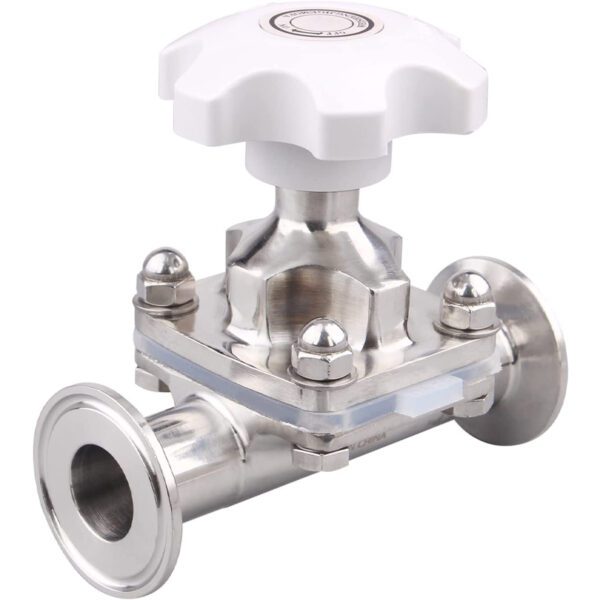

Sanitary diaphragm valve silicone sealed stainless steel 316L, 1.5” three-clamp valve (1 inch tube outer diameter)
- Size:1.5 Inch Tri Clamp, fits 3/4 Inch Tube OD
- Body Material: SS316L; Sealing Material: Silicone; White Cap Material: ABS Plastic
- SS316L diaphragm valve is suitable for controlling ultrapure, sterile, corrosive or abrasive fluids
- The sanitary design allows precise control of the fluid flow rate with low turbulence and minimal back pressure
- Diaphragm valve suits for food and beverage, pharmaceutical, biotechnology, semiconductor industry, etc
$43.00
CompareProduct Description
Control Fluid: Stainless steel diaphragm valve is suitable for controlling ultrapure, sterile, corrosive or abrasive fluids.
Working Principle: This stainless steel diaphragm valve is sealed from harsh fluids by high-quality neutral chemical diaphragms for a variety of applications.
Parameters
| Body Material | SS316L |
| Sealing Material | Silicone |
| White Cap Material | ABS Plastic |
| Medium temperature | -10℃ ~ +150℃ |
| Connection Type | 1.5 Inch Tri-clamp |
| Fits tube OD | 3/4 Inch |
| Working pressure | 1.0Mpa |
| Package Inculde | 1 x Diaphragm Valve |
Application
The stainless steel diaphragm valve can be used in different fields such as food, beverage, pharmaceutical, biotechnology, semiconductor industry, etc.
| Size | 1.5 inch Tube OD, 3/4 inch Tube OD |
|---|
