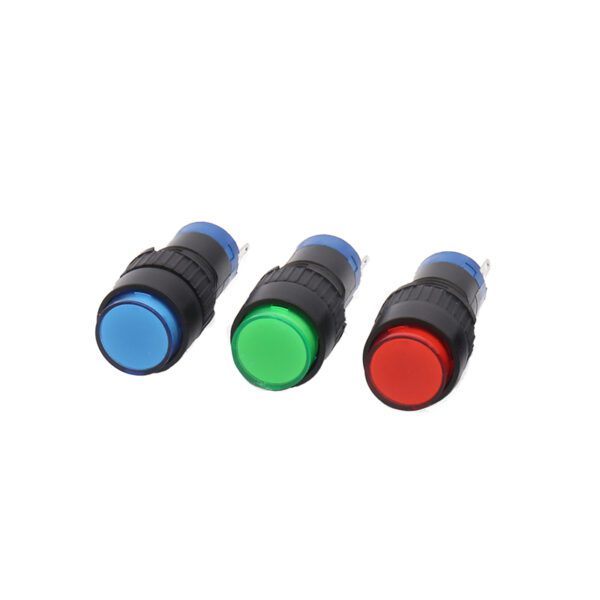

Round Small Button Switch Silver Point 1NC+1NO 5 Pins 12mm Self-Resetting/Self-Locking Button Switch Round/Square/Rectangular 10PCS

Add to wishlist
Compare

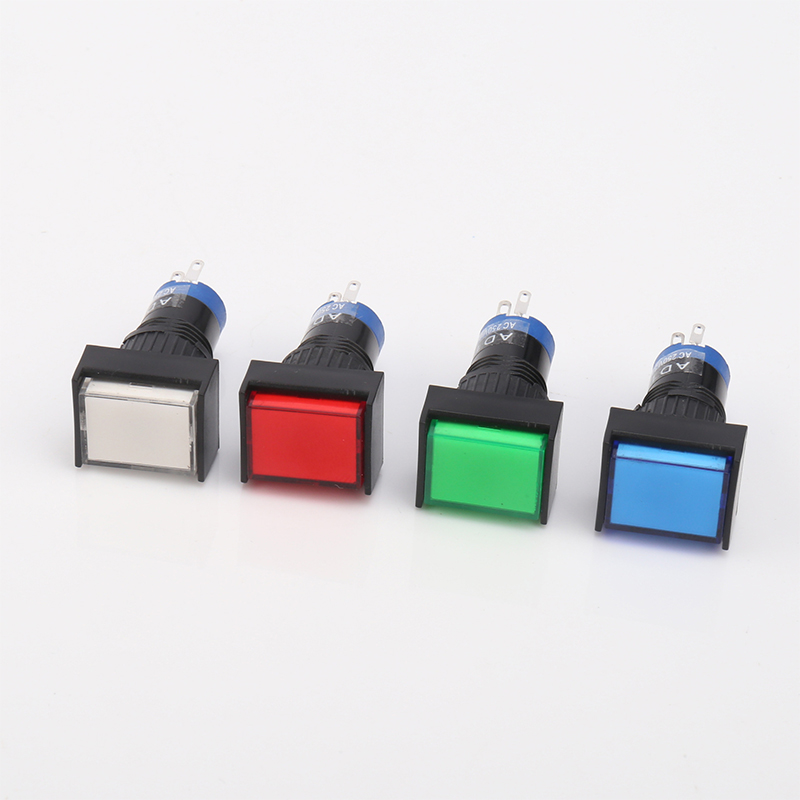

  • Push button switch specifications and varieties are complete. According to the shape of the head, it can be divided into round, square, and rectangular. According to the variety, there are general button switches and illuminated button switches.
  • The push button switch has a beautiful appearance, clear and transparent LED lighting and a unique and reliable internal structure. It can better meet the user’s requirements for panel miniaturization and intensive control.

NOTE: Prices may vary by product model and material.

$31.00

Compare

Button knowledge of Round Small Button Switch

  • Self-reset button: It will bounce back after you let go of it after pressing it.
  • Self-locking button: press to connect, need to press again to disconnect.

Applicable scope of Small Button Switch

  • The push button switch is suitable for devices with AC 50Hz (60Hz) voltage AC/DC 220V, electronic and electrical control circuits, machinery, telecommunications, and medical equipment. As well as various fields such as instruments and meters, it can be used as a supporting tool for control signals and interlocks.
Working temperature -25°C～+55°C (the average temperature within 24 hours does not exceed +35°C)
Working humidity 90%RH (relative humidity is not more than 50% when the temperature exceeds 40°C)
Contact resistance ≤100mΩ
Insulation resistance ≥100m2
Power frequency withstand voltage 1500V AC
Mechanical life General button, button with light: 200,000 times
Self-locking button: 100,000 times
Electrical life General button, button with light: 200,000 times
Self-locking button: 100,000 times
Head protection level IP40
