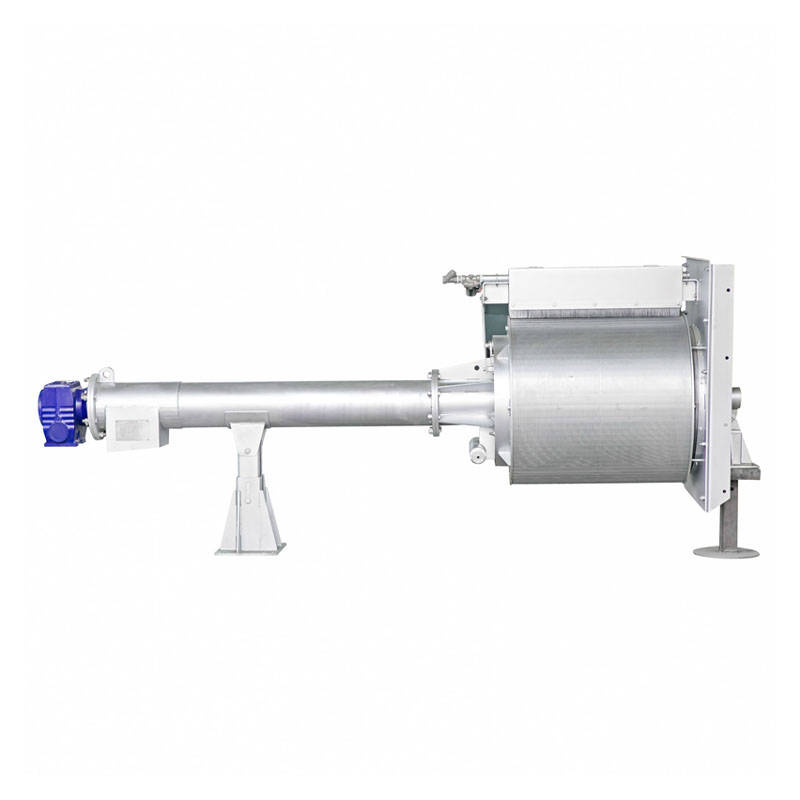

Rotating Drum Screen Separator for Wastewater Treatment
The rotating drum screen separator is a high-efficiency wastewater fine screening system designed for continuous solid-liquid separation. It is widely used in municipal and industrial wastewater treatment, including food processing, paper mills, and urban sewage systems. The equipment effectively removes scum, fibers, and suspended solids from water intake, providing reliable pretreatment performance with low hydraulic loss and stable operation in high-capacity applications.
Compare
Product introduction of Rotating Drum Screen Separator
The rotating drum screen separator, also known as a rotary drum fine screen or wastewater drum filtration system, is designed for precise solid removal in wastewater pretreatment processes.
Wastewater enters the rotating drum at an inclined angle, where fine mesh screening elements intercept suspended solids. The system integrates screening, lifting, washing, and dewatering functions into one continuous operation.
It is suitable for high-precision wastewater treatment applications requiring small screen gaps and stable hydraulic performance.
Working principle
The rotating drum screen separator operates at an inclined angle of approximately 35 degrees.
Wastewater flows into the rotating drum, where fine mesh screens intercept suspended solids, fibers, and scum. As the drum rotates at a constant speed, solids are continuously lifted, washed, and transported by a spiral mechanism.
A built-in spray nozzle and nylon brush system remove debris from the screen surface, ensuring self-cleaning performance. The dewatered solids are then discharged into a container or conveyor system.
This continuous process ensures stable filtration and odor-free operation.
Product Parameter Table
| Drum diameter D (mm) | 2000 |
| Drum length L1 (mm) | 2000 |
| Highest water level H4 (mm) | 1300 |
| Power (kW) | 2.2 |
| Installation angle | 35° |
| Channel depth H1 (mm) | H1=600~3000 |
| Screenings installation height H2 (mm) | Designed based on customer’s request |
Main Features
- Rotating drum screen separator provides continuous fine screening performance
- Stainless steel structure ensures corrosion resistance and long service life
- Self-cleaning system reduces maintenance requirements during operation
- Low hydraulic loss with high efficiency and large treatment capacity
- Compact design suitable for limited installation space
- Integrated functions including screening, lifting, and dewatering
- Spiral lifting system ensures efficient solids discharge
- Spray nozzle and brush system improve automatic cleaning performance
- Stable operation under high-load wastewater conditions
- Suitable for fine screening applications with small mesh gaps
Comparison SEO Section
| Rotating Drum Screen Separator | Static Fine Screen |
|---|---|
| Continuous automatic cleaning | Manual cleaning required |
| High capacity fine screening | Limited efficiency |
| Integrated dewatering system | No dewatering function |
| Stable hydraulic performance | Higher clogging risk |
Application Scenarios
The rotary drum fine screen system is widely used in:
- Municipal wastewater treatment plants
- Urban sewage inlet screening systems
- Industrial wastewater treatment facilities
- Food processing wastewater systems
- Paper and pulp industry wastewater treatment
- Textile and fiber wastewater screening
- High-precision pretreatment engineering systems
Why Choose This System
- High precision fine screening for complex wastewater
- Continuous operation with low hydraulic resistance
- Integrated dewatering and solids handling system
- Durable stainless steel construction for long service life
- Suitable for high-load industrial and municipal systems
- Automatic self-cleaning reduces maintenance cost
FAQ
1.What is a rotating drum screen separator used for?
It is used for fine screening and solid-liquid separation in wastewater treatment systems.
2.does a rotary drum fine screen work?
It separates solids from wastewater using a rotating drum and fine mesh filtration system.
3.Where is a drum screen separator used?
It is used in municipal sewage plants, food industry, paper mills, and industrial wastewater systems.
4.What is the advantage of rotating drum fine screen?
It offers high efficiency fine screening with self-cleaning and low maintenance requirements.
5.Why use a drum screen before wastewater treatment?
It removes fibers and suspended solids to protect downstream treatment equipment.
6.What industries need fine screening equipment?
Industries include municipal sewage, food processing, textile, and paper production.
Contact us to get your quotation now.
Get in touch with our engineering team.
