Chains

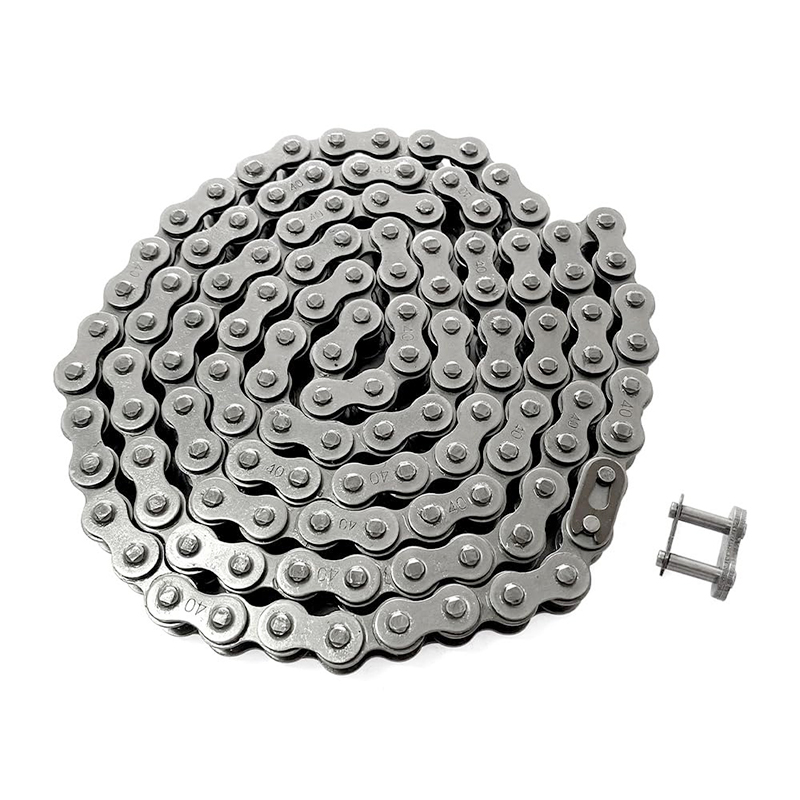

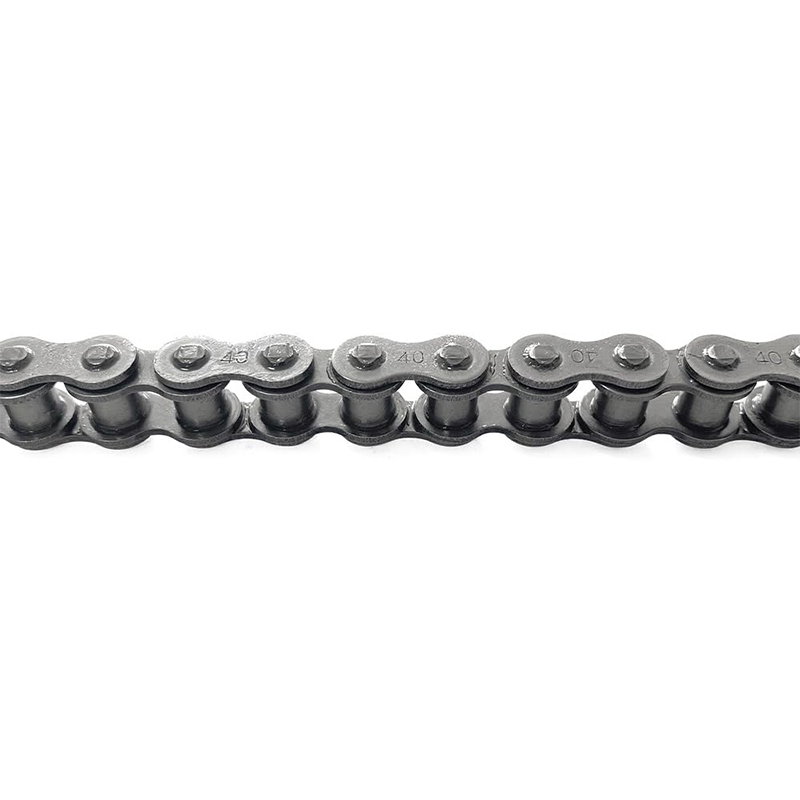

Roller Chain 3 Feet 40Mn Carbon Steel Material with 1 Connecting Link for Home and Industril Chain 72 Links
- Roller Chain with 1 Connecting Link
- Pitch Size: 0.500 Inch
- Plate Thickness: 0.059 Inch
- Roller Diameter: 0.312 Inch
- Package Content : 72 Links/3Feet Length 08A 40 Roller Chain with 1 Connecting Link
- Suitable for Go-karts, Scooters, Mini Bikes Chain Replacements
- Material: Carbon Steel
$15.00

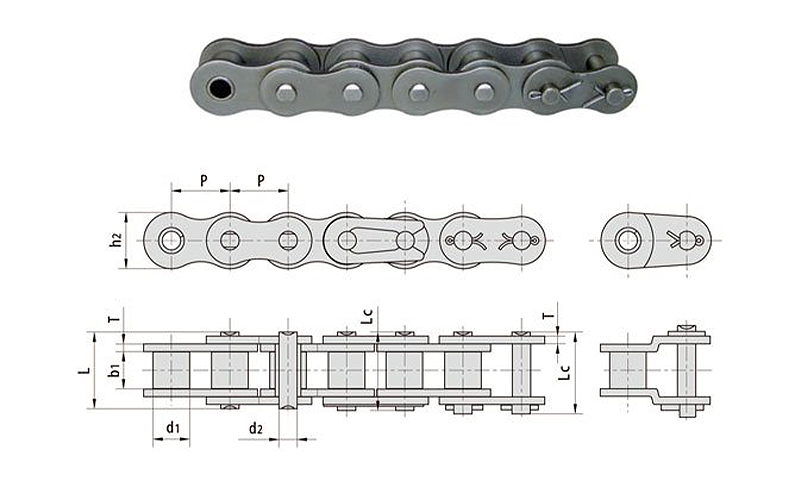

CompareTechnical Parameters of the Roller Chain
| Average Tensile Strength | 4000 lb |
| Pin Diameter | 0.156 Inch |
| Pin Length L Max | 0.654 Inch |
| Pin Length Lc Max | 0.701 Inch |
| Pitch Size | 0.500 Inch |
| Plate Thickness | 0.059 Inch |
| Roller Diameter | 0.312 Inch |
| Weight Per Foot | 0.415 lbs |
| Width Between Inner Plates | 0.309 Inch |
| Material | Carbon Steel |
