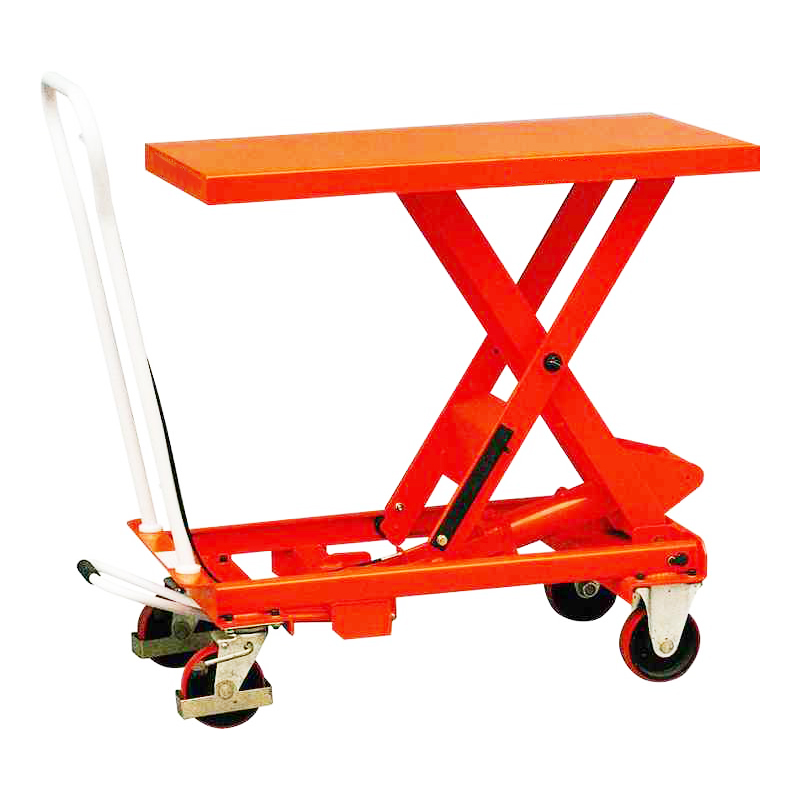

Quick Lift Mobile Scissor Lift Table Manual Hydraulic Table
Lift table with quick lift pump
The unique design of quick lift to increase the efficiency.
Heavy duty range.
New hydraulic system increases safety and protects your goods stepless rate of lowering system remains irrespective of the weight of load.
New design to meet norm EN1570-2009.
$380.00
CompareLift table with quick lift pump
The unique design of quick lift to increase the efficiency.
Heavy duty range.
New hydraulic system increases safety and protects your goods stepless rate of lowering system remains irrespective of the weight of load.
New design to meet norm EN1570-2009.
| Model | Capacity | Table size L×W(mm) | Table height H(mm) | Handle height H(mm) | Wheel Dia. (mm) | Overall size (mm) | Net Weight(kg) |
| Model-250 | 250 | 830×500 | 330-910 | 1100 | Φ125 | 500×1010 | 78 |
| Model-500 | 500 | 1010×520 | 435-1000 | 1130 | Φ150 | 520×1185 | 118 |
| Model-750 | 750 | 1010×520 | 442-1000 | 1130 | Φ150 | 520×1260 | 120 |
| Model-1000 | 1000 | 1010×520 | 445-950 | 1130 | Φ150 | 520×1260 | 137 |
Based on 0 reviews
Be the first to review “Quick Lift Mobile Scissor Lift Table Manual Hydraulic Table”
Related products
-
Lift Tables
Stationary Lift Table Platform Three Scissors Lift Table
Lift Tables are high-quality electronic hydraulic scissor lifts with loading capacities from 1,000KG to 4,000KG, and lifting heights up to 4m.
We also accept customized platform size and lifting height.It can be installed both on the ground and in the pit.
SKU: n/a -
Lift Tables
Lift Tables Platform Electric 2 Ton Small Hydraulic Scissor
1.Loading capacity 1000kg,2000kg,4000kg support customized.
2.Anti pinch fork design:anti pinch fork design,with automatic lubrication bushing at pivot point.
3.Good quality hydraulic pump,stable and powerful when lifting goods,with safety bar device under the table,when the table is falling,it will stop falling when it meets obstacles.
4.The heavy-duty oil cylinder is equipped with a drainage device and a check valve,which can stop the lifting platform from descending when the oil pipe busts.SKU: n/a -
