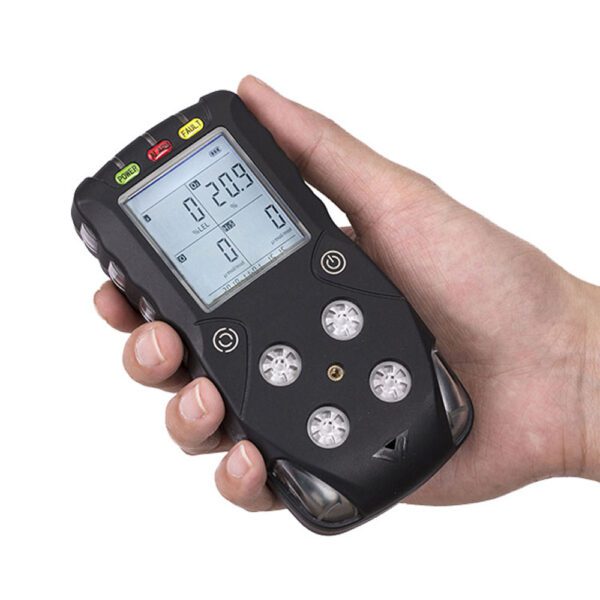

Portable Multi-Gas Detector & 4-Gas Monitor for LEL O2 H2S CO

Add to wishlist
Compare
1. Small size, compact design, easy to carry and handheld;
2. Diffusion type and sampling type gas detection methods are optional;
3. Ingress protection grade IP66, dustproof and waterproof. Invented anti-explosion design, low-temperature resistant design；
4. Special anti-interference PCB design, It will not be interfered with by the interphone in an industrial site；
5. ARM Cortex M3 processor, Stable work & quick reponse when detecting gas leakage. Special design for industry usage；
6. Detection of 4 gases at the same time, detects LEL, O2, CO, H2S；
7. Alarm record function which supports review and USB upload；

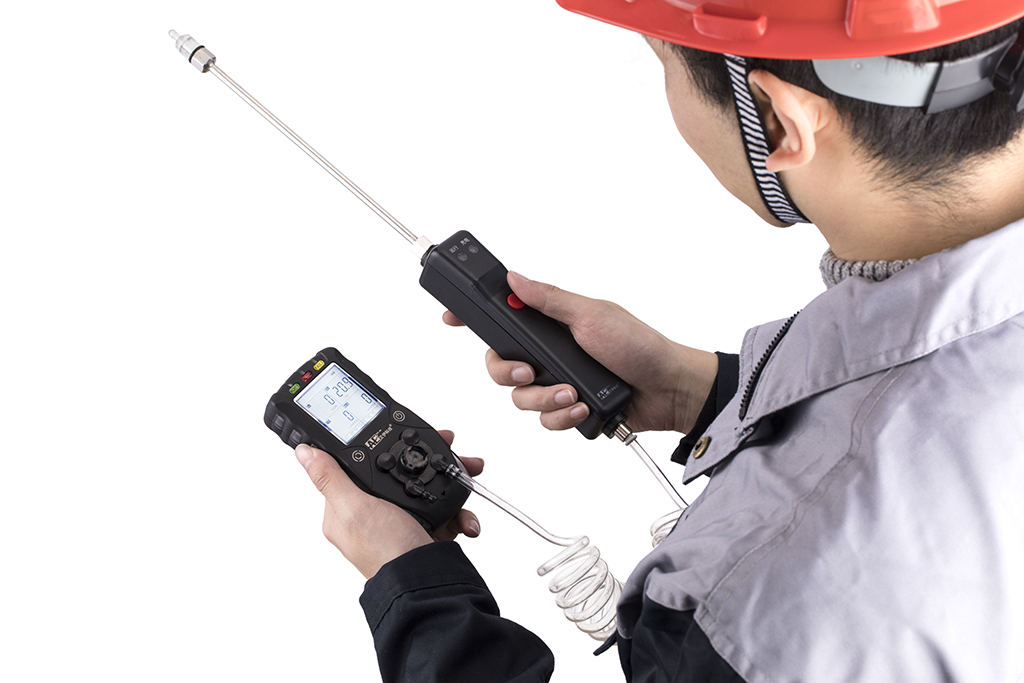

8. Compatible with AGH1000B sampling pump.

$450.00

Compare

Used in the non-hazard area only.

Portable Multi-Gas Detector & 4-Gas Monitor for LEL O2 H2S CO: In the daily production of petrochemical engineering, steel, and chemical engineering industries, workers often encounter flammable and toxic gases of various sorts, and accidents are easy to take place without proper safety protection. As a kind of personal safety protection instrument, AE IP66 Portable Multi-Gas Detector AGH6200 for LEL O2 H2S CO plays an important role in industrial production safety.

Description Specification
Gas detected Oxygen(O2), Hydrogen Sulfide(H2S), Carbon Monoxide(CO), Combustibles(LEL)
Measure range 0-30%VOL, 0-100ppm, 0-1000ppm, 0-100%LEL
Response Time T90≤60S
Accuracy ≤±5% F.S
Repeatability ≤±2% F.S
Sampling Method Diffusion
Battery Rechargeable lithium battery, 3.7V, 2200mAh
Continuous Operation at least 18 hours after a typical 4 hours full charge
Alarm Method sound, light (4 LEDs), vibration
Sound Intensity ＞90dB
Display LCD
Button 2(Power, Menu)
Ingress Protection IP66
Operating Temperature -20°C ~60°C
Operating Humidity 95% RH, non-condensing
Operating Pressure 80-120kPa
Body Material antistatic PC+TPU
Explosion-proof Ex dibIICT4



Product Information

Technical Details
Name Portable Multi-Gas Detector & 4-Gas Monitor for LEL O2 H2S CO with CITY Brand Sensor
Description Specification
Gas detected LEL, O2, H2S, CO
Measure range 0-100%LEL, 0-30%VOL, 0-100ppm, 0-1000ppm
Response Time T90≤60S
Accuracy ≤±5% F.S
Repeatability ≤±2% F.S
Sampling Method Diffusion
Battery Rechargeable lithium battery, 3.7V, 2200mAh
Continuous Operation at least 18 hours after a typical 4 hours full charge
Alarm Method sound, light (4 LEDs), vibration
Sound Intensity ＞90dB
Display LCD
Button 2(Power, Menu)
Ingress Protection IP66
Operating Temperature -20°C ~60°C
Operating Humidity 95% RH, non-condensing
Operating Pressure 80-120kPa
Body Material antistatic PC+TPU
Explosion-proof Ex dib IIC T4 (Used in non-hazard area only)
Additional Information
Name Portable Multi-Gas Detector & 4-Gas Monitor for LEL O2 H2S CO with CITY Brand Sensor
Package Information
Length 6.9 inch
Width 5.12 inch
Height 3.74 inch
Weight 1.4 lb
