Automatic chemical polymer dosing and mixing system for wastewater

Fully automatic flocculant mixing and chemical dosing system

Water Treatment Chemicals & Dosing Systems

Polymer Powder and Chlorine Dosing System with Storage Tank

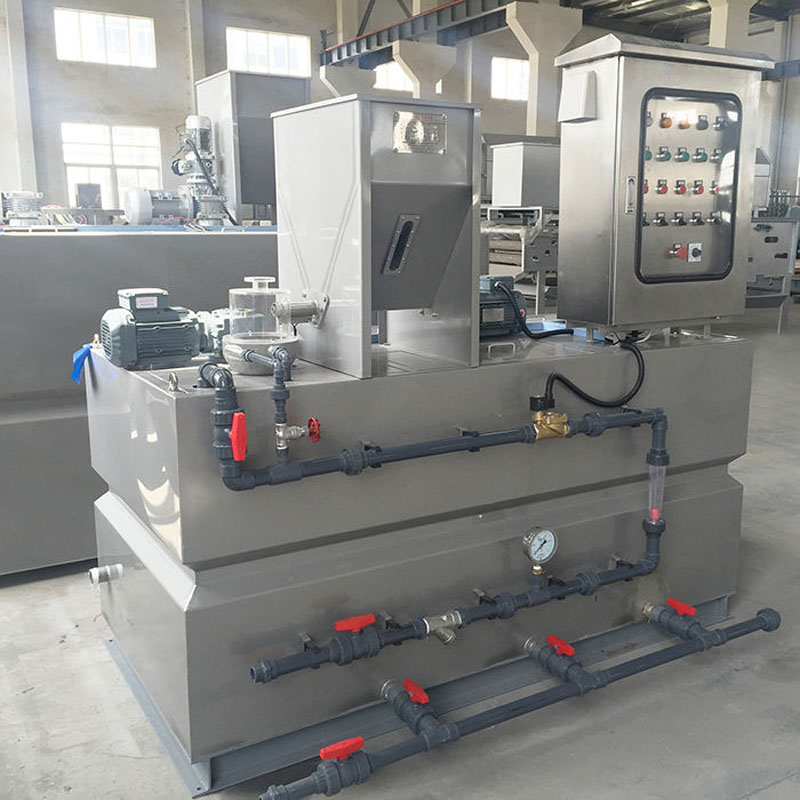

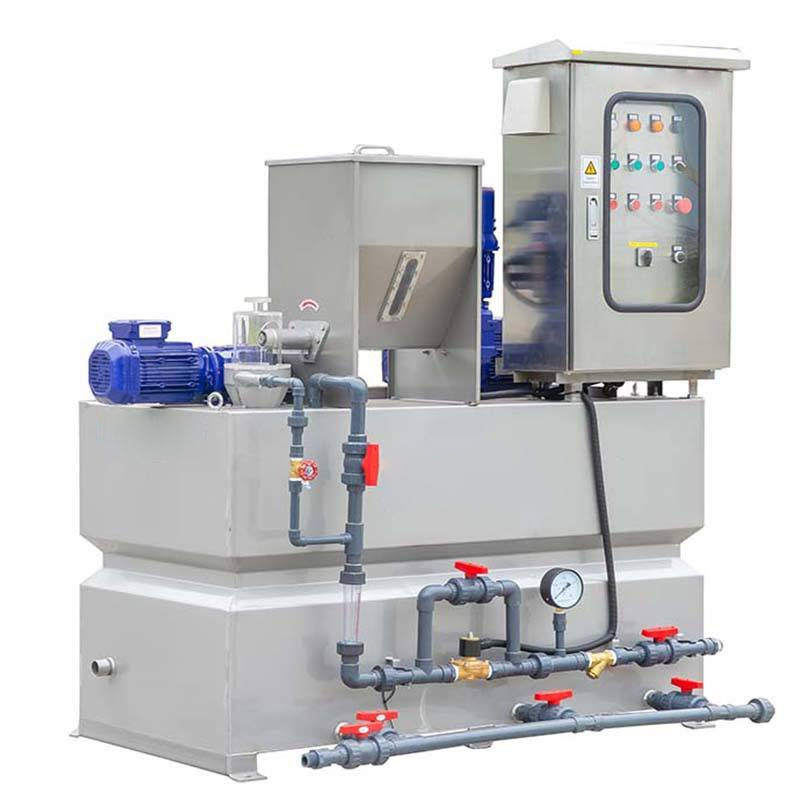

This automatic chemical polymer and flocculant dosing system is designed for wastewater treatment, providing continuous and efficient polymer solution preparation. It features a polymer dosing device with hopper, push screw, and electric heater to prevent caking, a dissolving unit with pre-soaking and multi-stage mixing tanks for uniform solution, and a water supply device with pipeline, valves, filter, and flow meter for precise dosing. The system ensures stable, high-quality chemical mixing and efficient, reliable wastewater treatment.

Compare

Description

Product Description of Chlorine Dosing System

Automatic polymer and flocculant dosing system for wastewater treatment, featuring a hopper-based polymer feeder with anti-caking heater, multi-stage dissolving and mixing tanks, and a precise water supply unit with valves and flow meter. It delivers continuous, homogeneous chemical solution, ensuring stable, efficient, and reliable wastewater treatment performance.

Product Parameter Table

Capacity(L/h)	1500
Power(kw)	2.45
Powder dosage(kg/h)	2-10
Water inlet flow(m3/h)	0-2.6
L(mm)	2130
B(mm)	1070
H(mm)	1710
L1(mm)	2060
B1(mm)	1120
Powder outlet DN	DN32
Water inlet DN1	DN32
Overflow DN2	DN40
Drain DN3	DN32
Net weight(kg)	490

Main features

Fully automatic operation integrating dosing, dissolving, and feeding processes
High-precision dry polymer dosing device with heater prevents polymer caking
Adjustable powder-to-water ratio allows preparation of solutions with any concentration
Optional vacuum feeding and on-line dilution systems for enhanced flexibility
Tanks available in SS304, SS316L, Polypropylene (PP), or FRP for corrosion resistance
Reliable, stable, and efficient chemical mixing for continuous wastewater treatment

Application scenarios

Industrial and municipal wastewater treatment plants for flocculation and sedimentation
Pretreatment for reverse osmosis and ultrafiltration systems to extend membrane life
Sludge conditioning, thickening, and chemical injection in water and wastewater management
Food and beverage plants requiring precise polymer or flocculant dosing
Chemical plants, mining, and power facilities needing automated dosing and mixing
Any facility requiring continuous, homogeneous, and high-precision chemical solution preparation
