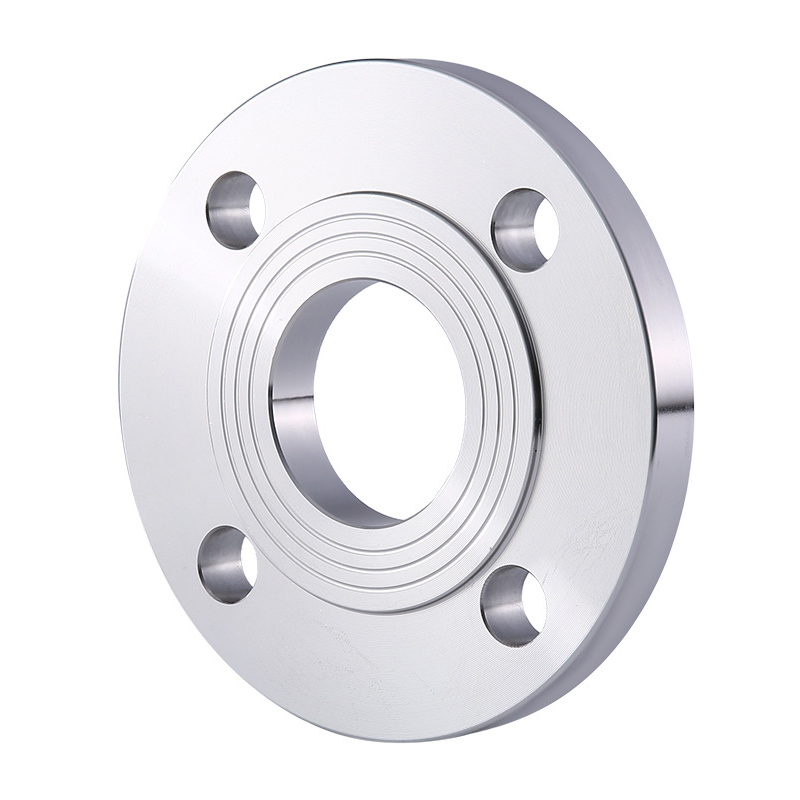

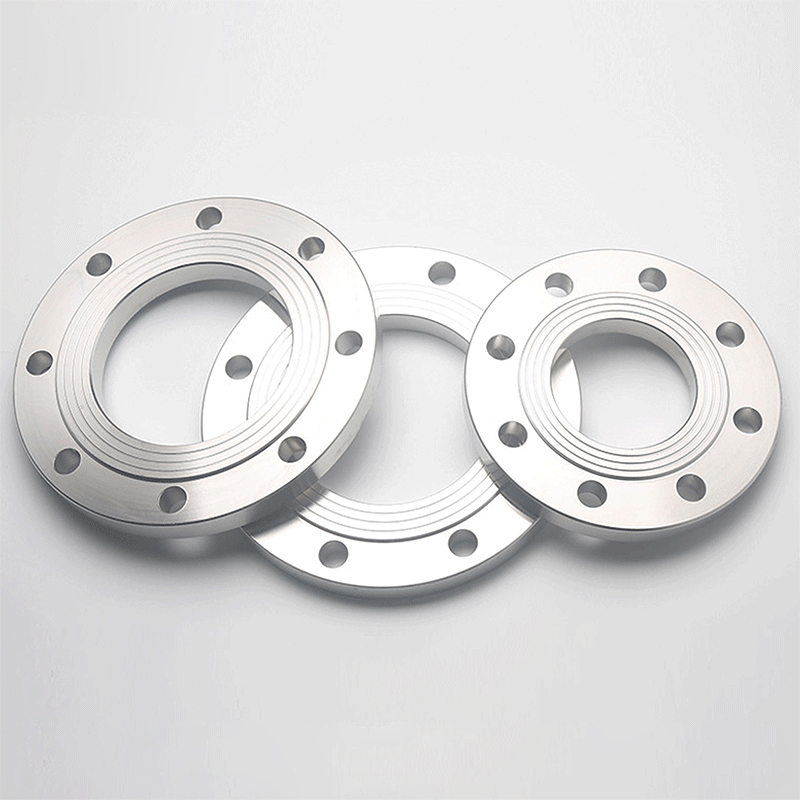

PN10 Plate Flat Welding Flange 304 Stainless Steel Forged Welding Flange Food Machinery Pharmaceutical Industry Welding Flange

Add to wishlist
Compare
  • Material: Stainless steel
  • Specifications: DN10-DN600  (PN10)
  • Scope of application: chemical/pharmaceutical/pressure vessel/heat exchanger/new energy equipment/food machinery/sterilizer/pipeline equipment reactor/environmental protection equipment/printing and dyeing equipment/pharmaceutical equipment/chemical equipment/filtration equipment/drying equipment/intelligent manufacturing

NOTE: Prices may vary by product model and material.

$14.00

Compare

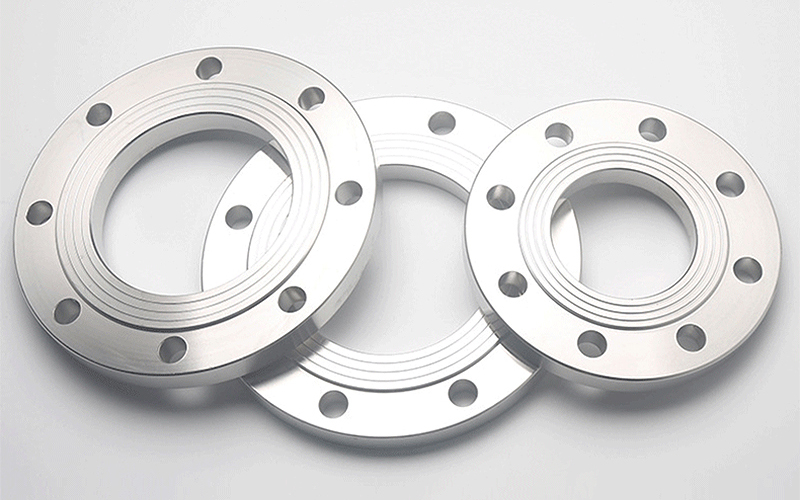

Features of Plate Flat Welding Flange

  • Corrosion resistance, high pressure resistance, long life, easy installation.
  • The smooth welding joints are tightly connected, and the workmanship is neat and burr-free.
  • Strong sealing and high matching degree.

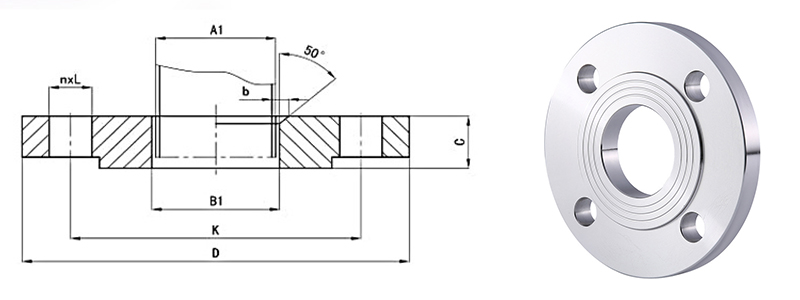

Technical parameters of Plate Flat Welding Flange (PN10)

Nominal diameter Piping outer diameter (mm) Flange outer diameter (mm) Flange inner diameter (mm) Total thickness (mm) Center distance

(mm)

 Number of holes
DN15 18 95 19 14 65 4
DN20 25 105 26 16 75 4
DN25 32 115 33 16 85 4
DN32 38 140 39 18 100 4
DN40 45 150 46 18 110 4
DN50 57 165 59 19 125 4
DN65 76 185 78 20 145 8
DN80 89 200 91 20 160 8
DN100 108 220 110 22 180 8
DN125 133 250 135 22 210 8
DN150 159 285 161 24 240 8
DN200 219 340 222 24 295 8
DN250 273 395 276 26 350 12
DN300 325 445 328 26 400 12
DN350 377 505 381 28 460 16
DN400 426 565 430 32 515 16
DN450 480 615 485 36 565 20
DN500 530 670 535 38 620 20
DN600 630 780 636 42 725 20

Note: DN15~DN150 specifications, PN10 and PN16 are the same size, and the sizes after DN200 are different.
