Plumbing floor heating thermostat, LCD panel, temperature controller for electric heating thermostat weekly programmable

Plumbing floor heating thermostat

Temperature sensing element: NTC
Temperature measurement accuracy: 1°C (1-5°C adjustable)
Temperature setting:
5~95°C (built-in sensor)
5~60°C (external sensor)
Working environment: -5~50°C
Humidity: 5~70%RH (non-condensing)
Button: touch the button
Self-consumption power: <1W

Power supply voltage: 220VAC50/60HZ

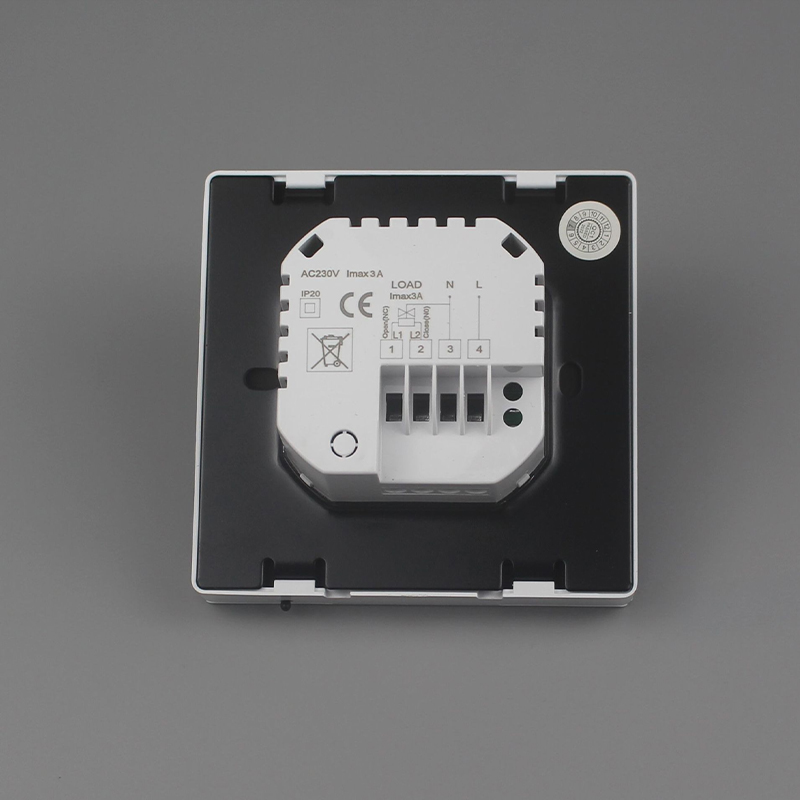

Terminal block: capable of connecting wires of 1x4mm²
Load current: 3A/16A/20A (according to model)
Shell: PC+ABS flame retardant
Installation hole distance: 60mm (standard)
Protection class: IP20
Load power:
Plumbing 240VAC/3A/10A
Electric heating 240VAC/16A/25A
