Plastic Sheet Extrusion Line Machine for Sheet Production

Plastic Sheet Extrusion Line Machine Product Introduction

Plastic Sheet Extrusion Line Machine for Sheet Production is an advanced extrusion system designed for manufacturing transparent PET sheets, plastic films and high-performance sheet materials. The production line adopts precision extrusion technology, stable melt control and advanced forming systems to achieve excellent product quality and continuous production.

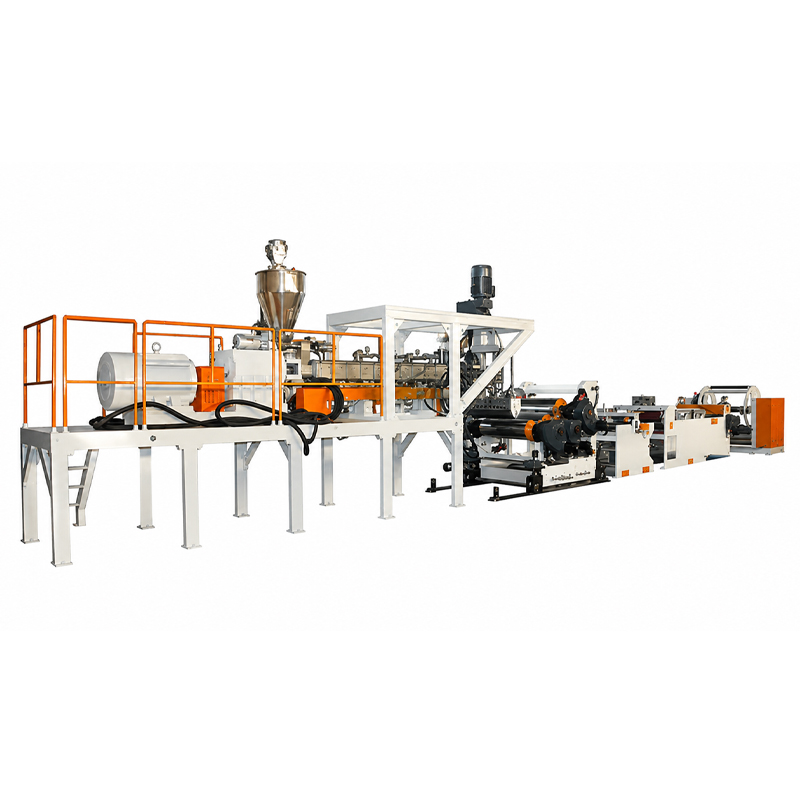

The complete extrusion line integrates extrusion, T-die forming, calendering, cooling, traction and automatic winding systems. The precision T-die ensures uniform material distribution, while the multi-roller calender system improves sheet thickness accuracy, surface smoothness and transparency.

This plastic sheet extrusion line is mainly used for processing PET, PETG, PP, PS and other thermoplastic materials to produce transparent sheets and films. The finished products are widely used in food packaging, electronic packaging, printing, thermoforming and industrial applications. The equipment can be customized according to material type, sheet thickness, width and production capacity requirements.

Industry Pain Points

Plastic sheet manufacturers require high transparency, precise thickness control and stable production efficiency. Traditional extrusion equipment may experience issues such as uneven material flow, thickness variation, poor surface quality and unstable winding performance.

Our Solution

The Plastic Sheet Extrusion Line provides a complete solution through precision extrusion, uniform melt distribution and advanced calendering technology. The system ensures stable production, excellent sheet appearance and consistent product performance while improving manufacturing efficiency.

Product Structure

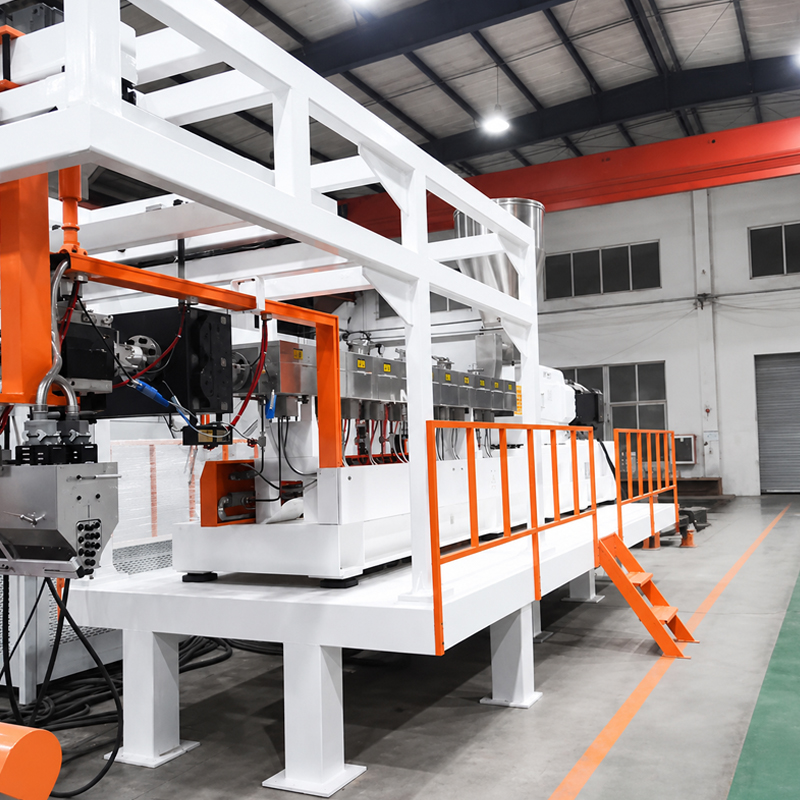

Extrusion Unit

The extrusion system melts and plasticizes PET or other thermoplastic materials evenly to provide a stable melt supply.

T-Die Head System

The precision flat die distributes molten material uniformly across the sheet width to achieve consistent thickness.

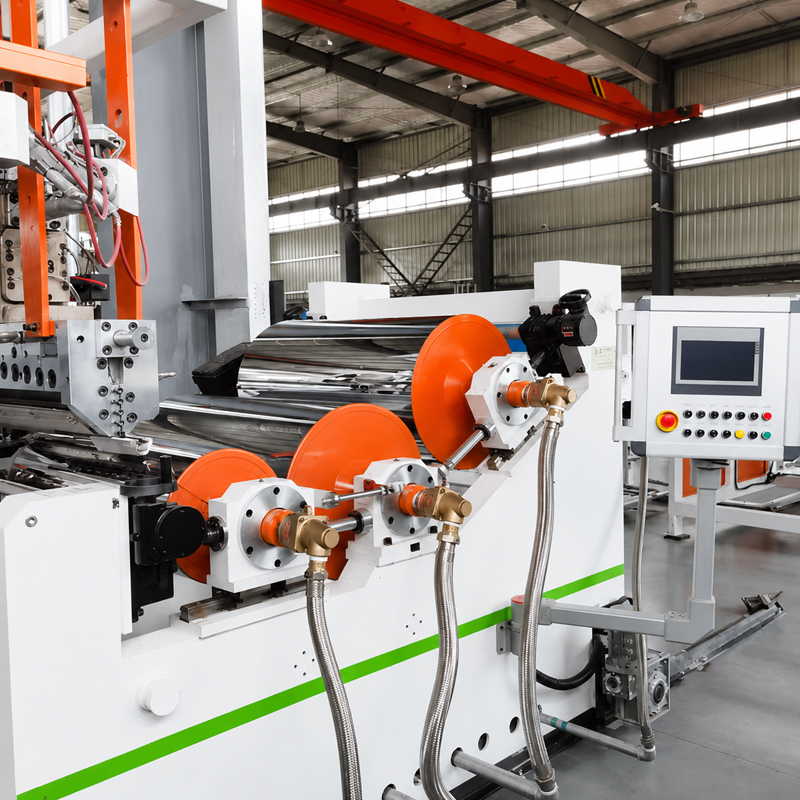

Three Roller Calender System

The roller system controls sheet thickness, improves surface gloss and ensures excellent transparency.

Cooling System

The cooling unit stabilizes the sheet structure and improves dimensional accuracy.

Traction Unit

The traction system maintains constant pulling speed for smooth and continuous sheet production.

Winding Unit

The automatic winding system collects finished sheets into rolls for convenient storage and transportation.

Working Principle

Raw Material Feeding

PET pellets or other thermoplastic materials are fed into the extrusion system through an automatic feeding device.

Plasticizing and Melting

The screw system heats, melts and mixes the material evenly to form a stable molten polymer flow.

Sheet Extrusion

The molten material is extruded through the T-die head to create a continuous flat sheet.

Calendering and Thickness Control

The sheet passes through precision rollers to adjust thickness, improve transparency and achieve a smooth surface.

Cooling and Stabilization

The formed sheet is cooled and stabilized to maintain dimensional accuracy and product performance.

Traction and Winding

The finished sheet is pulled continuously and rolled automatically for packaging, storage or further processing.



Key Features & Advantages

High Transparency Production

Designed for producing clear PET sheets with excellent optical performance.

Precise Thickness Control

Advanced T-die and roller calibration technology ensure uniform sheet thickness.

Stable Continuous Operation

The integrated extrusion and winding system supports efficient long-term production.

Excellent Surface Quality

Multi-roller forming technology improves smoothness and appearance.

Wide Material Compatibility

Suitable for PET, PETG, PP, PS and other thermoplastic materials.

Automatic Production System

Integrated control system reduces manual operation and improves efficiency.

Customized Configuration

Sheet width, thickness, output capacity and equipment configuration can be adjusted according to customer requirements.

Technical Parameters

Parameter	Specification
Equipment Type	PET Plastic Sheet Extrusion Line
Processing Type	Plastic Sheet Extrusion
Applicable Materials	PET, PETG, PP, PS and Other Thermoplastic Materials
Product Type	Transparent Plastic Sheet / Film
Extrusion Method	Single Screw Extrusion
Screw Type	Single Screw Extruder
Screw Material	38CrMoAlA Nitrided Steel
Screw Speed	300 rpm
Main Motor Power	38 kW
Operating Voltage	380 V
Forming System	T-Die Sheet Forming
Calendering System	Precision Roller Calendering
Cooling System	Roller Cooling System
Traction System	Automatic Sheet Pulling System
Winding System	Automatic Roll Winding
Control System	Automatic Electrical Control
Automation Level	Fully Automatic Operation

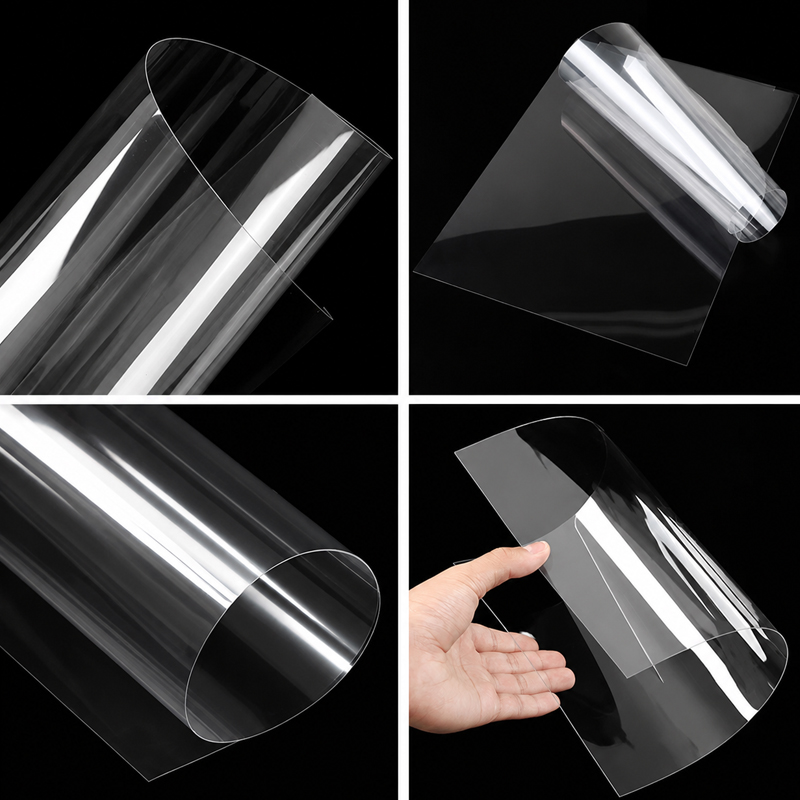

Final Products	PET Sheets, Plastic Films and Sheets
Application	Packaging, Thermoforming, Electronics and Industrial Applications
Production Capacity	Customized According to Material and Product Size

Application Scenarios

Food Packaging Sheet Production
Used for manufacturing transparent plastic sheets for food containers, trays and packaging products.

Thermoforming Material Production
Suitable for producing PET sheets used in vacuum forming and thermoforming applications.

Electronic Product Packaging
Provides transparent protective sheets for electronic components and products.

Printing Material Production
Used for producing plastic sheets suitable for printing and graphic applications.

Industrial Protective Film Production
Suitable for manufacturing protective plastic films and sheets.

Medical Packaging Production
Used for producing transparent packaging materials for medical products.

Retail Packaging Manufacturing
Provides sheet materials for blister packaging and display packaging.

Customized Plastic Sheet Production
Supports production of different thicknesses, widths and material formulations.



Industry Applications

Packaging Industry
Used for producing PET sheets and films for food, consumer goods and industrial packaging.

Food Container Industry
Provides transparent sheets for thermoformed trays and containers.

Electronics Industry
Used for protective packaging materials and component protection.

Printing Industry
Provides plastic sheet substrates for printing and labeling applications.

Medical Industry
Used for manufacturing transparent packaging materials for medical products.

Automotive Industry
Provides plastic sheets for interior and protective applications.

Thermoforming Industry
Used as raw material for vacuum forming and molding processes.

Plastic Processing Industry
Supports large-scale production of various thermoplastic sheets.



FAQ

1. What materials can this sheet extrusion line process?

It can process PET, PETG, PP, PS and other thermoplastic materials.

2. What products can be produced by this machine?

The line can produce transparent sheets, plastic films and thermoforming materials.

3. Is this machine suitable for PET sheet production?

Yes, it is widely used for manufacturing PET transparent sheets.

4. What is the advantage of the three roller system?

The roller system improves thickness accuracy, surface smoothness and transparency.

5. Can sheet thickness be customized?

Yes, thickness and width can be adjusted according to customer requirements.

6. Does the machine include an automatic winding system?

Yes, the production line can include automatic roll winding for continuous production.

7. What industries use PET sheets?

PET sheets are widely used in food packaging, electronics, printing and thermoforming industries.

8. Is the production line fully automatic?

Yes, the extrusion, forming, cooling and winding processes can be automatically controlled.

9. Can different materials be processed on one machine?

Yes, the machine configuration can be adjusted according to different thermoplastic materials.

10. Can the extrusion line be customized?

Yes, the equipment can be customized based on output capacity, material and final product requirements.
