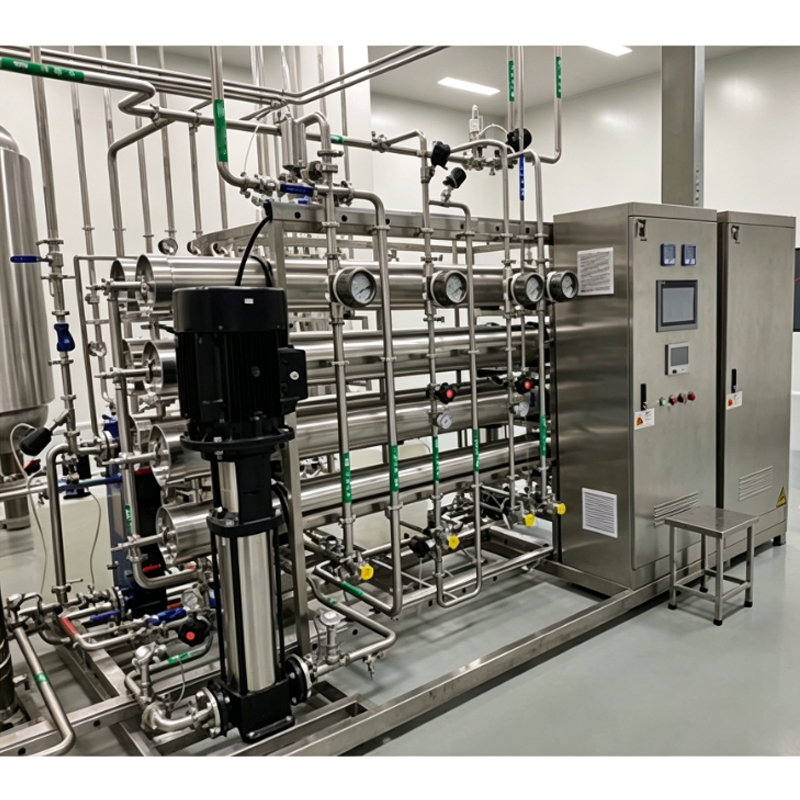

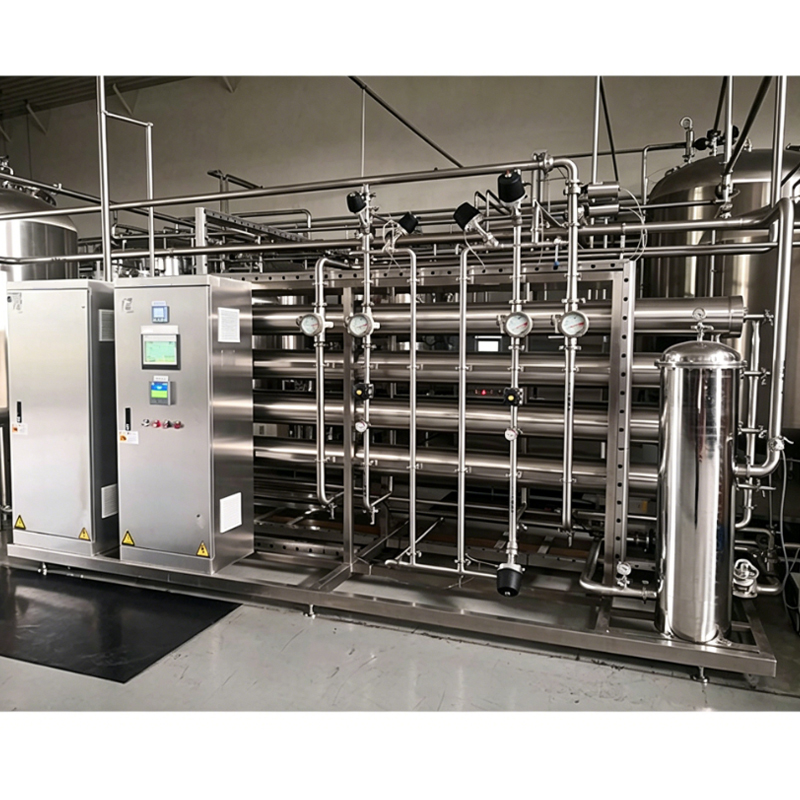

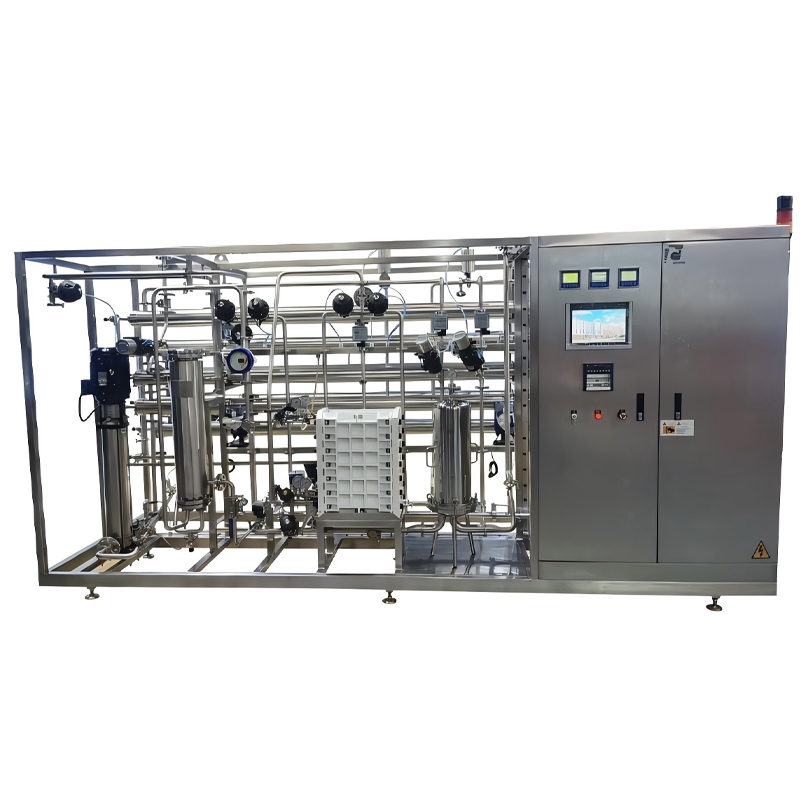

Pharmaceutical RO Pure Water Generation System with Storage

RO Pure Water Generation System Product Introduction

Pharmaceutical RO Pure Water Generation System with Storage is a high purity reverse osmosis water treatment solution specially engineered for pharmaceutical purified water production, GMP compliant water systems, biotechnology manufacturing, laboratory water supply, and sterile production environments. Combining multi stage pretreatment, advanced RO membrane separation, intelligent automation control, and integrated pure water storage technology, the system delivers stable, reliable, and compliant pharmaceutical grade purified water.

The system is designed to remove dissolved salts, microorganisms, endotoxins, heavy metals, suspended solids, organic contaminants, chlorine, and ionic impurities from municipal water, groundwater, and industrial feed water sources. It supports pharmaceutical manufacturing processes requiring high purity water generation, sanitary distribution, and controlled storage.

Widely used in pharmaceutical factories, biotech plants, medical manufacturing facilities, cosmetic production, healthcare laboratories, and GMP regulated production environments.

Pharmaceutical Water Treatment Challenges

Pharmaceutical and life science industries require extremely strict water quality control. Common challenges include:

• High purity water compliance requirements

• Microbial contamination risks

• Conductivity and TOC control demands

• Endotoxin management

• GMP validation requirements

• Water storage contamination concerns

• Continuous production water stability

• Sanitary system design requirements

Traditional industrial filtration systems often fail to meet pharmaceutical purity standards, validation requirements, and hygienic engineering specifications.

Our Solution

Our Pharmaceutical RO Pure Water Generation System with Storage integrates pharmaceutical grade pretreatment, reverse osmosis purification, intelligent automation, sanitary storage engineering, and hygienic process design into one complete water purification platform.

Key solution benefits include:

• Pharmaceutical grade water purification

• GMP compatible engineering design

• Stable purified water generation

• Intelligent monitoring and automation

• Integrated pure water storage capability

• Hygienic sanitary pipeline configuration

• Reduced contamination risk

• Reliable continuous operation

This solution helps pharmaceutical manufacturers achieve stable purified water quality, production compliance, and operational reliability.

System Configuration

Typical system configuration may include:

• Raw water storage tank

• Feed water transfer pump

• Multi media filtration system

• Activated carbon filtration

• Water softener module

• Precision cartridge filtration

• High pressure pump

• Pharmaceutical grade RO membrane skid

• EDI module optional

• UV sterilization system

• Ozone sterilization optional

• Pure water generation unit

• Sanitary pure water storage tank

• Circulation distribution loop

• PLC automation cabinet

• HMI touch screen monitoring

• Online conductivity monitoring

• TOC monitoring optional

• Flow, pressure, temperature monitoring

• CIP cleaning and sanitization module

The modular pharmaceutical design simplifies installation, validation, maintenance, and future production expansion.

Working Principle

Raw water enters the pretreatment section where multi media filtration, activated carbon treatment, water softening, and precision cartridge filtration remove sediment, hardness, chlorine, and suspended contaminants.

Pretreated water is pressurized by the high pressure pump and enters the pharmaceutical RO membrane module. Through reverse osmosis separation, dissolved salts, microorganisms, bacteria, organics, and ionic contaminants are effectively removed.

The purified water is then transferred into a sanitary storage system designed for pharmaceutical use. Optional UV sterilization, ozone treatment, circulation loops, and EDI polishing can further improve purity stability and microbial control.

PLC automation continuously monitors conductivity, pressure, flow, temperature, and system performance to ensure stable pharmaceutical water quality.

Why Choose This Pharmaceutical RO System

Choosing the correct pharmaceutical pure water system directly affects product quality, GMP compliance, validation performance, and operational safety.

Our system provides:

• High purity pharmaceutical water generation

• Stable RO membrane performance

• GMP compatible hygienic engineering

• Integrated storage and circulation design

• Intelligent automation management

• Flexible pharmaceutical customization

• Low maintenance operation

• Reliable long term performance

Compared with conventional industrial RO systems, this solution provides stronger purity control, sanitary protection, and pharmaceutical process compatibility.

Product Advantages

Pharmaceutical Grade Water Purification

• Designed for purified water production, pharmaceutical process water, laboratory water, and regulated manufacturing applications.

Advanced RO Membrane Technology

• Efficient removal of dissolved salts, heavy metals, bacteria, microorganisms, and organic contaminants.

Integrated Pure Water Storage

• Sanitary storage engineering supports stable water quality management and controlled distribution.

GMP Compatible Design

• Supports hygienic piping, sanitary components, validation requirements, and pharmaceutical production standards.

Flexible Engineering Customization

• Capacity, automation level, membrane brands, storage volume, and monitoring configurations can be customized.

Technical Specifications

Item	Specification
Product Name	Pharmaceutical RO Pure Water Generation System with Storage
System Type	Pharmaceutical Reverse Osmosis Pure Water System
Technology	Multi Stage RO Purification
Processing Capacity	250 LPH – 50000 LPH Optional
Recommended Capacity	500 LPH – 20000 LPH
Water Recovery Rate	50–85%
Salt Rejection Rate	≥97–99.8%
Conductivity Output	≤10 μS/cm Optional
TOC Control	Optional
Bacteria Control	High Efficiency Reduction
Endotoxin Control	Optional Configuration
RO Membrane Type	Pharmaceutical Grade RO Membrane
Membrane Brand Optional	Dow / Toray / Hydranautics / Vontron
Pretreatment	Sand Filter + Carbon Filter + Softener + Cartridge Filter
Cartridge Precision	1–5 Micron
Storage Tank Material	SS304 / SS316L
Tank Surface Finish	Mirror Polish Optional
Pipe Material	SS304 / SS316L Sanitary Grade
Welding Standard	Sanitary Welding
Pump Material	SS316L
Sterilization Options	UV / Ozone
EDI Module	Optional
Online Monitoring	Conductivity / Pressure / Flow / Temperature
TOC Monitoring	Optional
Control System	PLC + Touch Screen
PLC Brand Optional	Siemens / Schneider / Mitsubishi
Automation Level	Semi Automatic / Fully Automatic
CIP Cleaning	Available
Sanitization Mode	Thermal / Chemical Optional
Voltage	220V / 380V / 415V / Customized
Frequency	50Hz / 60Hz
Installation Type	Skid Mounted / Modular
Compliance	GMP / FDA Compatible Design Optional
Design Service Life	10–20 Years

Water Quality Performance

Parameter	Feed Water	Treated Water
TDS	High	≥95–99% Reduction
Conductivity	High	Low Conductivity
Microorganisms	Present	Significant Reduction
Heavy Metals	Present	Efficient Removal
Organic Contaminants	Variable	Improved Purity
Water Stability	Variable	Stable Controlled Output

Industry Applications

• Pharmaceutical purified water systems

• GMP pharmaceutical production

• Biotechnology manufacturing

• Injectable drug support water systems

• Medical device manufacturing

• Cosmetic production plants

• Laboratory purified water generation

• Healthcare facility water systems

• High purity industrial water production

• Life science manufacturing facilities

Application Scenarios

Suitable for:

• Pharmaceutical factories

• GMP production workshops

• Biotech manufacturing plants

• Cosmetic manufacturing facilities

• Research laboratories

• Medical device production lines

• Healthcare industrial facilities

• Sterile production environments

• Cleanroom manufacturing projects

• Pharmaceutical EPC engineering projects

Engineering Advantages

• Pharmaceutical grade hygienic design

• Stable RO pure water generation

• Integrated sanitary storage system

• Intelligent PLC monitoring

• GMP compatible engineering layout

• Flexible modular expansion capability

• Low contamination risk

• Continuous high purity water supply

• Reliable validation friendly operation

Optional Configurations

• Double stage RO system

• EDI polishing module

• UV sterilization package

• Ozone sanitization module

• TOC online analyzer

• Sanitary circulation loop

• SS316L pharmaceutical piping

• Remote monitoring platform

• Automated validation support

• OEM and turnkey engineering services

FAQ

1. What is a Pharmaceutical RO Pure Water Generation System with Storage?

It is a pharmaceutical water treatment system that combines reverse osmosis purification, sanitary storage, and controlled distribution to generate high purity water for GMP manufacturing environments.

2. Which industries commonly use this system?

Pharmaceutical factories, biotechnology plants, cosmetic manufacturers, medical device facilities, laboratories, healthcare production sites, and high purity industrial applications.

3. What water quality can this system achieve?

The system can significantly reduce TDS, conductivity, microorganisms, organic contaminants, and dissolved impurities. Optional configurations support pharmaceutical purified water standards.

4. What contaminants can the system remove?

Dissolved salts, heavy metals, bacteria, viruses, endotoxin related impurities, suspended solids, chlorine, hardness, and organic compounds.

5. Can this system meet GMP production requirements?

Yes. GMP compatible engineering, sanitary piping, hygienic design, automated control, and validation friendly configurations are available.

6. Is SS316L material available?

Yes. SS316L sanitary stainless steel is available for tanks, piping, pumps, and wetted components.

7. Why is an integrated storage system important?

Sanitary storage helps maintain water quality stability, supports continuous supply, reduces contamination risk, and improves production efficiency.

8. Can the system include EDI polishing technology?

Yes. EDI modules can be integrated to achieve higher purity water quality and lower conductivity output.

9. Does the system support online monitoring?

Yes. Online monitoring options include conductivity, pressure, flow rate, temperature, TOC, and water quality tracking.

10. Is automatic operation available?

Yes. PLC control, touch screen operation, alarm systems, automated flushing, and intelligent monitoring functions are available.
