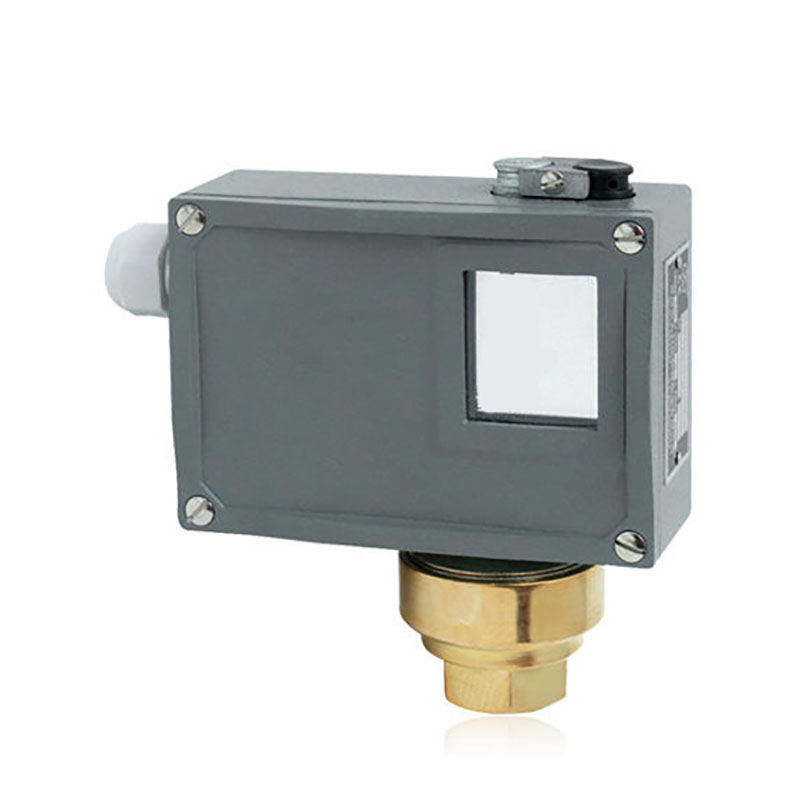

Ordinary/Explosion-Proof Pressure Switch，Safety Control
Pressure switches are a reliable solution for industrial pressure control. It is designed with the 502-7D model and can operate effectively within a temperature range of -20 ℃ to+70 ℃. The explosion-proof characteristics of this switch ensure safety in high-risk environments, while its stable pressure control improves process efficiency. It is widely used in industrial manufacturing, chemical processing, and power generation. The durable structure and easy maintenance make it an economical and efficient choice for long-term use. This switch can provide consistent performance in both steam turbines and chemical reactors.
$240.00
ComparePressure switch product description：
This is a pressure switch, a sturdy device designed specifically for industrial applications, with a temperature range of -20 ℃ to+70 ℃. It ensures stable pressure control in high-temperature environments and solves pressure regulation problems in industrial processes. This type of switch is very suitable for industries that require reliable pressure management, such as manufacturing and processing.
Technical Specifications：
| Parameter | Value |
| Name | Pressure switch |
| Model | 502-7D |
| Protection index | IP65 |

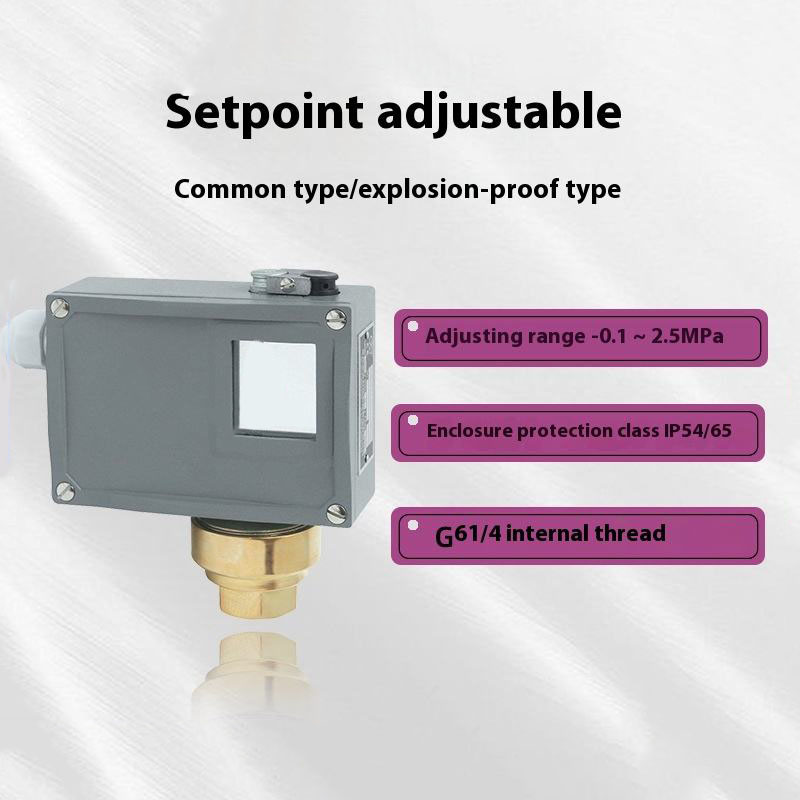

| Pressure range | -0.1 ~ +2.5MPa |
| temperature | -20 ~ +70℃ |

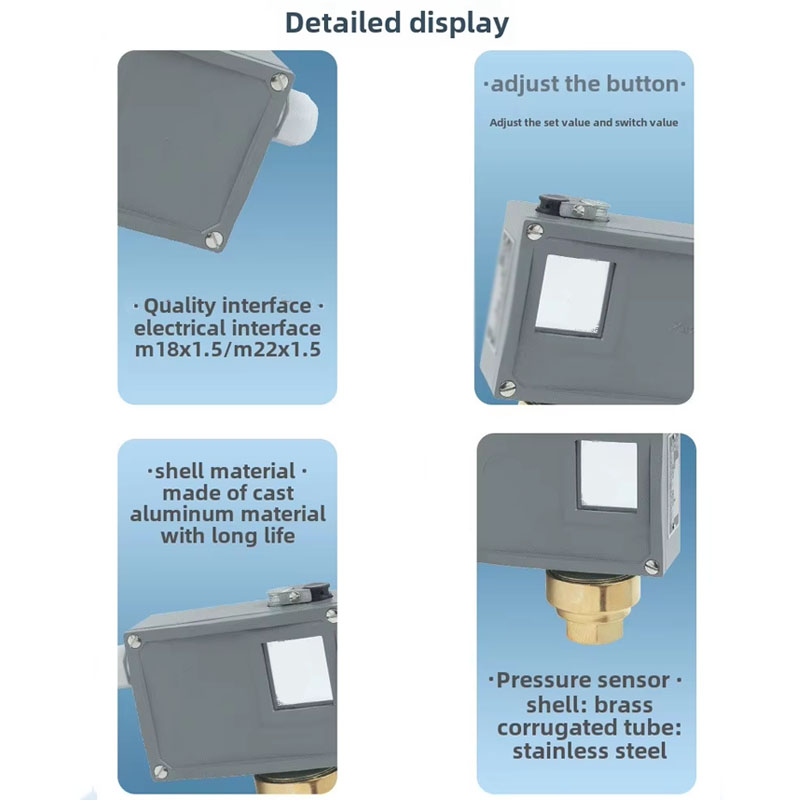

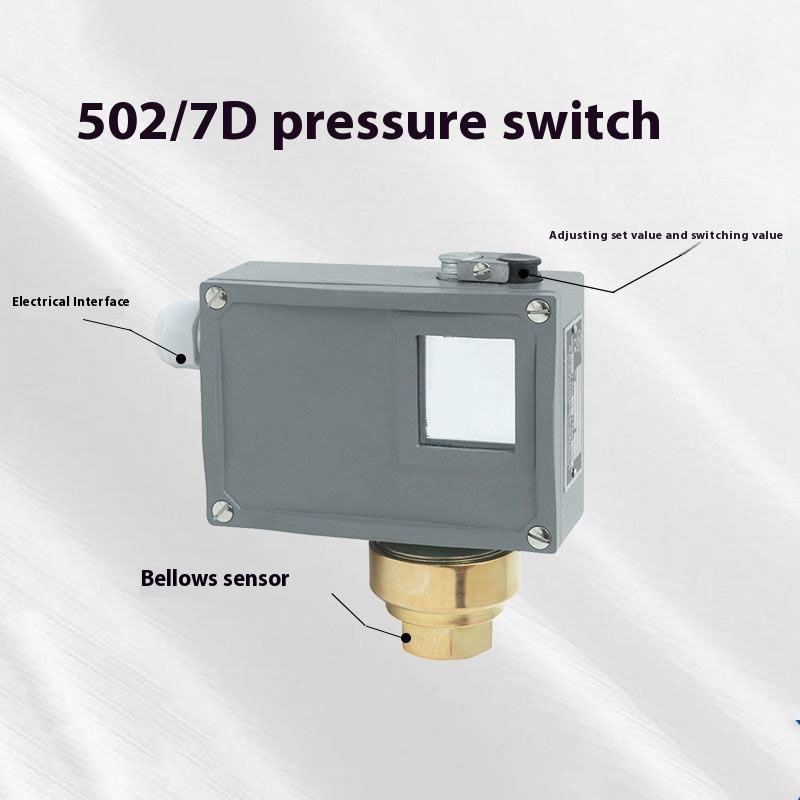

Key Features:
1. Adjustment button: Adjust the set value and switch value
2. High quality interface: electrical interface m18x1.5/m22x1.5
3. Shell material: Made of cast aluminum material, with a long service life
4. Pressure sensor: shell: brass, bellows: stainless steel
Application Scenario:
1. Industrial manufacturing: can ensure pressure stability in high-temperature industrial processes, improve efficiency and safety.
2. Chemical treatment: It is very suitable for regulating the pressure in chemical reactors and pipelines to prevent overpressure.
3. Power generation: used for steam turbines and boilers to maintain consistent pressure levels.
4. Heavy machinery: suitable for hydraulic systems in construction and mining equipment.
Contact us to get your quotation now.
Get in touch with our engineering team.
Download full specification PDF.
