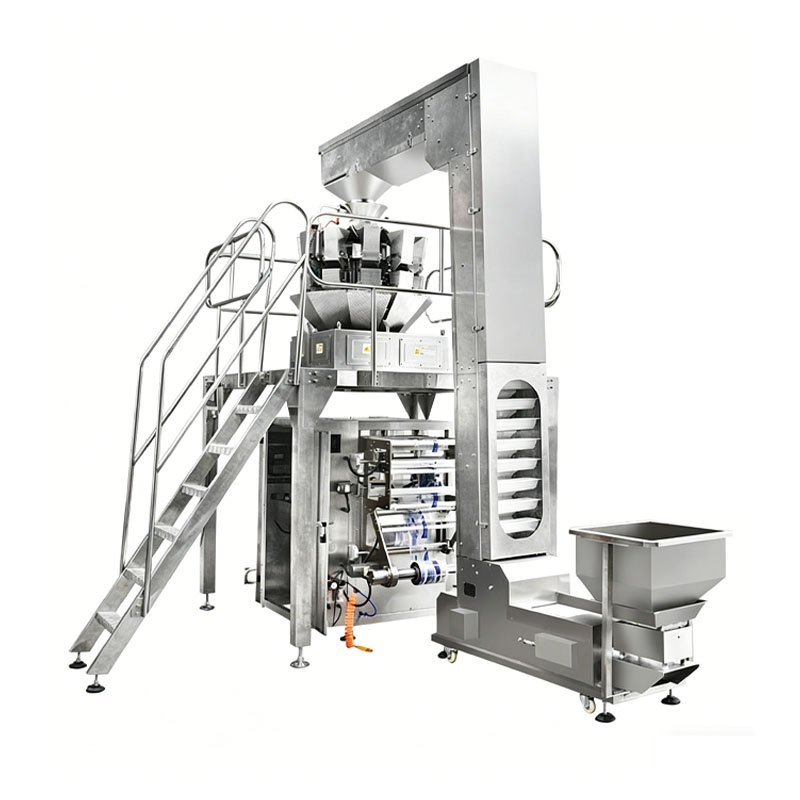

Multi Head Dry Fruit Packing System Frozen Fruit Packaging Line
Multi head dry fruit packing system is an automatic weighing and packaging solution designed for granule, chip, frozen food, and mixed product packaging. It uses high-precision multi-head weighing technology combined with PLC control and double sealing cylinders to ensure fast, accurate, and airtight packaging. The system is widely used in food processing plants for nuts, snacks, frozen fruits, vegetables, and pet food packaging production lines.
Compare
Product introduction of Multi Head Dry Fruit Packing System
Multi head dry fruit packing system is an advanced automatic weighing and packaging solution designed for high-speed food production lines. It integrates multi-head combination weighing technology with PLC intelligent control to achieve precise, fast, and stable packaging performance. The system is widely used for dry fruits, frozen foods, snacks, nuts, chips, and mixed granular materials. With double sealing cylinders and a side film pulling belt, it ensures airtight packaging quality and smooth film feeding. The touch screen interface makes operation simple and efficient. This system is suitable for modern food factories requiring high accuracy, automation, and continuous industrial packaging performance.
Working principle
Step 1. Material Feeding
Products are fed into multi-head weighing hopper system.
Step 2. Weight Calculation
System calculates optimal combination weight using multiple weighing heads.
Step 3. Film Feeding
Side film pulling belt ensures stable and even film transport.
Step 4. Bag Forming
Film is shaped into packaging bag using forming tube system.
Step 5. Filling Process
Measured product is automatically filled into packaging bag.
Step 6. Sealing Process
Double sealing cylinders ensure airtight and transparent sealing.
Step 7. Output Delivery
Finished packages are discharged for labeling or boxing.
Product Parameter Table
| Parameter | Specification |
|---|---|
| Film Width | Max 720 mm |
| Bag Width | 110-350 mm |
| Bag Length | 100-420 mm |
| Packing Speed | 10-50 bags/min |
| Measuring Range | 150-4000 ml |
| Film Thickness | 0.04-0.10 mm |
| Power | 4 kW / 220 V, 50-60 Hz |
| Dimension | 1780 × 1350 × 2000 mm |
| Weight | 800 kg |
| Air Consumption | 0.8 m³/min, 0.8 MPa |
Manual Packing vs Multi Head Packing System
| Feature | Manual Packing | Multi Head Packing System |
|---|---|---|
| Speed | Low | High-speed automation |
| Accuracy | Unstable | High precision weighing |
| Labor cost | High | Low automation system |
| Sealing quality | Weak | Double airtight sealing |
| Productivity | Limited | Continuous production line |
| Operation | Manual | PLC intelligent control |
Main Features
- Multi head weighing system ensures high precision packaging
- Double sealing cylinders improve airtight sealing quality
- PLC intelligent control system enables automatic operation
- Touch screen interface for easy operation and monitoring
- Side film pulling belt ensures stable film feeding
- Automatic correction system improves bag forming accuracy
- Low noise and stable machine running performance
- Suitable for wide range of food and non-food materials
Application Scenarios
- For nut and snack factories needing fast packaging, system ensures high-speed weighing and sealing
- For frozen food processing plants, system provides stable low-temperature packaging operation
- For uneven product shapes, system ensures accurate multi-head weighing results
- For manual packaging inefficiency, system automates full production line process
- For sealing leakage problems, system provides double-cylinder airtight sealing
- For mixed product packaging, system ensures uniform weight distribution
Why Choose This Multi Head Packing System
- High-speed automatic weighing improves production efficiency
- Accurate measurement reduces product waste
- Strong sealing performance ensures product freshness
- Stable PLC control system reduces operational errors
- Suitable for multiple product types and industries
- Low maintenance and long service life
- Supports continuous industrial packaging operation
FAQ
1. What is a multi head dry fruit packing system used for?
It is used for automatic weighing and packaging of nuts, snacks, frozen food, and dry fruits.
2. How does multi head weighing packing machine work?
It combines multiple weighing heads to calculate precise product weight automatically.
3. What products can be packed with multi head packing system?
It can pack nuts, chips, frozen fruit, vegetables, candies, and pet food.
4. Is multi head packing system suitable for frozen food?
Yes, it is designed for both dry and frozen food packaging applications.
5. What is the advantage of double sealing system?
It ensures airtight packaging and prevents product leakage or contamination.
6. How accurate is multi head weighing system?
It provides high precision weighing with minimal product waste.
7. Can packing system handle irregular shaped products?
Yes, it is suitable for chips, nuts, and mixed granular materials.
Contact us to get your quotation now.
Get in touch with our engineering team.
