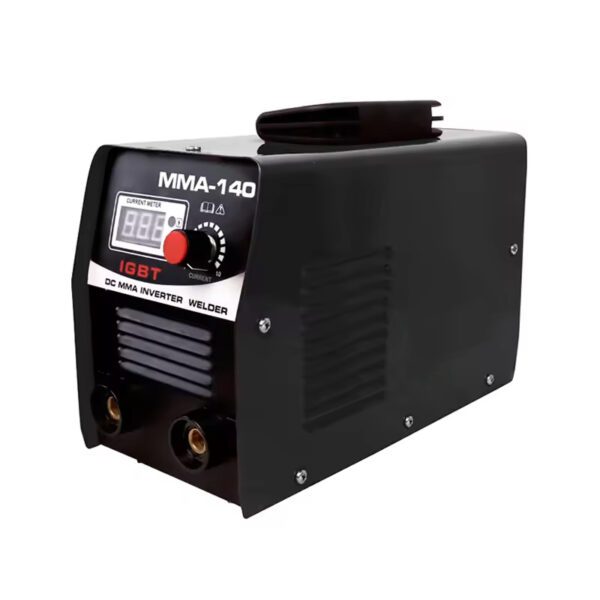

MMA 140 Arc Welding Machine Factory Arc Welding Equipment & Accessories
Single chip board,compact structure
New air duct design,efficient heat dissipation design
Half bridge IGBT inverter technology innovation design
20% Duty cycle @ 40℃
Digital ampere meter
Foldable handle,compatible with strap design
$45.00
Compare|
Model
|
MMA-120
|
MMA-140
|
MMA-160
|
|
Voltage(V)
|
AC 220±15%
|
AC 220±15%
|
AC 220±15%
|
|
Open Circuit Voltage(V)
|
DC 65±5%
|
DC 65±5%
|
DC 65±5%
|
|
Current Regulating Range(A)
|
20-115
|
20-135
|
20-155
|
|
Suitable Electrode
|
Φ2.5 Electrode
|
Φ2.5-3.2 Electrode
|
Φ2.5-3.2 Electrode
|
|
Rated Load Endurance @40℃
|
20%
|
20%
|
20%
|
|
The Machine Efficiency
|
85%
|
85%
|
85%
|
|
Insulation Class
|
F
|
F
|
F
|
|
Protection Grade
|
IP21S
|
IP21S
|
IP21S
|
|
Net Weight(KG)
|
2
|
2.2
|
2.5
|
|
Bare Machine Size(mm)
|
290*140*220
|
290*140*220
|
290*140*220
|
|
Single Package Size(mm)
|
350*165*240
|
350*165*240
|
350*165*240
|
|
4 in 1 Package Size(mm)
|
660*360*250
|
660*360*250
|
660*360*250
|
Arc Welding Machine Performance Characteristics

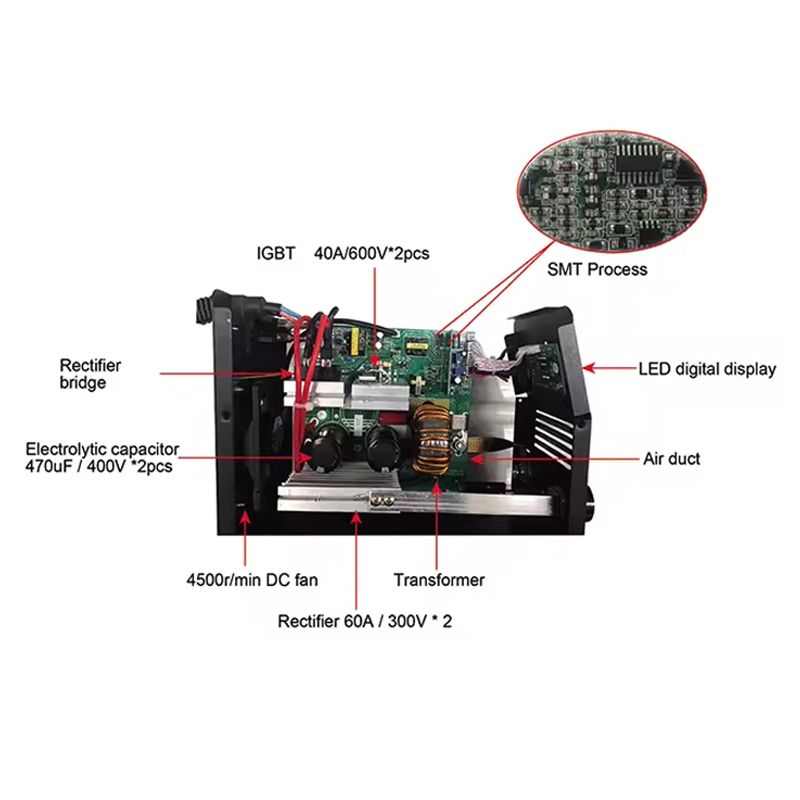

Single chip board,compact structure
New air duct design,efficient heat dissipation design
Half bridge IGBT inverter technology innovation design
20% Duty cycle @ 40℃
Digital ampere meter
Foldable handle,compatible with strap design
