Liquid Bottling Line for Detergent & Sauce 400 BPH

Liquid Bottling Line Product Introduction

The liquid bottling line is a fully automatic packaging solution designed for filling, capping and sealing liquid and viscous products such as detergent, sauce, shampoo, liquid soap and chemical liquids.

This system integrates bottle feeding, liquid filling, capping and sealing into one continuous process, ensuring high efficiency and stable production. It is suitable for various container types including bottles, spout pouches and flexible packaging formats.

With a production capacity of up to 400 bottles per hour (BPH), the machine is ideal for small to medium scale production lines in food, daily chemical and industrial applications.Liquid filling lines are widely used in industries requiring accurate dosing and consistent production quality.

Working Principle：

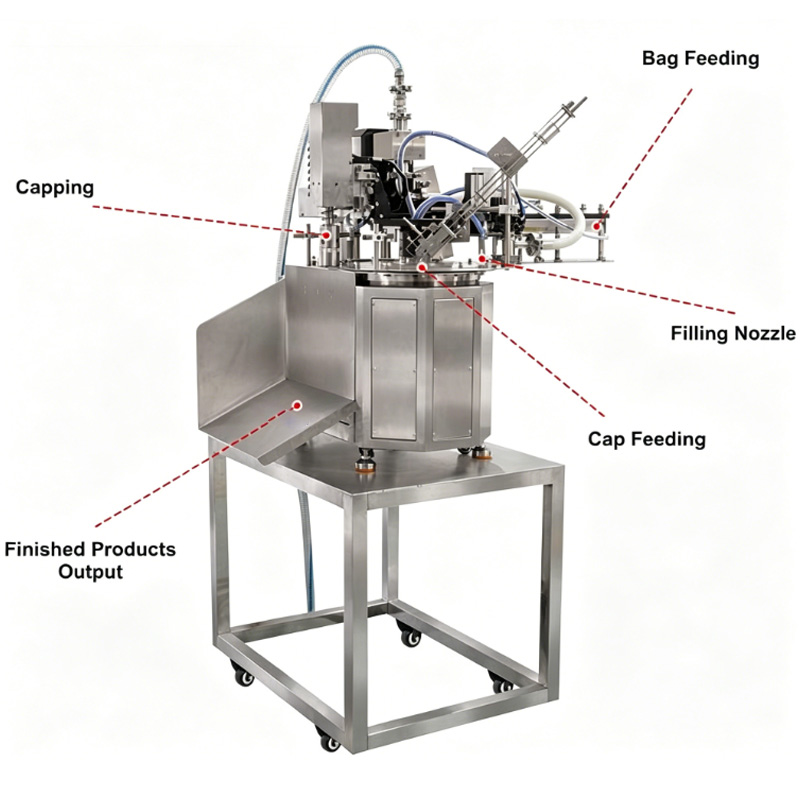

The liquid bottling line operates through an automated filling and packaging process.
Empty bottles or containers are first transported through a conveyor system to the filling station. A liquid filling system, such as a piston pump or gear pump, accurately dispenses the product into each container.
After filling, the containers are transferred to the capping system where caps or spouts are automatically placed and tightened. The sealed bottles are then conveyed to the output system for collection.
This continuous process ensures high precision filling, reduced product waste and stable packaging quality. Modern liquid filling machines are designed for consistent dosing and efficient production.

Technical Specifications：

Production Capacity	400 BPH
Filling Range	100–2000 ml
Filling Accuracy	±0.5%
Suitable Products	Detergent, Sauce, Oil, Liquid Chemicals
Bottle Type	Glass Bottle / Plastic Bottle
Filling System	Piston / Gravity Filling (Optional)
Control System	PLC + Touch Screen
Power Supply	220V / 50Hz, 3 kW
Air Pressure	0.5–0.8 MPa
Air Consumption	0.4–0.6 m³/min
Machine Material	Stainless Steel 304
Machine Weight	800–1000 kg
Machine Size (L×W×H)	3100 × 1200 × 1800 mm



Main features：

• High efficiency production capacity up to 400 bottles per hour, suitable for continuous packaging lines and improving output
• Suitable for detergent, sauce, shampoo, liquid soap and viscous liquids packaging
• Accurate filling system ensures precise dosing and minimal product waste
• Fully automatic process including bottle feeding, filling, capping and sealing
• Strong compatibility with bottles, spout pouches and different container types



Application Scenarios：

High efficiency production capacity up to 400 bottles per hour, suitable for continuous packaging lines and improving output

Suitable for detergent, sauce, shampoo, liquid soap and viscous liquids packaging

Accurate filling system ensures precise dosing and minimal product waste

Fully automatic process including bottle feeding, filling, capping and sealing

Strong compatibility with bottles, spout pouches and different container types



FAQ

Q: What types of liquids can this liquid bottling line handle?
A: This liquid bottling line is suitable for detergent, sauce, shampoo, liquid soap, oil and other viscous or semi-liquid products, ensuring accurate filling and stable packaging performance.

Q: What container types are supported by this bottling line?
A: The machine supports bottles, spout pouches and various plastic or composite containers, making it suitable for flexible liquid packaging applications.

Q: How does the filling system ensure accuracy?
A: The system uses a piston pump or gear pump filling mechanism to provide precise dosing, stable performance and minimal product waste for liquid and viscous materials.

Q: Is this liquid filling machine suitable for food and chemical industries?
A: Yes, it is made of stainless steel and designed for food-grade and chemical applications, suitable for sauce, oil, detergent and other liquid products.

Q: What is the production capacity of this bottling line?
A: The production capacity can reach up to 400 bottles per hour, depending on product viscosity, container size and filling volume.
