Model
|
MT-200
|
Power Supply
|
220V 50HZ
|
Conveyor width
|
120mm (can be customized according to your bottle size)
|
Laber speed (maximum)
|
20-40 pcs/min
|
Labeling precision
|
±1mm
|
Machine size (L *W* H)
|
2000 mm * 910 mm * 1450 mm
|
Machine Weight
|
200KG
|

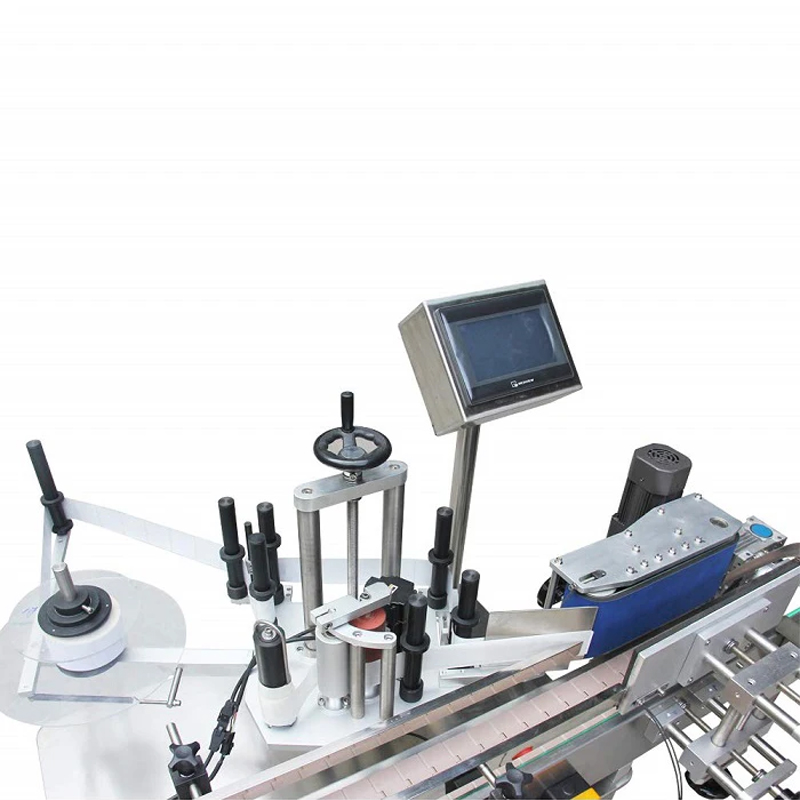

Smart touch screen!Smart touch screen op.eration, one key calling of parameters, to maximize the realization ofintelligent and simpleoperation.

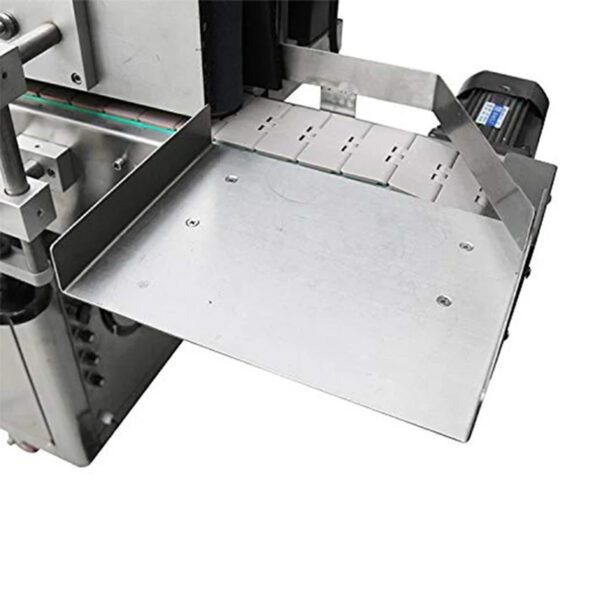

Feeding tray:Imported acrylic tray is used, the material is tough and not easy to be damaged, and the adjustable handle is easyto adjiust.
Electric eye!The label detection is sensitive and accurate,and the stability of themachine is greatly im-proved.
Note: Prices may vary depending on product capacity and quality.
Standard Features:
1. Powerful functions, the same equipment can realize single and double labeling of cylindrical products with small taper objects, and the double-label spacing can be flexibly adjusted. The optional circumferential positioning detection device can realize the function of positioning and labeling on the circumferential surface;
2. The label has a high degree of coincidence, equipped with a top pressing mechanism, combined with a 3-axis positioning mechanism, to prevent the bottle from fluctuating up and down and improve the labeling accuracy;
3. The automatic bottle separation adopts the elastic pressure bottle separation mechanism, which effectively eliminates the unsmooth bottle separation caused by the error of the bottle itself and improves the stability
