Moisture Balance Analyzer Technical Data
Model | A1002 | A1002a | A1003 |
Max Capacity | 100g | 100g | 100g |
Measuring accuracy | 0.01g | 0.005g | 0.001g |
Actual scale dividing value | 1mg | 1mg | 1mg |
Verification scale dividing value | 10mg | 10mg | 10mg |
Moisture test accuracy | ±0.5% (sample ≥ 2g) | ±0.5% (sample ≥ 2g) | ±0.5% (sample ≥ 2g) |
Moisture content determines readability | 0.02%~0.1% (sample ≥ 2g) | 0.02%~0.1% (sample ≥ 2g) | 0.02%~0.1% (sample ≥ 2g) |
Temp control adjustment tolerance | ±1℃ | ±1℃ | ±1℃ |
Heating temp set range | 60℃~160℃ (adjust based on 1℃) | ||
Heating time set range | 0min~99min (adjust based on 1 min) | ||
Analysis method | Manual / Timing / Automatic | ||
Display parameters(9 kinds) | Sample weight(g); Dry weight(g); Heating time(min; sec); Drying temperature; The end way; Water loss rate (water content) = (G-g) /G; Drying rate=G/g; Moisture regain(G-g) /g; Wet weight rate=G/g | ||
Moisture content determination range | 0%~100% | ||
Dimension | 360mm * 215mm * 170mm |
Integrated balance & oven function

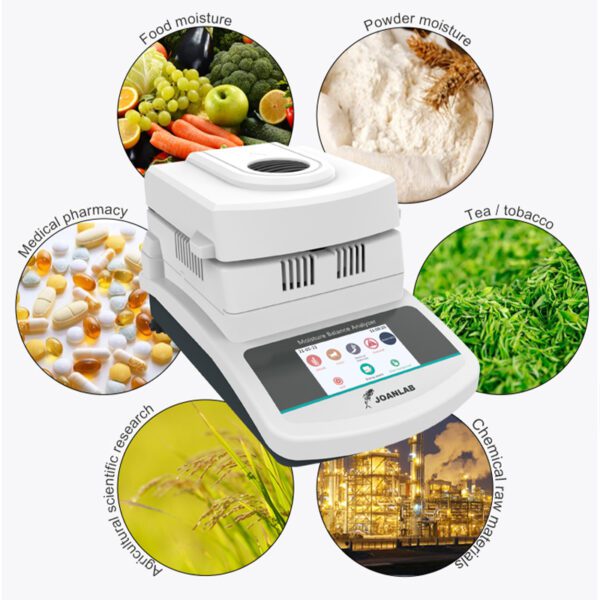

One machine for multiple purposes. Applicable to all industries that need to quickly determine moisture, such as granular powder, flakes,non-active liquids can be measured, bid farewell to tediousness and make experiments easier.
Overload protection, over temperature protection, door lock protection, weighing overload protection and multiple protection measures make the experiment safer.
