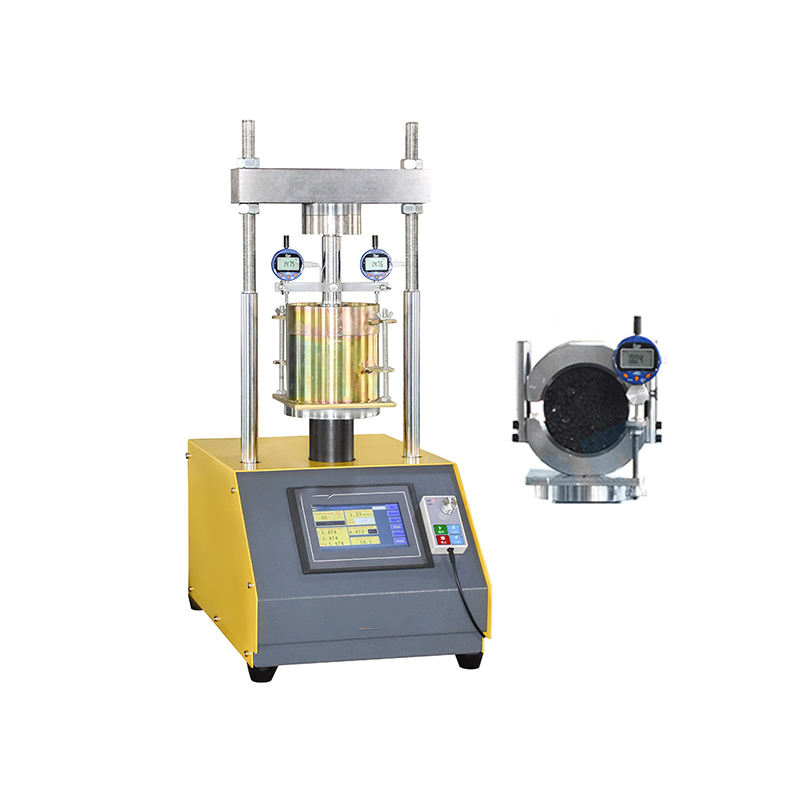

Digital Soil California Bearing Ratio (CBR) Testing Machine, which is used to measure the bearing capacity of soil and asphalt pavement materials.

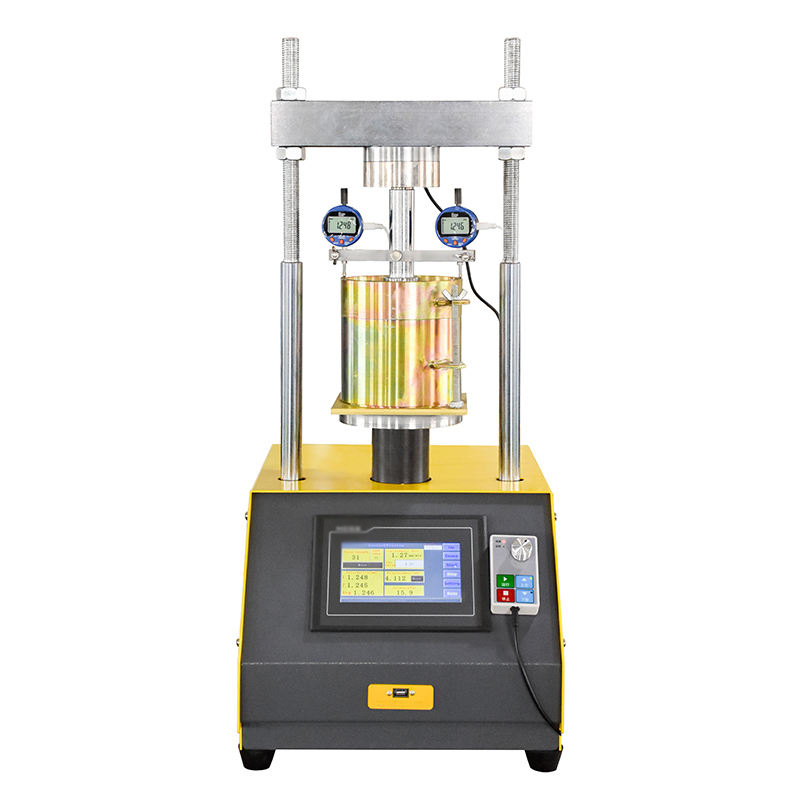

The machine has a dual-column structure with a yellow and gray base. It is equipped with a digital touch screen for operation and data display, and two digital gauges to measure deformation.

Strength Tester of Lab Automatic Soil Asphalt Pavement

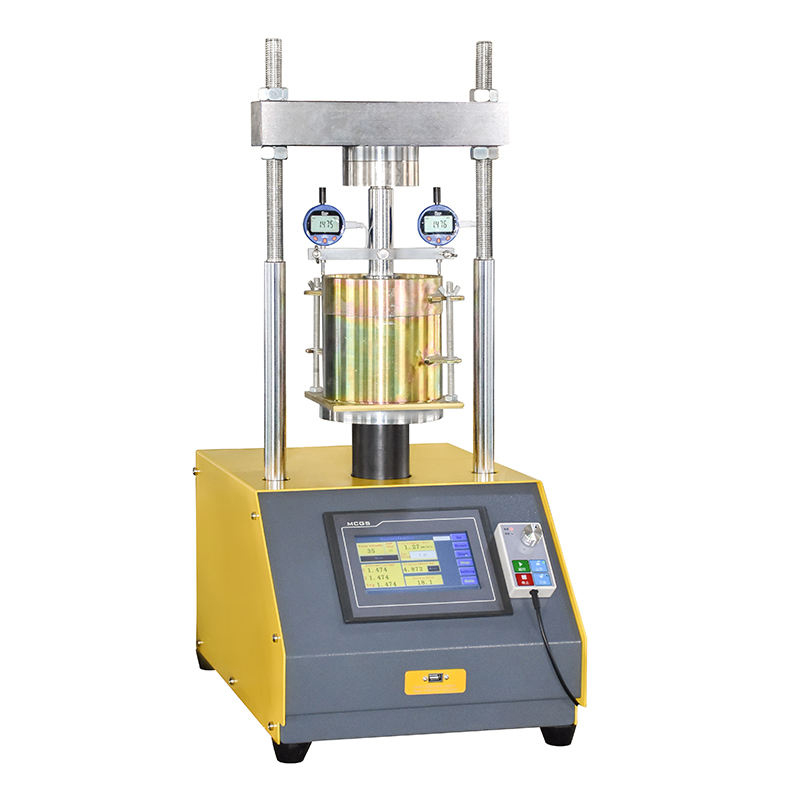

The CBR Test & Marshall Tester is a professional laboratory testing machine dedicated to soil and asphalt material performance evaluation, essential for road engineering quality control. It delivers reliable testing with a force accuracy of Class 0.5, supporting two key functions: CBR (California Bearing Ratio) tests for road subgrade soil bearing capacity and Marshall stability tests for asphalt mixture deformation resistance.

Compare

Description

Parameter Table： Soil Asphalt Pavement Strength Tester

Parameter	Specification
Product Name	CBR Test, Marshall Tester
Type	Testing Machine
Accuracy	Force accuracy: 0.5 level
Power	700W
Protection Class	IP55
Voltage	220 V
Power Supply	220 V
Application	Soil Asphalt
Rising Rate	(50 ± 5) mm / min
Maximum Pressure	50KN/100KN
Indenter Diameter	(101.6±0.2)mm/(152.4±0.2)mm
Flow Range	0-15.00mm
Relative Humidity	≤85%
Weight	100 kg

Application：

Road Subgrade Soil CBR Bearing Capacity Test (RSSR CBR BCT)

- Evaluates the bearing capacity of road subgrade soil via CBR test, leveraging the device’s 0.5-level force accuracy to ensure data reliability for road design.

Asphalt Mixture Marshall Stability Test (AM MST)

- Tests the stability and deformation resistance of asphalt mixtures through Marshall test, matching the 50KN/100KN maximum pressure to meet standard testing requirements.

Highway Construction Process Quality Monitoring (HCP QM)

- Monitors the performance of soil-asphalt materials in real time during highway construction, using the (50±5)mm/min rising rate for efficient on-site testing.

Laboratory Soil-Asphalt Material Performance Verification (LSAM PV)

- Verifies whether soil-asphalt materials meet industry standards in laboratories, adapting to ≤85% relative humidity to maintain stable test conditions.

Municipal Road Asphalt Pavement Acceptance Test (MRA PAT)

- Conducts acceptance testing on municipal road asphalt pavements, utilizing (101.6±0.2)mm/(152.4±0.2)mm indenter diameters to fit different pavement material test scenarios.
