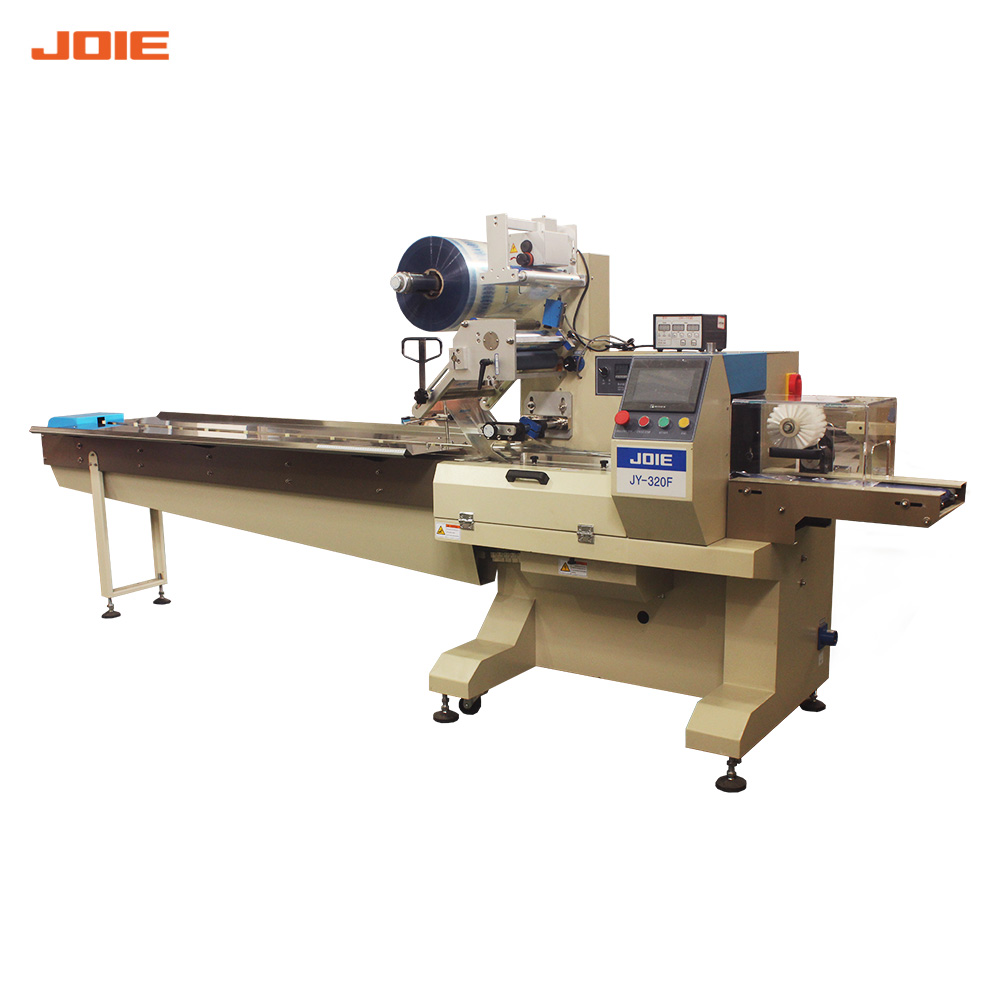

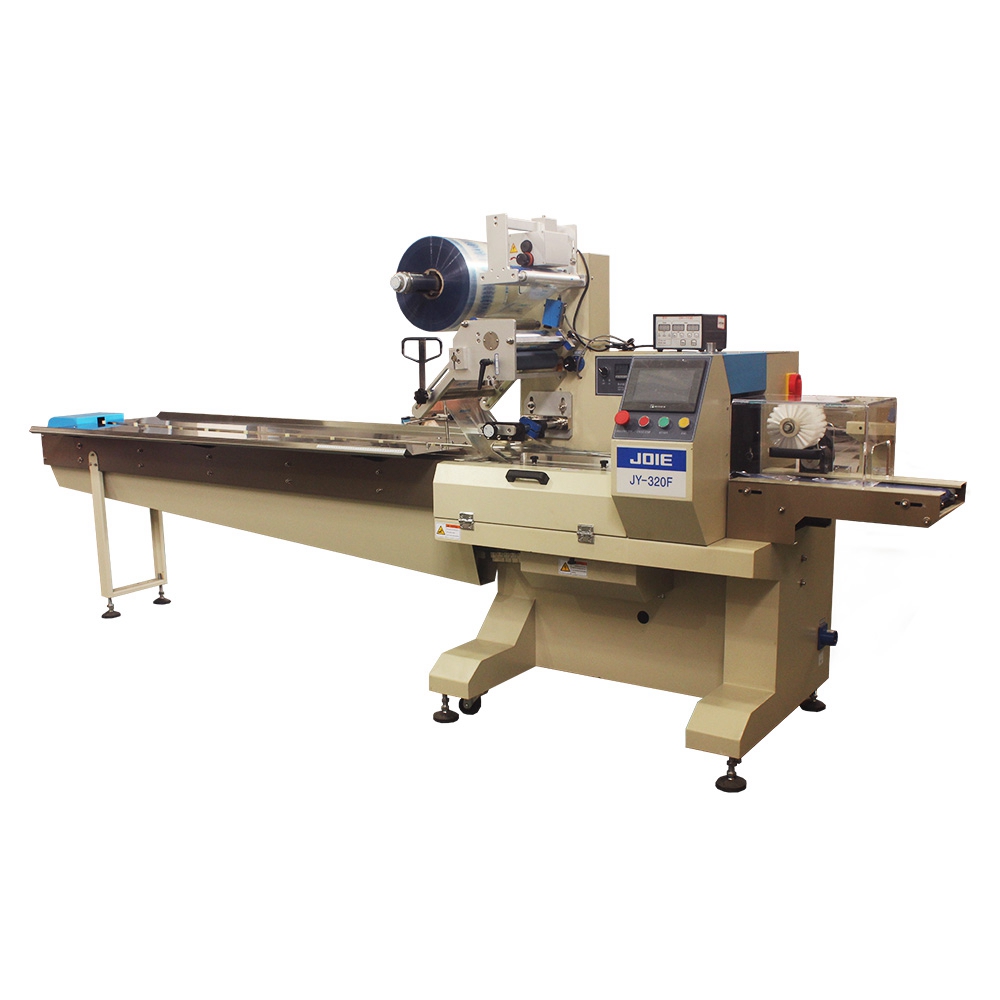

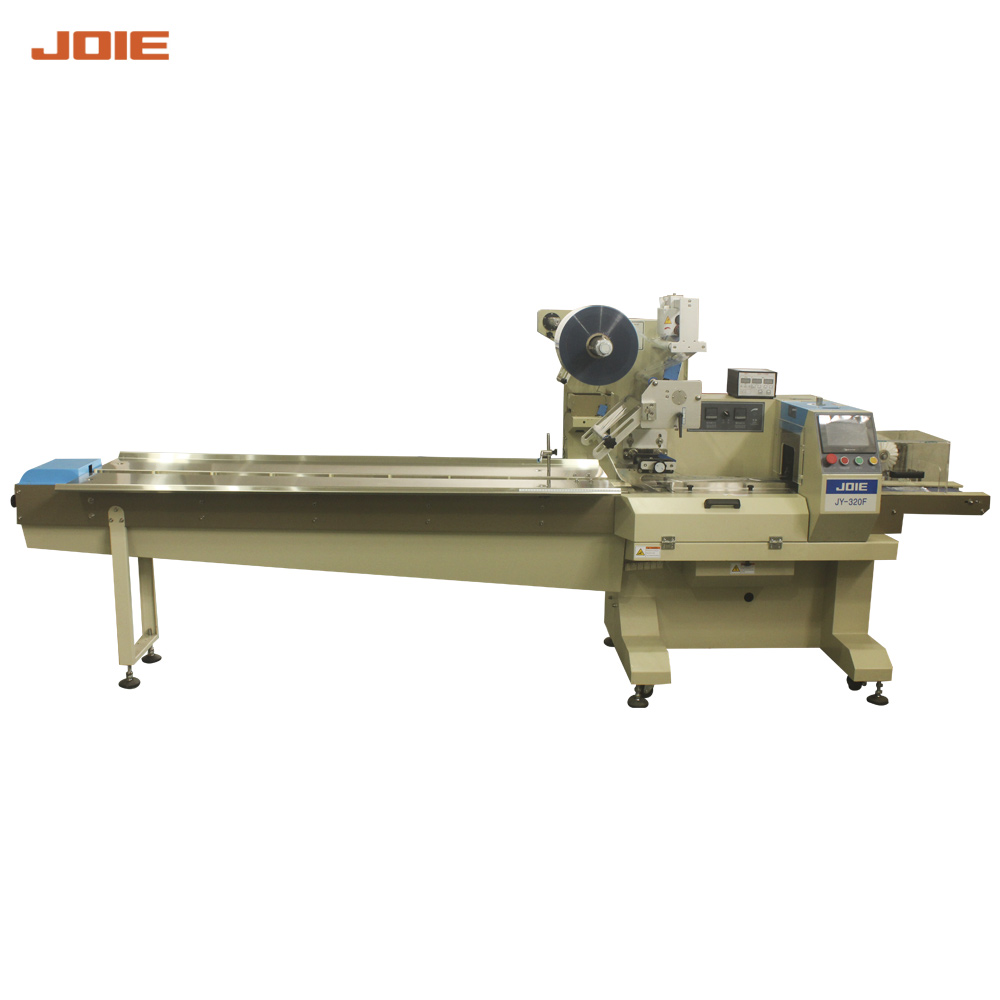

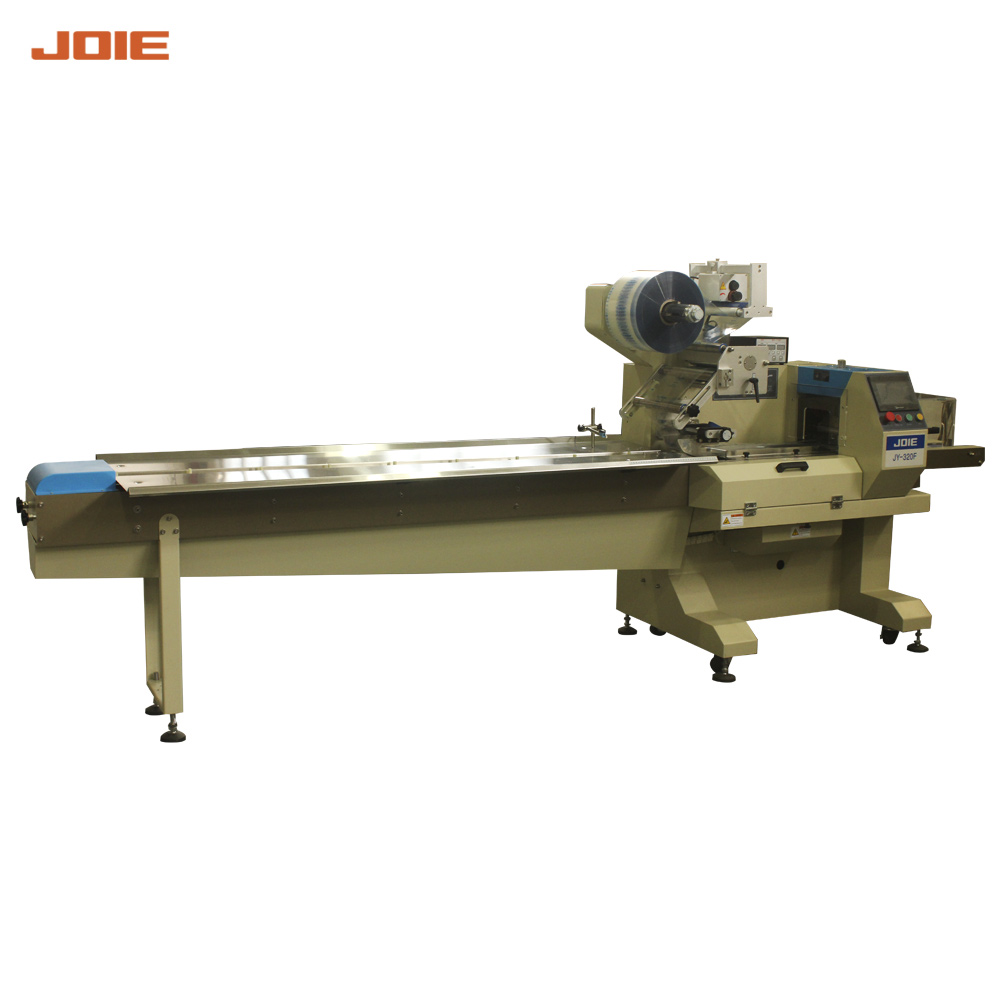

JY-320F Three Servo Flow Packing Machine for Food Packaging

1. Independent three servo motors controlled (conveyor belt, center sealing and end sealing).

2. The area connected to products are of full SUS304 stainless steel.

3. All program controlled by 7″ touch screen, esay and smart operation;

4. Product cutting prevention, machine will stop once cutter cuts th product.

5. Empty bag prevention, no product no pack.

6. Digital and independent PID temperature controlling, suitabal for various films.

7. Adjustable bag former and pitches.

8. Install Date coder.



Flow wrap packaging machine is mainly used for various kinds of solid objects with regular shape(Square/Rectangle/Circular/Ellipse/Flake etc.),such as moon-cake,muffin cake,bread,fruit pie,biscuits,sweet roll,sweets,chocolate,pharmaceuticals tools,medicine,daily necessities,hardware,or any other products loaded in box or tray.

Bag Samples:

Main performance & characteristics

1 .Adopt Servo system,with PLC & AC inverter intelligent and step-less controlling, which can realize simple operation and cut more correctly.

2.High-sensitive photo sensor, automatical adjustment, track, find cutting point, accumulatively count packs, automatic measure bag length.

3.Digital and independent PID temperature controlling; suitable for various packing materials; makes the packaging with high efficiency and beauty.

4.Adjustable bag former and pitches.

5.The area connected to products are of full stainless steel. With timing belt transmission,compact structure, lower noise and less shake.

6.Variety of optional device is available, such as: Touch screen/Date coder/Labels applicator/Euro slot or hole punch/Gusset forming /Nitrogen or gas inflation/Spraying alcohol/Automatic film splicer/ Auto feeding/Desiccant feeder /Auto falling/Products conveyor/No products no packing/Metal detector etc.

Product Information

Technical Details

Technical Parameter

Model JY-320F three servo
Packing speed (bag/minute) 30-200bag/min
Packing Bag size (mm)
Length × Width × Height
L: 60-280 (2.36″-11.02″)
W: 30-120 (1.18″-4.72″)
H: 10-60 (0.39″-2.36″)
Maximum width of film (mm) <320mm (12.6″)
Thickness of film (mm) ≥0.02mm
Power 220V, 50/60HZ, 2.5KW
Overall size (mm)

Length × Width × Height

4650 × 950 ×1620 (183″ × 37.4″ × 63.8″)
Weight 500kg
Packing material OPP/PP,OPP/CPP PT/PE,PE,KOP/CPP etc.Any heat-sealable composite materials foil/film
Additional Information

Safe Packaging:

Machine will be wrapped by film and packed into two wooden boxs.
