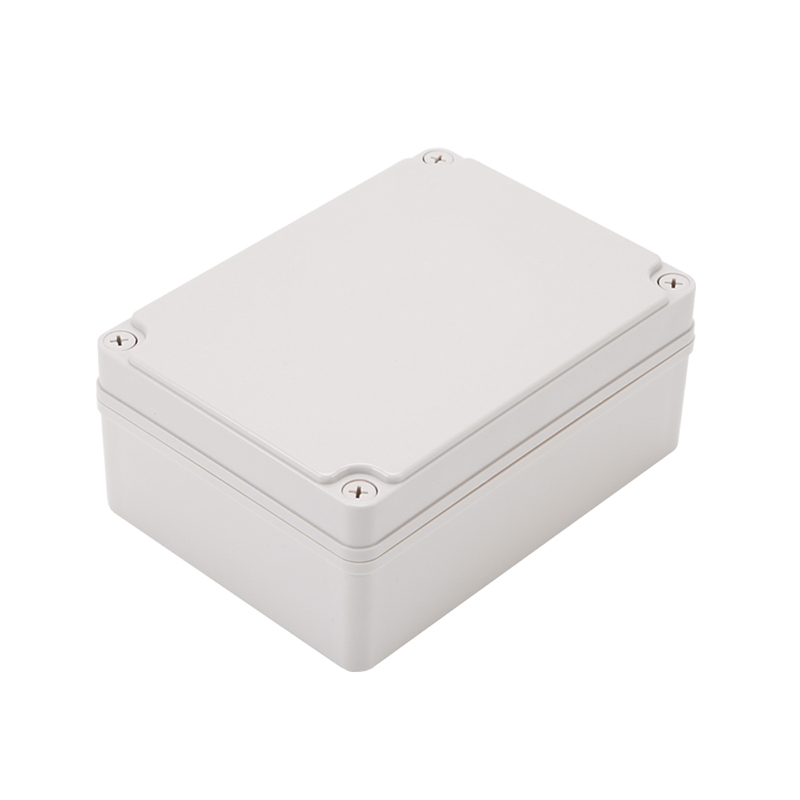

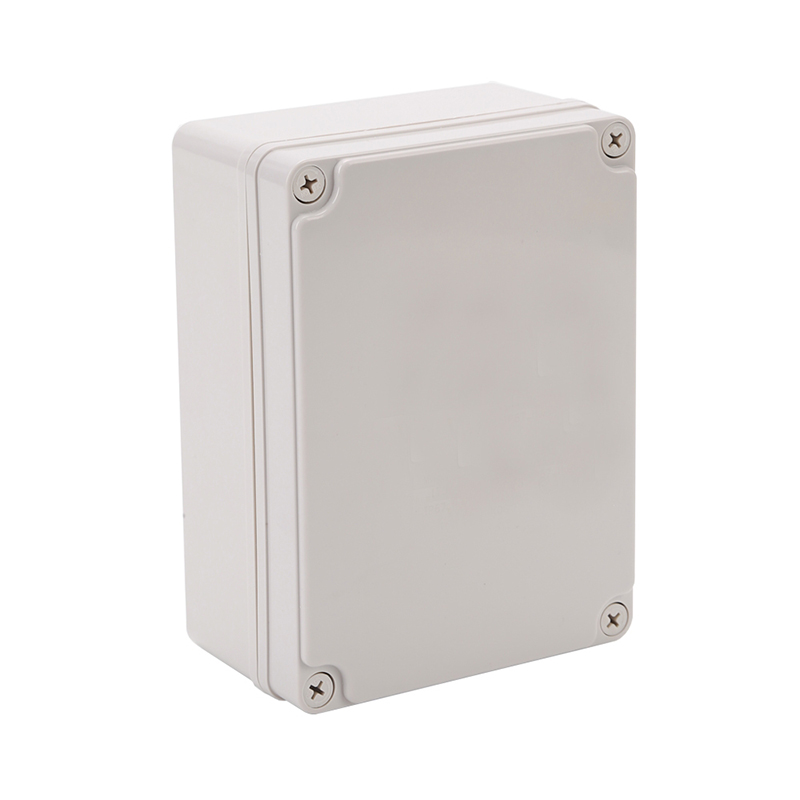

Application of Plastic Enclosures Junction Box: Suitable for harsh industrial environments of electrical and electronic control equipment, shipbuilding, petrochemical industry, large factories, coastal factories, wharf water treatment facilities, and various natural disaster prevention equipment.
Mode | 6.9″ x 5.1″ x 2.9″ |
Color | Light Grey |
Configuration | Without Knock-Outs |
Material | ABS |
Length | 6.9 in. (175mm) |
Width3.1 | 5.1 in. (128.5mm) |
Height | 2.9 in. (74.5mm) |
Weight | 0.71 lbs (0.32kg) |
Ingress Protection (EN 60529) | IP 67 |
Impact Resistance (EN 62262) | IK 08 |
Configuration | Smooth Wall |
Cover Locking | Screw |
Cover screws | ABS |
Tightening torque | 8.85 lbf⋅in (1N⋅m) |
Type | Junction Box |
Product details
- ABS mixture: ABS mixture has good comprehensive performance, impact resistance, good toughness, anti-aging, smooth and beautiful surface, and bright color.

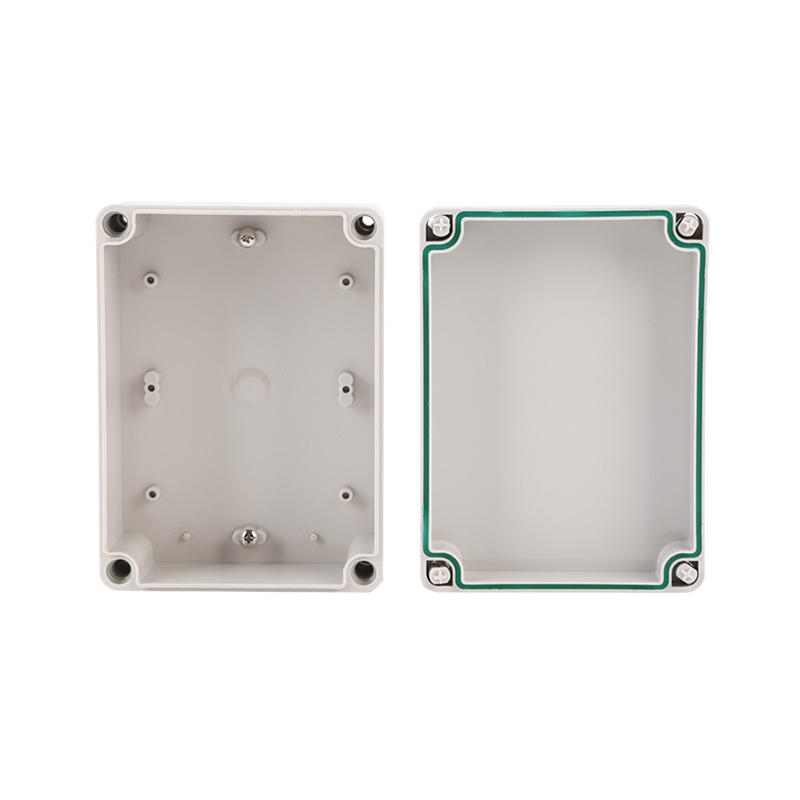

- Precision waterproof sealing ring: The waterproof sealing ring is made of polyurethane material, which is corrosion-resistant and not easy to deform, so that the seam between the upper cover and the bottom box fits closely to achieve a better waterproof effect.
- Screw columns at the bottom of the box: There are multiple installation columns at the bottom of the box body, which are convenient for fixing electrical components such as terminal blocks, guide rails, circuit boards, etc., and the installation is more firm.
- Plastic screws: fixed with plastic screws, it will not rust and deform outdoors for a long time, suitable for Phillips or flat-blade screwdrivers to twist the screws.
- Support processing and customization: Professional CNC machine tools can process and customize holes according to customer needs, with complete accessories and Seiko quality.
