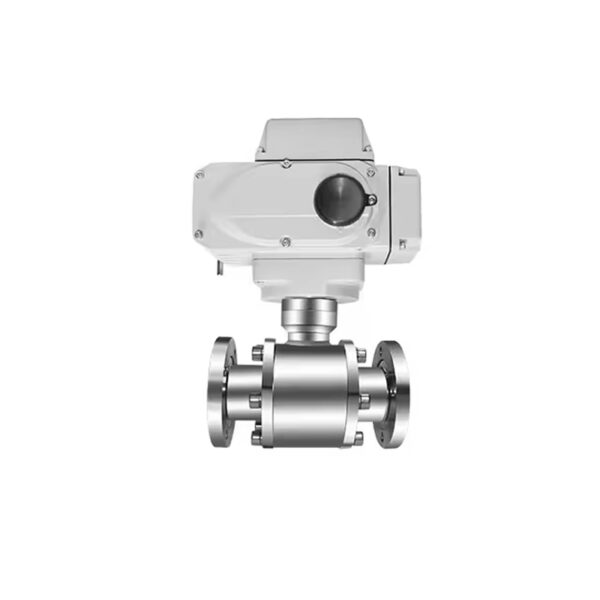

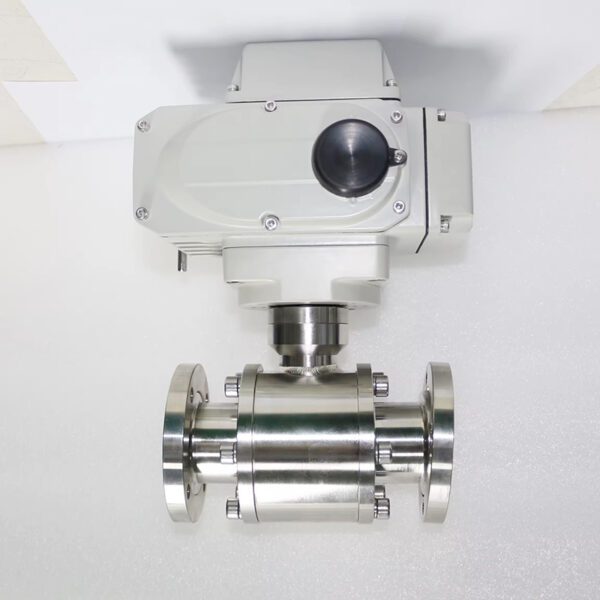

Industrial Shut-Off Valve Stainless Steel 304 or 316 Electric Vacuum Ball Valve Leak-Proof
Electric vacuum (pressure) ball valve adopts rotary electric and electronic regulating valve driving device, which can realize valve opening and closing by switching external power supply (manual index switch or computer control) or external input signal Or the control of the middle position, so as to achieve the purpose of turning on or cutting off the air flow in the vacuum pipeline.
$1,880.00
CompareIndustrial Shut-Off Valve Stainless Steel 304 or 316
Electric vacuum (pressure) ball valve adopts rotary electric and electronic regulating valve driving device, which can realize valve opening and closing by switching external power supply (manual index switch or computer control) or external input signal Or the control of the middle position, so as to achieve the purpose of turning on or cutting off the air flow in the vacuum pipeline.
The valve is straight-through and sealed by a spherical surface, so it can be used in both vacuum and low pressure conditions, and can be installed in any position. The applicable working medium is gas or liquid with acid and alkali.
|
Model
|
diameter（DN）
|
φD
|
φB
|
H
|
L
|
A
|
Flange standard
|
|
GUD-10A/KF
|
10
|
30
|
12.2
|
220
|
92
|
166
|
GB/T4982-2003
|
|
GUD-16A/KF
|
16
|
30
|
17.2
|
220
|
100
|
166
|
|
|
GUD-25A/KF
|
25
|
40
|
26.2
|
225
|
114
|
166
|
|
|
GUD-32A/KF
|
32
|
55
|
41.2
|
235
|
140
|
166
|
/
|
|
GUD-40A/KF
|
40
|
55
|
41.2
|
240
|
160
|
196
|
GB/T4982-2003
|
|
GUD-50A/KF
|
50
|
75
|
52.2
|
250
|
175
|
196
|
/
|
|
Model
|
diameter（DN）
|
φD
|
φB
|
H
|
L
|
A
|
n-φpc
|
|
GUD-10A
|
10
|
55
|
40
|
220
|
92
|
166
|
4-φ6.5
|
|
GUD-16A
|
16
|
60
|
45
|
220
|
100
|
166
|
4-φ6.5
|
|
GUD-20A
|
20
|
65
|
50
|
220
|
114
|
166
|
4-φ6.5
|
|
GUD-25A
|
25
|
70
|
55
|
225
|
114
|
166
|
4-φ6.5
|
|
GUD-32A
|
32
|
90
|
70
|
235
|
140
|
166
|
4-φ9
|
|
GUD-40A
|
40
|
100
|
80
|
240
|
165
|
196
|
4-φ9
|
|
GUD-50A
|
50
|
110
|
90
|
250
|
175
|
196
|
4-φ9
|
|
GUD-63A
|
63
|
130
|
110
|
310
|
186
|
196
|
4-φ9
|
|
GUD-80A
|
80
|
145
|
125
|
300
|
198
|
196
|
8-φ9
|
|
GUD-100A
|
100
|
165
|
145
|
355
|
220
|
255
|
8-φ9
|
|
GUD-125A
|
125
|
200
|
175
|
375
|
266
|
255
|
8-φ11
|
|
GUD-150A
|
150
|
225
|
200
|
400
|
296
|
255
|
8-φ11
|
|
GUD-200A
|
200
|
285
|
260
|
500
|
390
|
310
|
12-φ11
|
|
GUD-250A
|
250
|
335
|
310
|
560
|
470
|
355
|
12-φ11
|
|
GUD-300A
|
300
|
425
|
395
|
600
|
530
|
355
|
12-φ14
|
Based on 0 reviews
Be the first to review “Industrial Shut-Off Valve Stainless Steel 304 or 316 Electric Vacuum Ball Valve Leak-Proof”
Related products
-
Valves
Diaphragm Valve Manual Hygienic Straight Direct Way Tri-Clamp
Body Material :SS316
Inside Surface treatment:Ra<0.8μm.
Seat Material:Silicone, EPDM, EPDM+PTFE
Connection method:Clamped, Threaded, Welded, Flanged
Size:1/2″-4″, DN8 to DN100, other size can be customized
Norms:DIN/SMS/3A/ISO/IDF/RJT/BPE/DANSK
Max Pressure:10 bar
Application:Food, beverage, dairy, chemical, pharmaceutical fields, etcSKU: n/a -
-
Valves

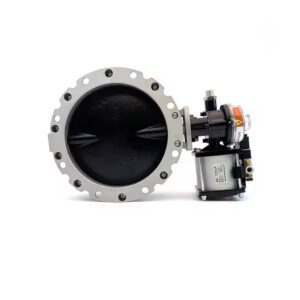

Powder Butterfly Valves DN300 with Solenoid Valves Assembly Pneumatic Actuator Valve
