Industrial Pomegranate Juice Processing System Cold Press Line

Product introduction of Pomegranate Juice Processing System

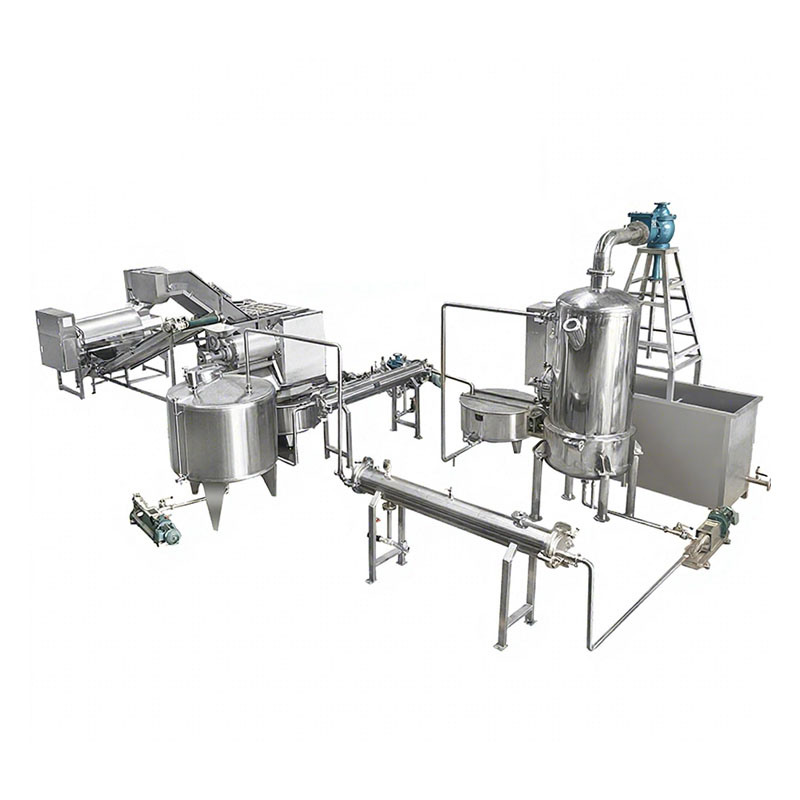

Pomegranate juice processing system is a fully automated industrial solution for extracting juice from fresh pomegranates through crushing, pressing, and separation technology.

The system combines stainless steel crushing rollers, elastic rubber pressing components, and screw pressing mechanisms to ensure high juice yield and low seed damage, making it ideal for commercial juice production factories.

Working principle

Step 1. Raw Material Feeding

Fresh pomegranates are fed into hopper for processing.

Step 2. First Stage Crushing

Stainless steel rollers crush pomegranates into small pieces.

Step 3. Second Stage Crushing

Elastic rubber rollers further break fruit with minimal seed damage.

Step 4. Juice Separation

Crushed material enters separation system for pulp and juice separation.

Step 5. Spiral Pressing

Screw press applies pressure to extract juice efficiently.

Step 6. Filtration Process

Juice passes through filter screen into collection tank.

Step 7. Waste Discharge

Peels and residues are discharged automatically from outlet.

Product Parameter Table

Capacity	1 t/h
Turn sieve diameter	400 mm
Power	4.8 kW
Weight	950 kg
Dimension	2100*800*2035 mm

Traditional Juice Machine vs Processing System

Main Features

• Two-stage crushing system improves juice extraction efficiency
• Stainless steel crushing rollers ensure durability and hygiene
• Elastic rubber rollers reduce seed damage during processing
• Adjustable roller gap improves processing flexibility
• Spiral pressing system increases juice yield rate
• Frequency control separation system ensures stable operation
• Food-grade stainless steel structure for safe production
• Continuous industrial processing suitable for large factories

Application Scenarios

• For juice production factories needing high yield, system ensures efficient pomegranate juice extraction
• For seed damage concerns, system uses soft rubber rollers for gentle processing
• For low juice recovery issues, system improves extraction efficiency through spiral pressing
• For industrial production demand, system enables continuous high-capacity operation
• For hygiene requirements, system uses stainless steel food-grade materials
• For inconsistent juice quality, system provides stable separation and filtration

Why Choose This Pomegranate Juice Processing System

• Maximizes juice yield through dual-stage crushing technology
• Reduces seed damage and improves juice quality
• Ensures continuous industrial-scale production efficiency
• Uses food-grade stainless steel for hygiene safety
• Adjustable system design for different fruit varieties
• Stable performance with frequency-controlled operation
• Low energy consumption and high extraction efficiency

FAQ

1. What is a pomegranate juice processing system used for?

It is used to extract juice from pomegranates through crushing, pressing, and separation processes.

2. How does industrial pomegranate juice extractor machine work?

It uses dual-stage crushing and spiral pressing to extract juice efficiently.

3. What is the juice yield rate of pomegranate processing system?

It depends on raw material but generally provides high extraction efficiency.

4. Does pomegranate juice system damage seeds during processing?

No, rubber rollers reduce seed damage significantly.

5. What equipment is included in juice processing system?

It includes crusher, separator, screw press, filter, and juice collection system.

6. Is pomegranate juice processing system suitable for factories?

Yes, it is designed for industrial-scale juice production plants.

7. How does spiral press improve juice extraction?

It applies continuous pressure to increase juice yield efficiency.
