Industrial Olive Pitting Machine Product Introduction

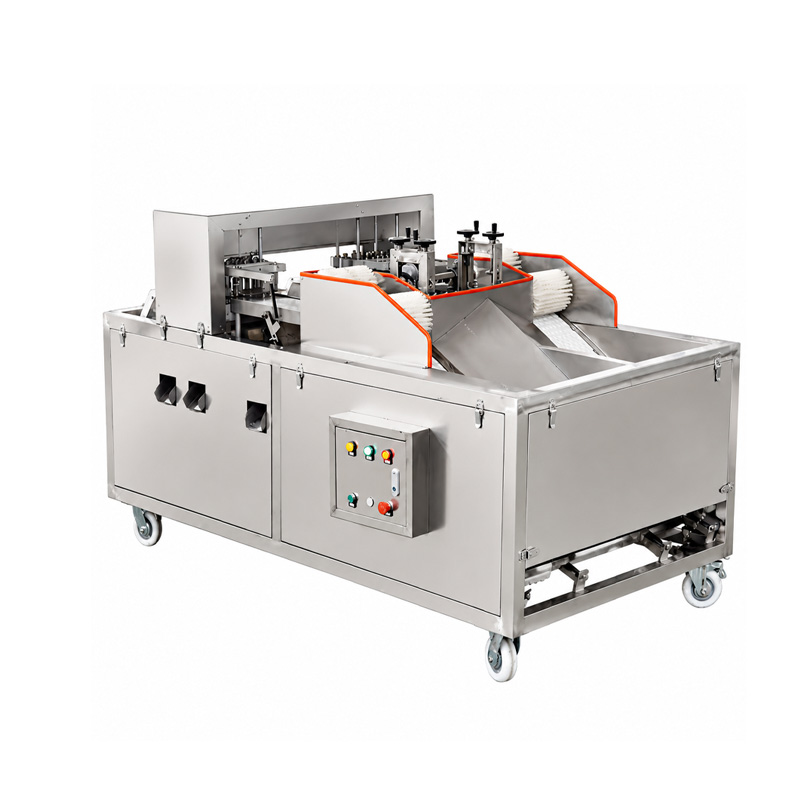

The Industrial Olive Pitting Machine for Food Processing provides an efficient solution for removing pits from olives before further processing. It is designed for continuous commercial production and helps food manufacturers reduce manual pitting work while improving processing consistency.

During operation, olives are fed into the machine and automatically positioned as they move through the processing section. A motor-driven punching mechanism moves vertically and uses round pitting pins to separate the pits from the fruit. This controlled mechanical process helps remove the pit while maintaining the fruit shape for subsequent processing.

The machine features a dual-track pitting design, allowing different fruit sizes to be processed with suitable templates. According to the reference configuration, 24-hole templates are available for Ø16 mm and Ø19 mm fruit, while 16-hole templates are available for Ø22 mm and Ø25 mm fruit. A soft-brush system is also incorporated to remove surface impurities without unnecessarily damaging the fruit.

Working Principle

1. Fruit Feeding
Fresh olives are poured into the feeding section, where they enter the continuous processing system.

2. Automatic Positioning
The feeding and conveying mechanism guides individual fruits into the corresponding positioning holes, preparing them for accurate pitting.

3. Precision Pit Removal
The motor drives the upper and lower punching mechanism. Round pitting pins pass through the positioned fruit to remove the internal pits while helping maintain the shape of the flesh.

4. Continuous Discharge
After pitting, the processed fruit continues to the discharge area for collection or transfer to subsequent washing, juicing, preserving, filling, or packaging processes.

Main Features

Dual-Track Pitting System
The dual-track configuration supports efficient continuous processing and accommodates different fruit specifications with interchangeable templates.

High Processing Capacity
With a reference output of approximately 36,000 pieces per hour, the machine is suitable for commercial and industrial fruit processing operations.

Precision Pitting Mechanism
Round pitting pins accurately remove the internal pit while helping reduce unnecessary damage to the surrounding fruit flesh.

Automatic Fruit Positioning
The positioning mechanism reduces the need to manually align each fruit before pitting, helping improve production efficiency.

Multiple Fruit Size Options
Different pitting templates can be selected according to fruit diameter, including Ø16 mm, Ø19 mm, Ø22 mm, and Ø25 mm in the reference configuration.

Soft Brush Cleaning
Integrated soft brushes help remove surface impurities during processing while minimizing mechanical damage to the fruit.

Easy Operation
The continuous mechanical structure simplifies operation and makes the equipment suitable for batch fruit processing.

Technical Specifications

Why Choose This Olive Pitting Machine

• High-Efficiency Pitting
  Continuous feeding and mechanical pitting make the equipment suitable for factories processing large quantities of fruit.
• Better Fruit Appearance
  The precision pin-pitting mechanism is designed to remove the pit while helping maintain the original fruit shape.
• Reduced Manual Handling
  Automatic positioning reduces repetitive manual fruit alignment and makes continuous production easier.
• Flexible Fruit Size Processing
  Multiple template specifications allow the machine to accommodate different olive or similar fruit diameters.
• Suitable for Production Line Integration
  The machine can operate independently or form part of a complete fruit processing line with washing, inspection, juicing, preserving, and packaging equipment.

Applications

The olive pitting machine can be used in a variety of commercial fruit processing applications, particularly where large quantities of small fruits need to be prepared before further production.
Typical applications include:

• Olive processing – removing pits before preserving, seasoning, filling, or further processing.
• Olive juice processing – preparing suitable raw materials before crushing or juice extraction.
• Preserved fruit production – preparing pitted fruits for brining, marinating, or packaging.
• Fruit processing factories – continuous pit removal as part of a larger preprocessing system.
• Beverage production – preparing fruits before crushing, pulping, or juice extraction.

The reference manufacturer also uses similar pitting equipment in an integrated process covering fruit pitting, washing, and juice extraction.

FAQ

Q1: What is an olive pitting machine used for?
It is used to mechanically remove the internal pits from olives before further processes such as preserving, juicing, seasoning, or packaging.

Q2: What is the processing capacity?
The reference machine has a capacity of approximately 36,000 pieces per hour.

Q3: Can it process olives of different sizes?
Yes. The reference configuration includes different template sizes for approximately Ø16, Ø19, Ø22, and Ø25 mm fruits.

Q4: Will the machine damage the olives during pitting?
The round-pin pitting mechanism is designed to remove the pit while helping maintain the fruit shape and minimize unnecessary flesh damage.

Q5: How are olives positioned before pitting?
The fruit is automatically positioned during continuous feeding, reducing the need for individual manual placement.

Q6: Does the machine include a cleaning function?
It incorporates soft brushes that can help remove impurities from the fruit surface during processing.

Q7: Can the machine be integrated into an olive processing line?
Yes. It can be combined with washing, conveying, juice extraction, preservation, and packaging equipment according to the final product.

Q8: Can the machine configuration be customized?
The processing template and electrical configuration can be selected according to fruit size and project requirements. For any configuration beyond the reference specifications, it is best to confirm the actual production requirements before manufacturing.
