Industrial 5 Axis Waterjet Stone Cutting Machine Price

5 Axis Waterjet Stone Cutting Machine Product Introduction

The Industrial 5 Axis Waterjet Stone Cutting Machine is a high-end CNC cold cutting solution specially designed for precision processing of granite, marble, quartz stone, sintered stone, ceramic slabs, artificial stone, glass, metal, and composite materials. Combining ultra-high-pressure waterjet technology with advanced 5-axis CNC linkage control, this industrial waterjet cutting system delivers exceptional cutting precision, smooth edge quality, and complex bevel cutting capability for modern stone fabrication industries.

Compared with traditional bridge saw cutting machines and thermal cutting equipment, the 5 axis CNC waterjet stone cutting machine uses ultra-high-pressure water mixed with garnet abrasive to achieve cold cutting without thermal deformation, edge burning, cracking, or material discoloration. This significantly improves finished product quality while reducing secondary polishing and material waste.

Industry Pain Points

1. Traditional Stone Cutting Causes Edge Chipping

Many traditional bridge saws and blade cutting machines easily produce:
• Broken edges
• Surface cracks
• Uneven cutting quality
• High polishing workload

Especially when processing expensive marble, quartz, and sintered stone slabs, edge defects directly increase production costs.

2. Complex Shapes Are Difficult To Process

Conventional cutting equipment struggles with:
• Curved contours
• Bevel cutting
• 3D angle cutting
• Artistic mosaic designs

This limits customization capability and reduces market competitiveness.

3. High Material Waste Reduces Profit

Stone materials are expensive. Poor nesting and inaccurate cutting often lead to:
• Large offcuts
• Low slab utilization
• Increased raw material consumption
• Higher production costs

4. Heat Cutting Damages Materials

Laser and plasma cutting generate high temperatures that may cause:
• Burn marks
• Thermal deformation
• Internal cracking
• Material discoloration

These problems are unacceptable for premium decorative stone processing.

Our Solution

Our Industrial 5 Axis Waterjet Stone Cutting Machine solves these problems through advanced cold cutting technology and intelligent CNC automation.

Core Advantages

• Cold cutting without heat affected zones
• No edge cracking or burning
• Extremely smooth cutting edges
• High precision 5-axis bevel cutting
• Intelligent nesting to reduce material waste
• Strong compatibility with complex stone processing tasks
• Lower maintenance cost compared with traditional cutting systems
• Cleaner and safer workshop environment
• Stable continuous industrial production capability

The machine helps manufacturers:
• Improve finished product quality
• Increase production efficiency
• Reduce labor dependency
• Lower operating costs
• Enhance customization capability
• Increase market competitiveness

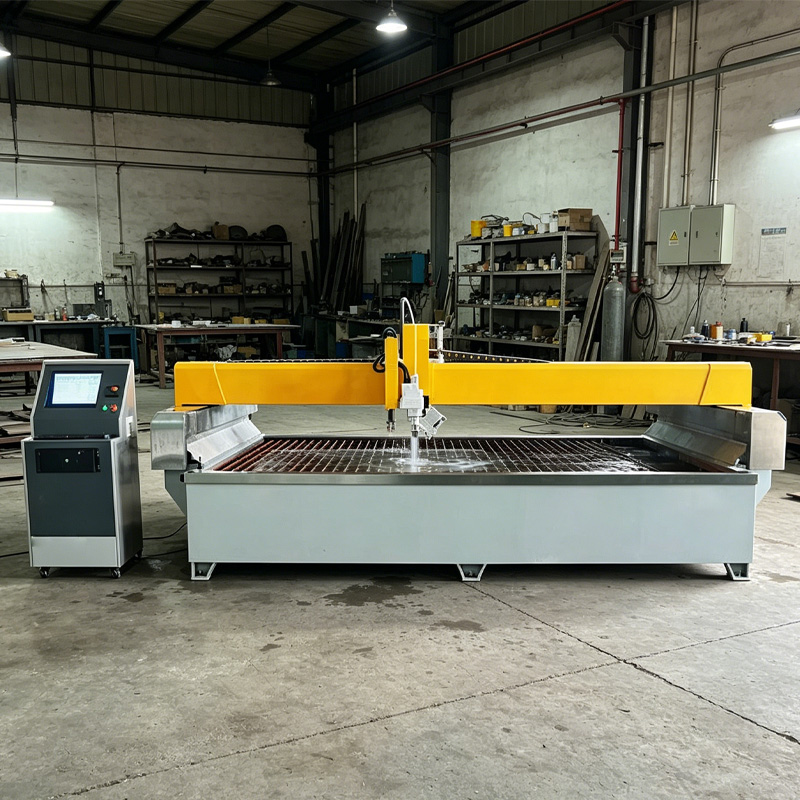

System Overview

The complete Industrial 5 Axis Waterjet Stone Cutting System mainly includes:

• Ultra-high-pressure intensifier pump
• 5-axis CNC cutting head
• Heavy-duty gantry structure
• Intelligent CNC control system
• Automatic abrasive feeding system
• Servo motion control system
• Water circulation and filtration system
• Precision linear guide rail system
• Automatic lubrication system
• Industrial cutting platform
• CAD/CAM nesting software

The CNC control system supports:
• DXF drawing import
• Automatic programming
• Intelligent path generation
• Remote diagnostic support
• Multi-language operation interface

Process Description

Step 1 – CAD Design Import

The operator imports stone cutting drawings into the CNC control software.

Step 2 – Automatic Nesting Optimization

The software automatically optimizes cutting layouts to maximize material utilization and reduce waste.

Step 3 – Material Positioning

Stone slabs are placed onto the cutting table and aligned for precise processing.

Step 4 – Ultra-High Pressure Generation

The intensifier pump pressurizes water to extremely high pressure levels for industrial cutting applications.

Step 5 – Abrasive Mixing

Garnet abrasive is mixed with the high-pressure water stream to form a powerful cutting jet.

Step 6 – 5 Axis Precision Cutting

The CNC cutting head performs:
• Straight cutting
• Angle cutting
• Curved contour processing
• Bevel edge cutting
• Complex shape fabrication

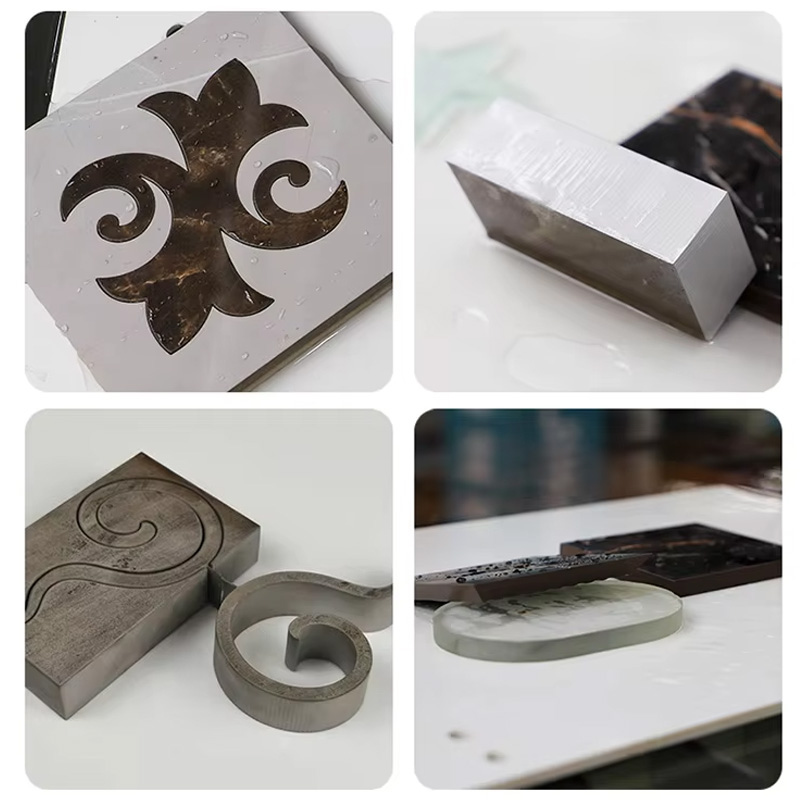

Step 7 – Finished Product Output

The final products feature:
• Smooth edges
• High dimensional accuracy
• Minimal secondary polishing requirements
• Excellent surface quality

Why Choose This Equipment

• True industrial 5 axis CNC linkage technology supports complex bevel cutting, curved contour processing, and multi-angle stone fabrication for high-end customized projects

• Ultra-high-pressure cold cutting technology prevents thermal deformation, burn marks, cracking, and material discoloration, ensuring premium finished product quality

• Excellent cutting precision and smooth edge performance reduce secondary polishing workload and improve overall production efficiency

• Intelligent CAD/CAM software supports automatic nesting and tool path optimization, helping manufacturers reduce raw material waste and improve slab utilization

• Heavy-duty gantry structure and precision servo drive system ensure stable operation and long-term cutting accuracy during continuous industrial production

• One machine can process granite, marble, quartz stone, ceramic slabs, sintered stone, glass, metal, and composite materials, greatly improving production flexibility

• Automatic abrasive feeding system and intelligent pressure control system improve cutting consistency while reducing operator workload

• Compared with traditional bridge saw cutting machines, the waterjet cutting system offers lower maintenance costs, less consumable wear, and better finished edge quality

• Cleaner cold cutting process generates less dust pollution, improves workshop safety, and helps factories meet modern environmental standards

Technical Specifications

Item	Specification
Product Name	Industrial 5 Axis Waterjet Stone Cutting Machine
Cutting Type	Ultra-High Pressure Abrasive Waterjet Cold Cutting
CNC System	Industrial 5 Axis CNC Control System
Axis Configuration	X / Y / Z / A / C 5-Axis Linkage
Cutting Head Type	Dynamic 5 Axis Bevel Cutting Head
Maximum Working Pressure	420MPa – 600MPa
Pressure Control	Intelligent Automatic Pressure Regulation
Cutting Accuracy	±0.05mm
Repeat Positioning Accuracy	±0.03mm
Maximum Cutting Thickness	200mm+ (Depending on Material)
Cutting Speed	Adjustable According to Material Type & Thickness
Table Structure	Heavy-Duty Welded Steel Gantry Structure
Working Table Size	1500×3000mm / 2000×4000mm / 2500×6000mm / Customized
Drive System	Precision Servo Motor Drive
Motion Transmission	Ball Screw + Linear Guide Rail
Abrasive Type	Garnet Abrasive
Abrasive Feeding System	Fully Automatic Abrasive Delivery System
Cooling System	Industrial Water Cooling System
Lubrication System	Automatic Lubrication System
Water Supply Requirement	Clean Industrial Water
Supported Materials	Granite, Marble, Quartz, Ceramic, Glass, Metal, Artificial Stone
Supported File Formats	DXF / DWG / CAD Files
Programming Method	CAD/CAM Automatic Programming
Control Interface	Touch Screen Industrial Control Panel
Voltage Options	220V / 380V / 415V / 440V
Frequency	50Hz / 60Hz
Software Functions	Automatic Nesting, Tool Path Optimization, Angle Compensation
Cutting Capability	Straight Cutting, Arc Cutting, Bevel Cutting, 3D Contour Cutting
Edge Quality	Smooth Cutting Surface With Minimal Secondary Processing
Operation Mode	Fully Automatic CNC Operation
Dust Pollution	Low Dust Cold Cutting Process
Cooling Effect	No Thermal Deformation Or Burn Marks
Installation Support	Remote Technical Guidance / Overseas Support Optional
After-Sales Service	Lifetime Technical Support
Application Industries	Stone Fabrication, Construction, Interior Decoration, Ceramic Processing
Optional Functions	Automatic Loading System, Water Filtration System, Remote Monitoring
Machine Condition	Brand New Industrial Equipment

Main Features

• Industrial heavy-duty machine frame
• True 5-axis CNC linkage system
• Ultra-high-pressure cold cutting technology
• Intelligent CAD/CAM programming software
• Precision servo drive control
• Automatic abrasive feeding system
• Smooth edge cutting performance
• High material utilization efficiency
• Stable industrial continuous operation
• Multi-material processing capability
• Intelligent nesting optimization
• Remote technical support available

Engineering Advantages

• Heavy-duty gantry structure improves cutting stability and long-term durability
• Advanced 5-axis linkage technology supports complex bevel and irregular contour cutting
• Ultra-high-pressure waterjet system delivers cleaner edges and reduces secondary polishing
• Intelligent CNC motion control improves positioning precision and cutting consistency
• Precision linear guide rails and servo motors ensure smoother movement and higher cutting accuracy
• Intelligent CAD/CAM nesting software helps reduce raw material waste and improve slab utilization
• Cold cutting technology prevents thermal deformation and protects expensive stone materials
• Modular system design simplifies maintenance and reduces long-term operating costs
• Automatic lubrication and industrial cooling systems extend equipment service life
• Suitable for continuous industrial production with stable and reliable operation performance

Application Scenarios

• Granite countertop cutting and customized kitchen island fabrication
• Marble decorative wall panel processing for luxury villas and hotels
• Quartz slab cutting for kitchen and bathroom customization projects
• Ceramic slab and porcelain tile bevel cutting applications
• Artistic mosaic and medallion cutting for architectural decoration
• Sink hole cutting, faucet hole drilling, and countertop edge processing
• Curved contour processing for customized stone decoration projects
• Stair panel fabrication and floor decoration material cutting
• Artificial stone and sintered stone precision processing
• High-end customized building material manufacturing applications

Industry Applications

• Stone fabrication and countertop manufacturing industry
• Marble and granite processing factories
• Quartz stone processing industry
• Ceramic slab and porcelain tile manufacturing industry
• Architectural decoration and commercial construction industry
• Luxury interior decoration and customized furniture manufacturing sector
• Monument, memorial, and artistic stone processing industry
• CNC intelligent manufacturing workshops and industrial processing factories
• Building material engineering and customized fabrication industry
• High-end residential, hotel, shopping mall, and commercial engineering projects

FAQ

1. What materials can this 5 axis waterjet cutting machine process?

The machine can cut granite, marble, quartz stone, ceramic, porcelain, glass, metal, artificial stone, and composite materials.

2. What is the biggest advantage of waterjet cutting?

Waterjet cutting is a cold cutting process that produces no thermal damage, no burn marks, and no material deformation.

3. Can the machine perform bevel cutting?

Yes. The true 5-axis CNC system supports multi-angle bevel cutting and complex contour processing.

4. Does the machine support customized table sizes?

Yes. Working table dimensions can be customized according to customer production requirements.

5. What abrasive material is used?

Garnet abrasive is commonly used because of its high hardness and excellent cutting performance.

6. Is operator training provided?

Yes. We provide installation guidance, operation training, and technical support services.

7. Can the machine process thick stone slabs?

Yes. The machine can process thick stone materials depending on pressure configuration and cutting requirements.

8. Does the machine require frequent maintenance?

No. The system is designed for industrial continuous operation with low maintenance requirements.

9. How does the machine improve material utilization?

The intelligent nesting software automatically optimizes cutting layouts to reduce offcuts and maximize slab usage.

10. Is the machine suitable for customized projects?

Absolutely. The 5-axis CNC system is ideal for customized countertops, artistic stone designs, and irregular contour processing.

11. What industries commonly use this machine?

Stone fabrication, architectural decoration, ceramic processing, monument manufacturing, and industrial material processing industries widely use this equipment.
