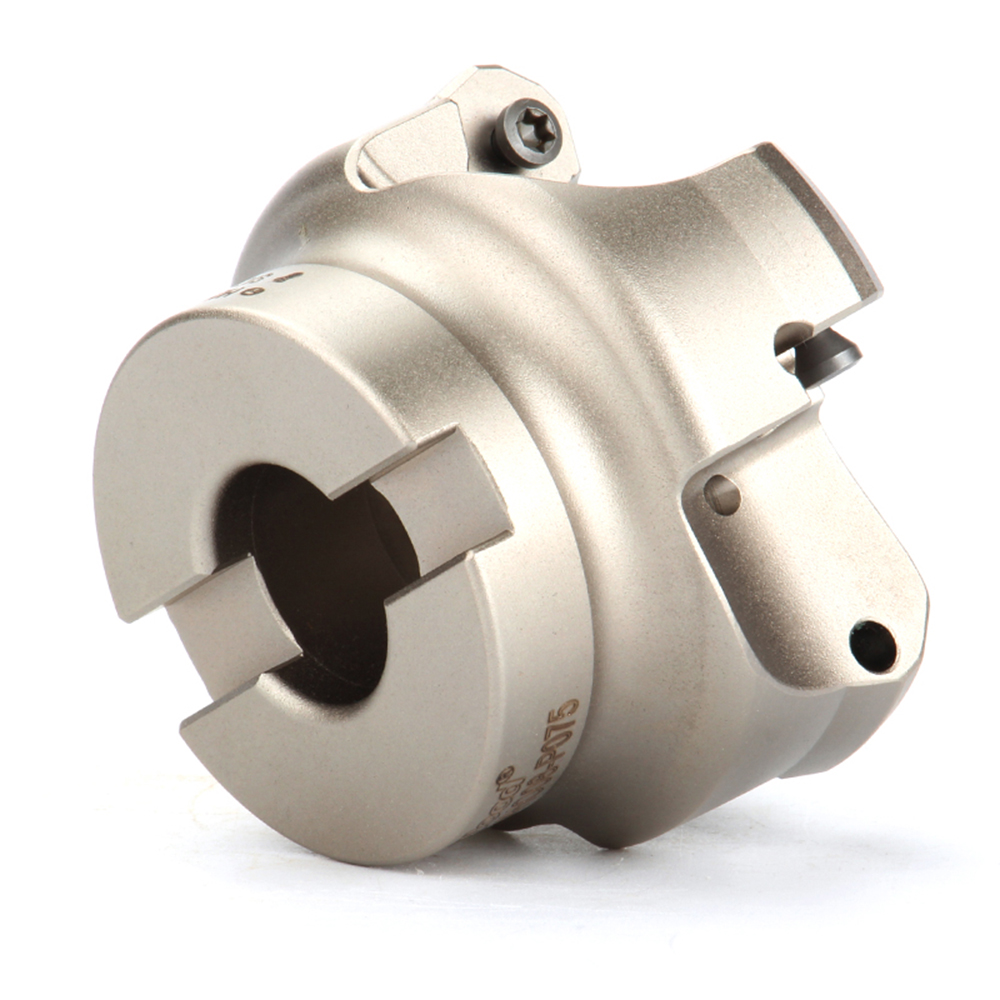

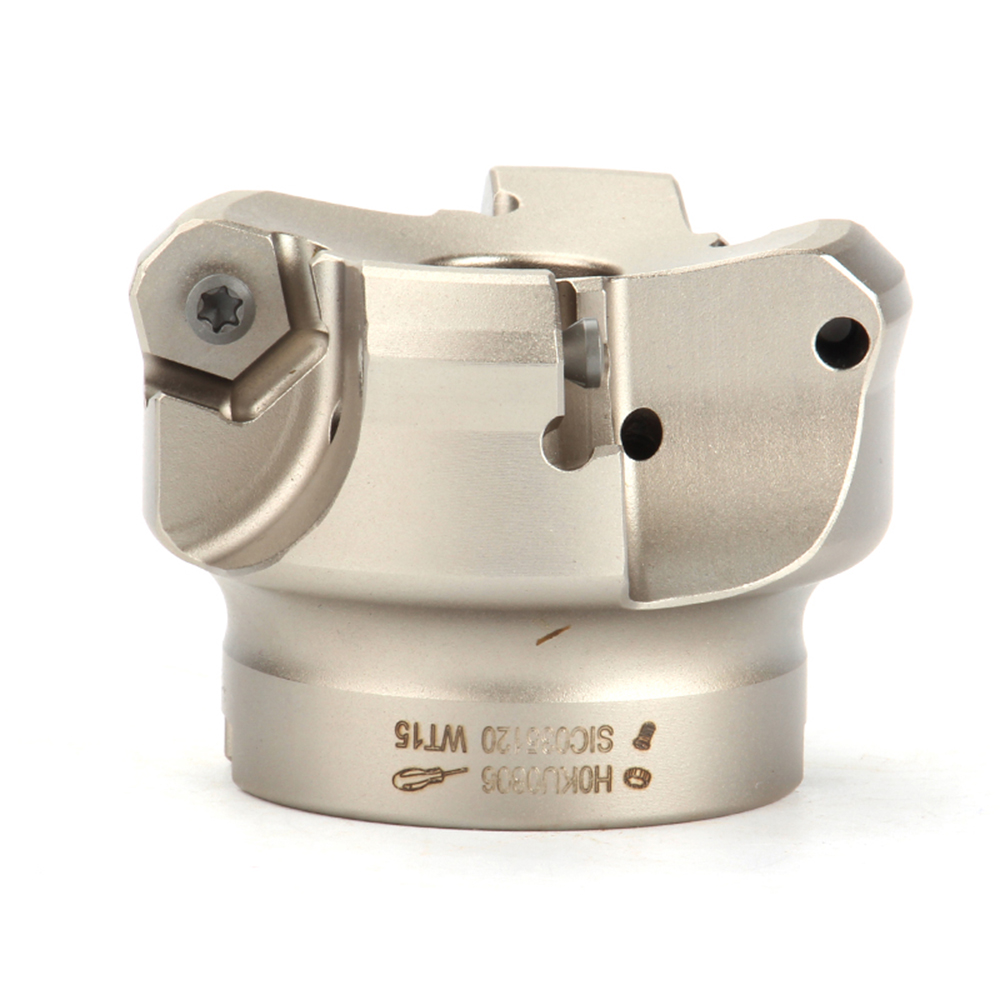

Indexable Face Mill Cutter 2″ x 3/4″ 45° Coolant Through 4 Flute HOKU08



The following schematic diagrams and product pictures are only for reference.

If you have any questions, please contact us.

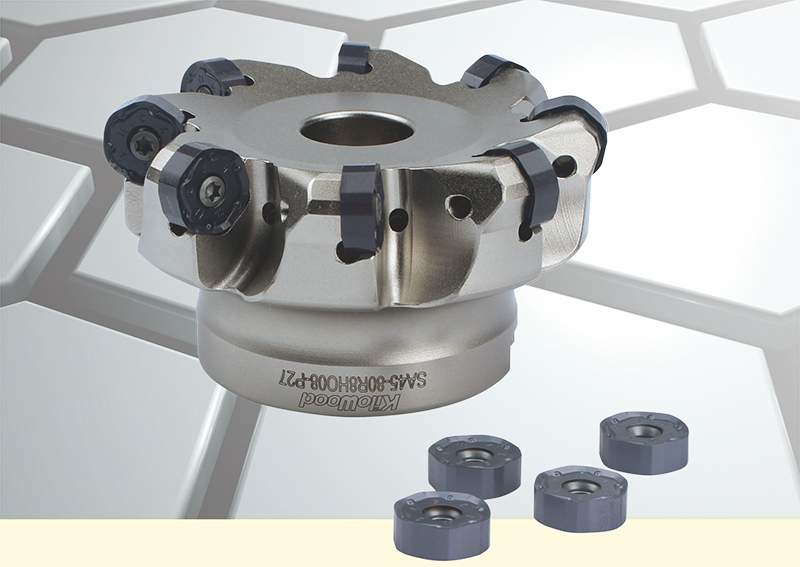

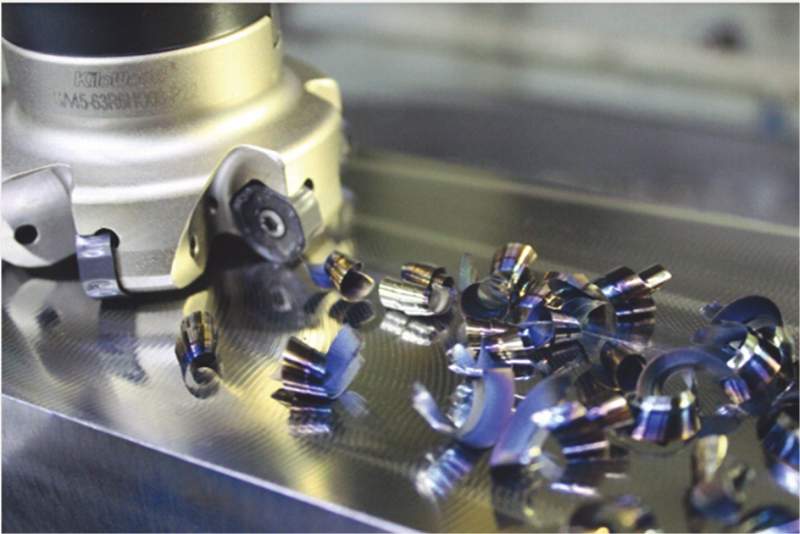

Kilowood SA Series Milling Cutters are the most comprehensive face milling boosters on the market today. Twelve true



cutting edges per insert mean low cost-per-edge and high productivity. With beyond premium milling grades, you will see



up to 30% higher metal removal rates (MRR), 25% lower cutting forces due to real soft cutting action, and up to 35% better



tool life in light to heavy machining.

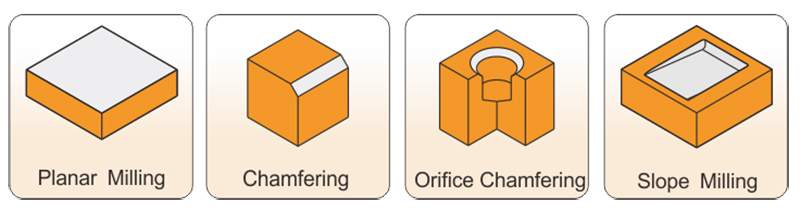

1. Suitable for most face milling applications on steel, stainless steel, and cast iron.



2. All critical surfaces precision ground.



3. Made from alloy steel for excellent vibration control.



4. Torx wrench and insert screws are included.



5. Inserts are not included but available (HOKU0806..).



6. Reduces vibration on long overhang applications.

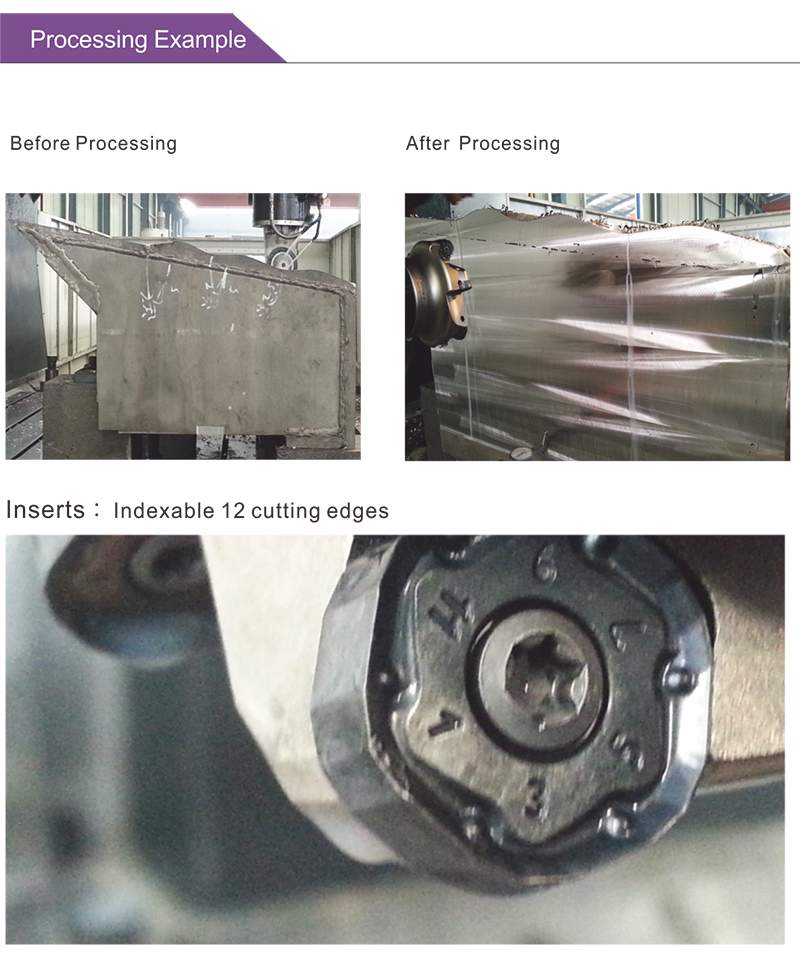

7. Octagonal double side insert with 12 cutting edges is the most economical insert on the market for face milling.







8. Negative radial rake angle and axial rake angle structure combined with thick HOKU insert body improves cutter overall

resistance to impact and toughness.

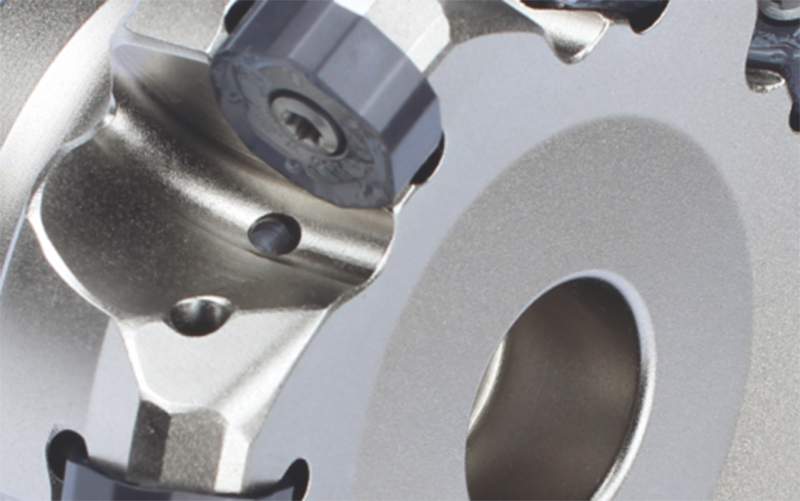

9. Unique insert screw hole design to improve clamping rigidness.







Matched Insert and Tool Holder Needed,Please Click The Follow Link to the Item Page



Inserts:

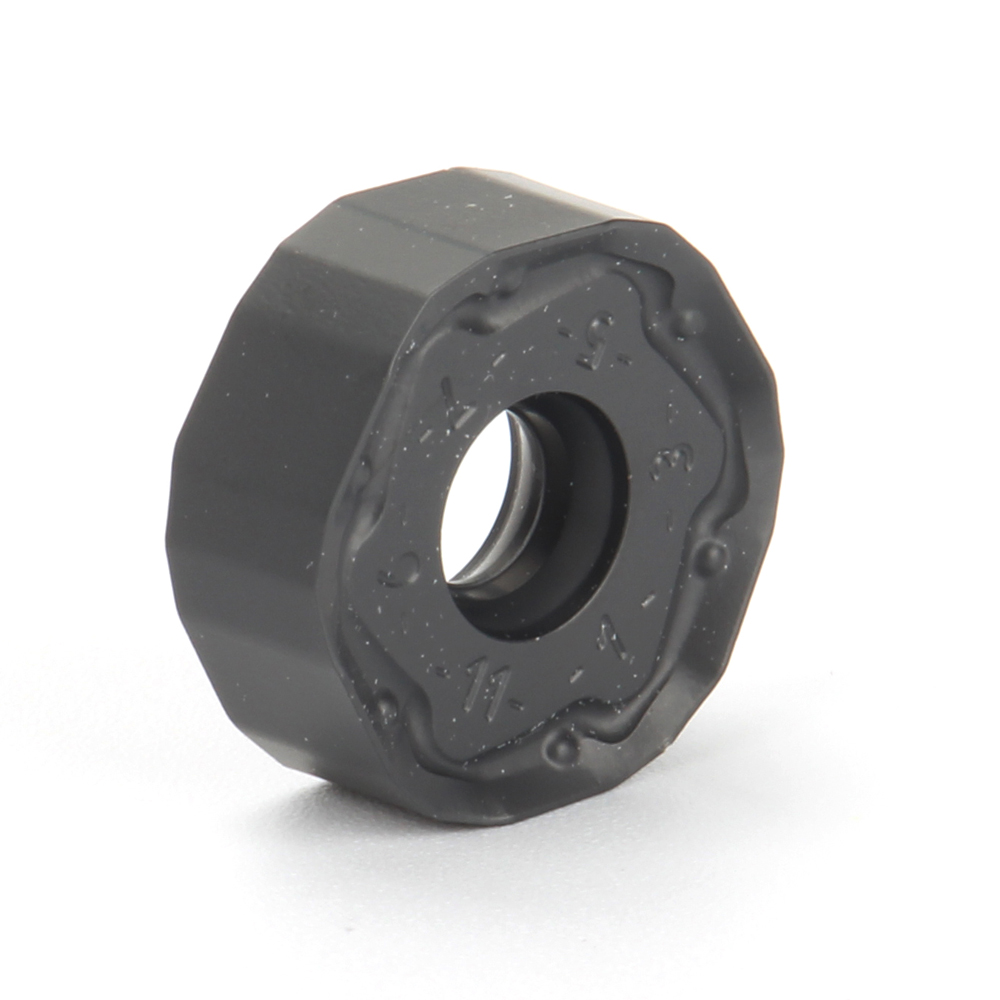

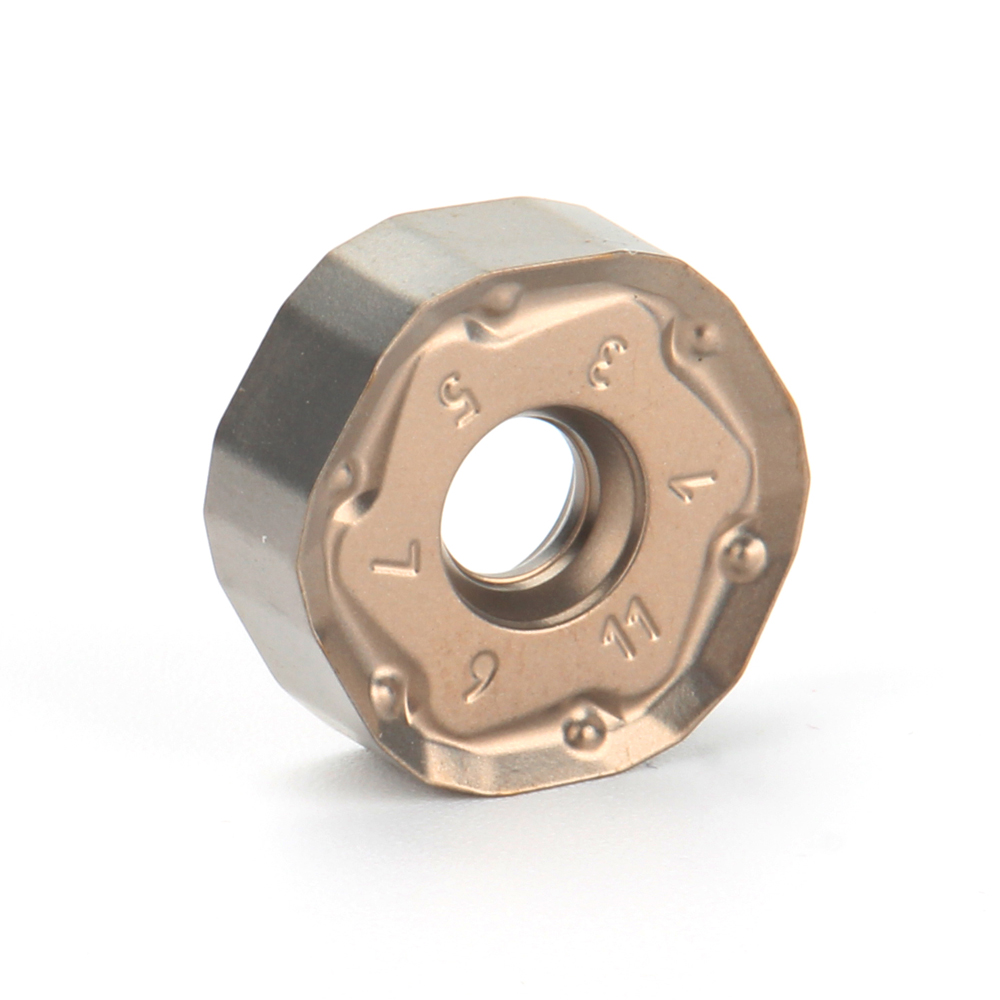

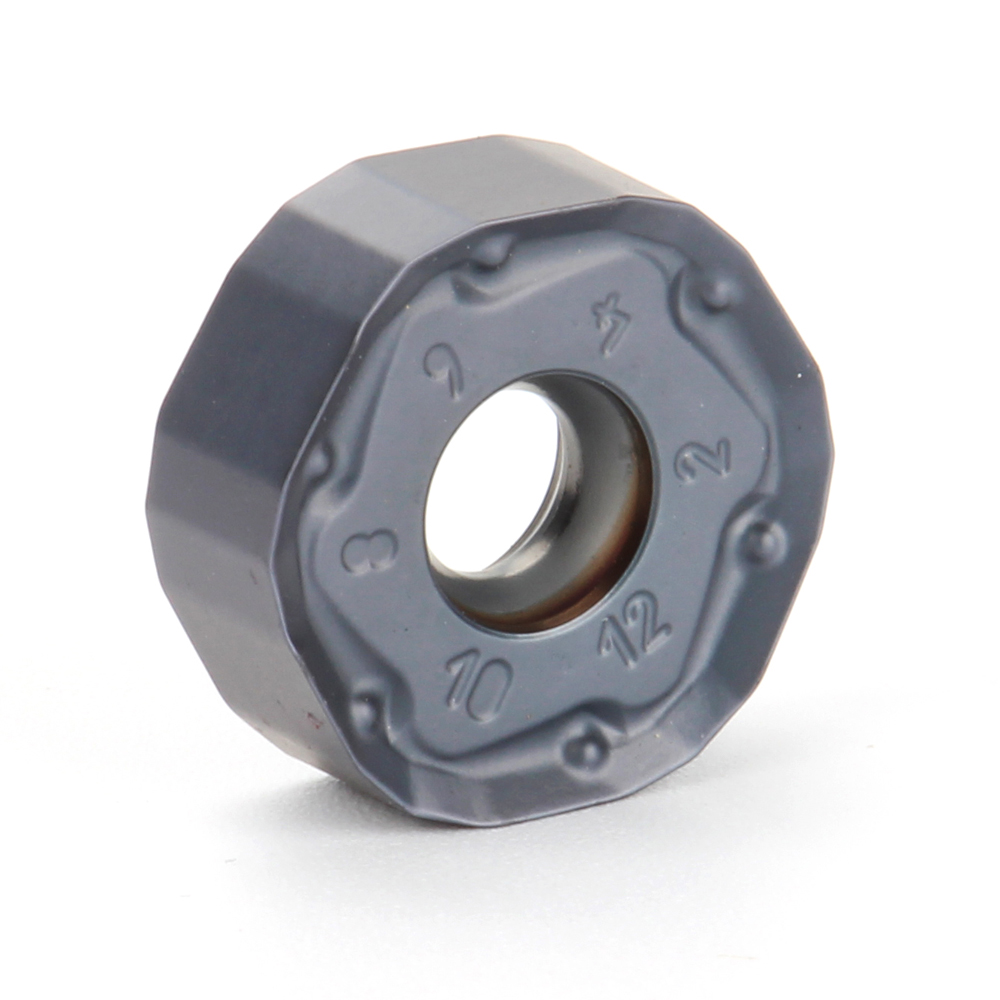

     HOKU0806AZER-UL CSM35           HOKU0806AZER-UM CKM15        HOKU0806AZER-UL PMM35



Matched Shell Mill Tool Holder:

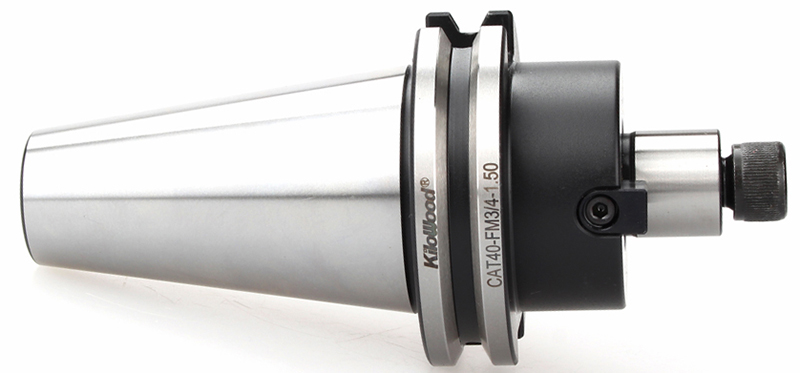

CAT40-FM3/4-1.50

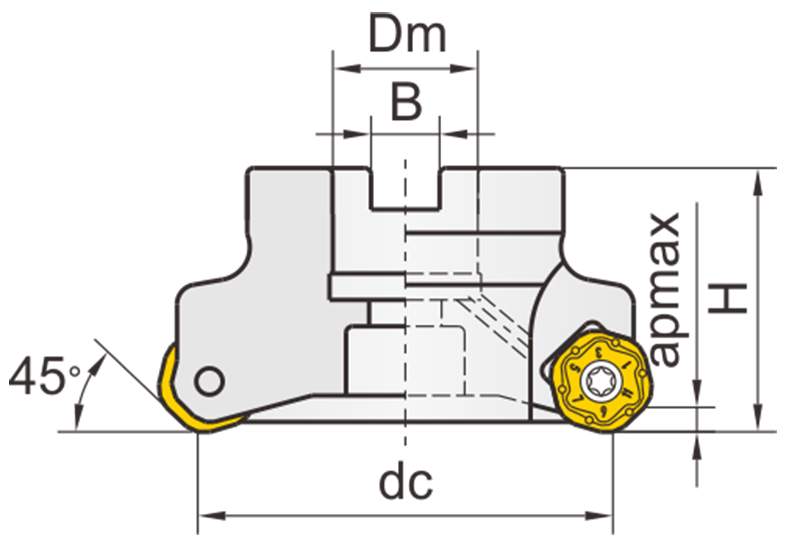

Condition	Brand-New	B	0.32″
Brand	Kilowood	H	1.75″
SKU	Q000039274	Number of Teeth	4
Type	SA45-200R4H008-P075	Insert	H0KU0806…
apmax	0.14″	Coolant Through	Yes
dc	2.00″	Net Weight	0.86 lb
Dm	0.75″	Gross Weight	1.20 lb
