driven type
|
Electric
|
|
Voltage
|
380V
|
|
automatic grade
|
Automatic
|
|
packaging material
|
plastic, Metal, Glass
|
|
application
|
Beverage
|




















Subtotal: $110,313.30
For more details,please call us.
$360,000.00
Compare|
driven type
|
Electric
|
|
Voltage
|
380V
|
|
automatic grade
|
Automatic
|
|
packaging material
|
plastic, Metal, Glass
|
|
application
|
Beverage
|

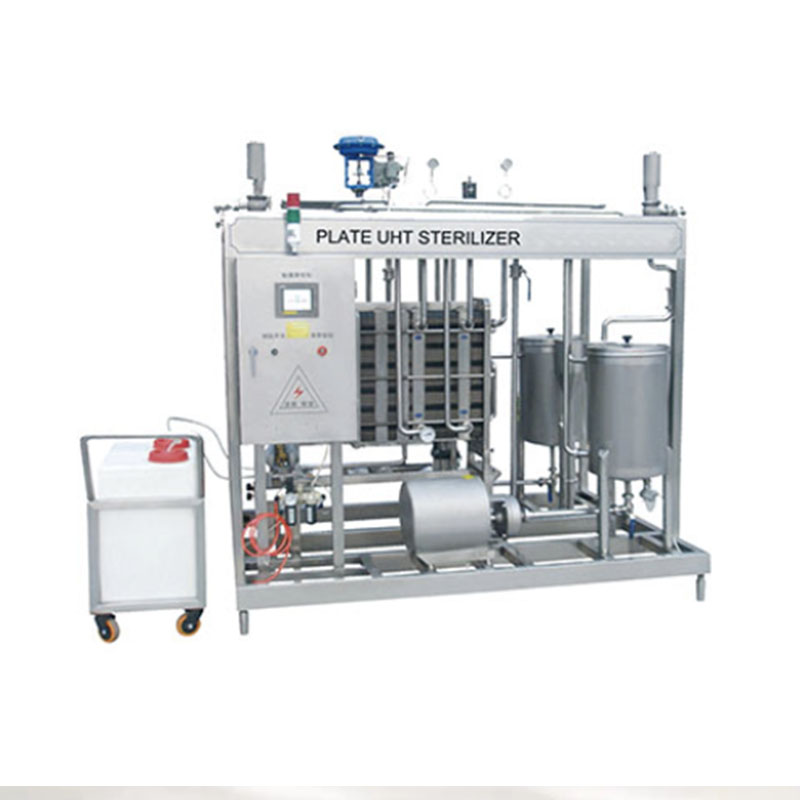

1. Application: The pipeline sterilizer can be used for sterilizing dairy products, liquid food and beverage, concentrated jam, biology, and other types of medicine.
2. Main structure: material tank, sterilization tank, material pump, heat exchanger, hot water intersection, controller, etc.
3. Working principle: Pre-sterilize, sterilize the pipelines in contact with the materials, use the hot water circulation in the pipelines, for more than 20 minutes, then lower the temperature of the pipelines, and start to sterilize the materials. Disposal material is tanked and pumped to a pipeline heat exchanger. Then put the material into the heating tube for sterilization according to the required time, after sterilization, enter the insulation tube, enter the cooling tube and send it to the filling machine.


1. Materials and heating medium are heated through non-contact heat exchange in their respective sealing systems to ensure the health and safety of materials;
2. Short sterilization time, can ensure that the nutrition of the material is not destroyed;
3. The whole machine is made of food-grade stainless steel material to ensure that it meets the requirements of the national safety and health indicators of beverage and food equipment;
4. Good heat transfer effect, high heat recovery rate, less energy consumption;
5. The main control components, valves and accessories are imported parts, long service life;
6. PLC control can automatically control the heating temperature, hot water temperature and steam flow adjustment of each section of the material, and has automatic material reflux system to ensure that the material 100% sterilization effect;
7. Simple structure, easy to clean, easy to operate, low maintenance cost.
