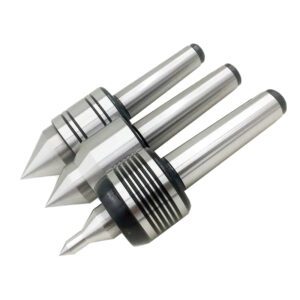

High Speed Live Center CNC Precision Heavy Duty Lathe
We can provide various kinds of package, such as plastic box, wooden case etc, and we can also pack the products according to your requirements if the order is large.
$65.00
Compare| Live Center Type | L mm | D | L1 | d | D1 mm | Max load kg | Max speed rpm |
| Type 1 | 124 | 36 | 27 | 15 | 12 | 80 | 7000 |
| Type 2 | 139 | 45 | 34 | 20 | 17 | 140 | 7000 |
| Type 3 | 176.5 | 60 | 47 | 25 | 23 | 400 | 5000 |
| Type 4 | 217 | 70 | 53 | 32 | 31 | 500 | 3800 |
| Type 5 | 273 | 90 | 65 | 40 | 44 | 1200 | 3000 |
| Type 6 | 354.6 | 105 | 78 | 50 | 63 | 2500 | 2600 |
We can provide various kinds of package, such as plastic box, wooden case etc, and we can also pack the products according to your requirements if the order is large.
Based on 0 reviews
Be the first to review “High Speed Live Center CNC Precision Heavy Duty Lathe”
