High Precision Dimension Measuring Video Measuring System

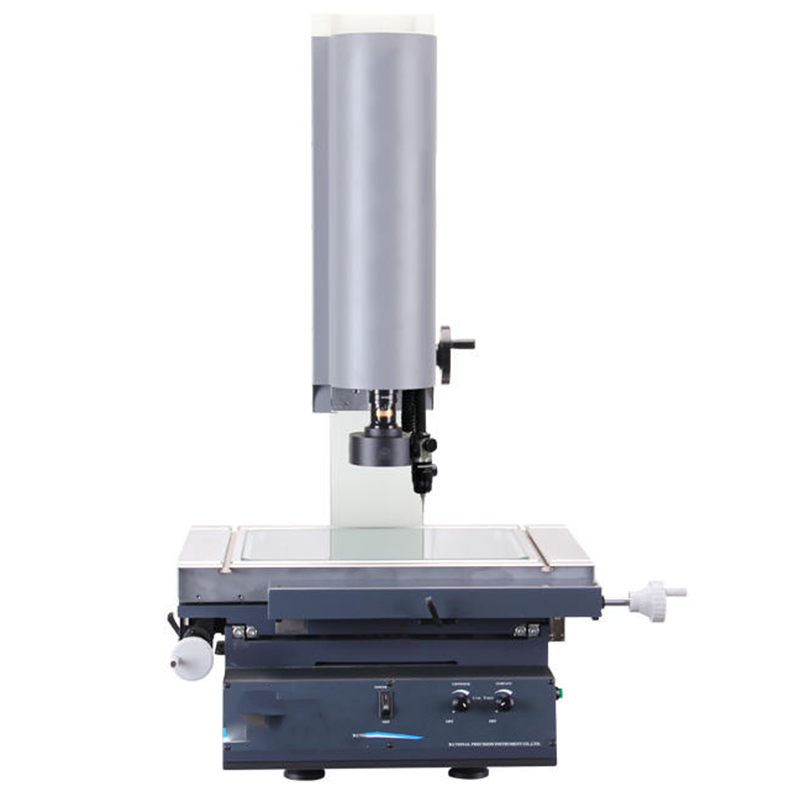

The Rational VMS Series 2D Video Measuring Machine is a professional precision inspection tool tailored for 2D and 2.5D measurement needs in precision manufacturing. Built with a durable combination of aluminum alloy, plastics, and glass, it has a sleek silver finish and operates on 250W power, ensuring both sturdiness and practicality for long-term use.
Technically, it excels in accuracy—boasting E1xy=(2.5+L/100) μm precision and 0.5 μm resolution—paired with a 1/3″ GIGE color CCD camera for clear optical imaging, enabling reliable micrometer-level detection. Its Z-axis travel reaches 200mm (customizable up to 400mm) to fit various workpiece heights, while the integrated QMS3D-M software streamlines data analysis and measurement workflows. Certified by CE, ISO, and ROHS, it meets global quality standards.
$8,000.00
CompareParameter Table:Dimension Measuring Video Measuring System
|
Category
|
Parameter Item
|
Details
|
|
Product Basic Info
|
Product Name
|
Rational VMS Series 2D Video Measuring Machine
|
|
Color
|
Silver
|
|
|
Material
|
Aluminum alloy & Plastics & Glass
|
|
|
Power
|
250W
|
|
|
Technical Parameters
|
Accuracy (μm)
|
E1xy=(2.5+L/100) μm
|
|
Resolution
|
0.5 μm
|
|
|
Z-axis Travel (mm)
|
200 (can be customized to 400)
|
|
|
GIGE Color Camera
|
1/3″ color CCD camera
|
|
|
Software & Certification
|
Software
|
QMS3D-M
|
|
Certification
|
CE, ISO, ROHS
|
|
|
Payment & Lead Time
|
Payment Term
|
L/C or T/T in advance
|
Application:
- Mechanical parts: 2D dimensional measurement of precision components
- Electronic assemblies: Micrometer-level inspection of mobile phone parts
- Mold industry: Size verification of mold cavities and cores
- PCB manufacturing: Defect inspection and contour measurement of circuit boards
- Plastic products: 2.5D shape measurement of injection-molded parts
Contact us to get your quotation now.
