Galvanized Steel Cable Tray and Perforated Cable Tray Supporting System

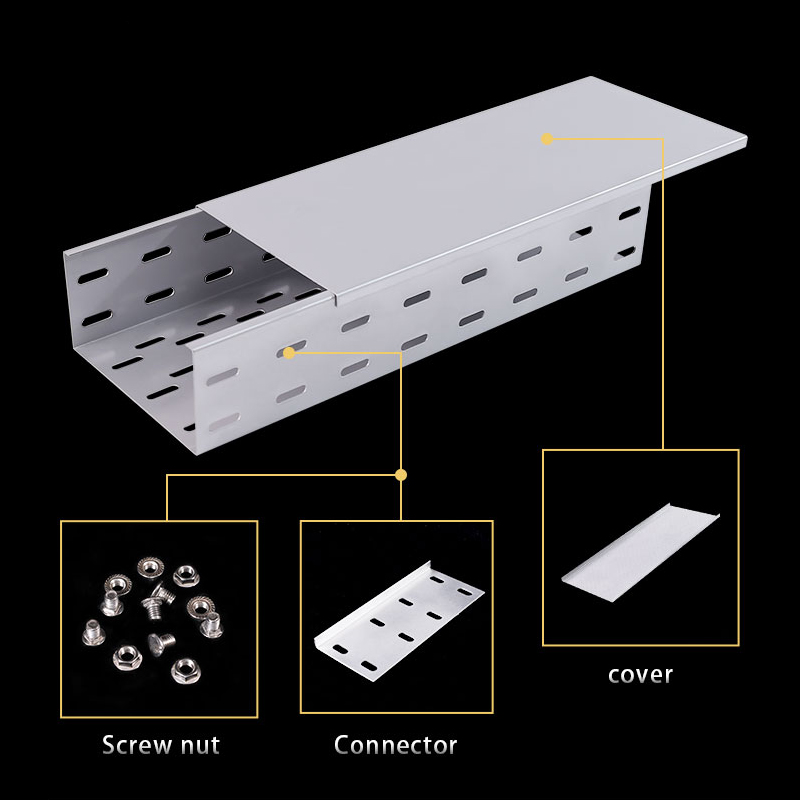

The Perforated Cable Tray is a semi-sealed type tray. Its bottom is punched for heat dissipation. It is mainly used for horizontal or vertical laying of control cables and communication cables. Equipment for power cables.It is the most widely used one in petroleum, chemical industry, light industry, television, telecommunications and so on. It has the advantages of light weight, large load, beautiful appearance, simple structure and convenient installation. It is suitable for both the installation of power cables and the laying of control cables.
$9.80
CompareAbout Perforated Cable Tray
The Perforated Cable Tray is a semi-sealed type tray. Its bottom is punched for heat dissipation. It is mainly used for horizontal or vertical laying of control cables and communication cables. Equipment for power cables.It is the most widely used one in petroleum, chemical industry, light industry, television, telecommunications and so on. It has the advantages of light weight, large load, beautiful appearance, simple structure and convenient installation. It is suitable for both the installation of power cables and the laying of control cables.
|
Specifications and Parameters of perforated Cable Tray
|
||||||||
|
No
|
Model
|
Specifications(mm)
|
Weight
(kg/Pieces)
|
cover
|
||||
|
B
|
H
|
L1
|
L2
|
Model
|
Weight(kg/Pieces)
|
|||
|
2
|
CT-50X50
|
50
|
50
|
200
|
200
|
1.32
|
CV-50
|
0.39
|
|
3
|
CT-100X50
|
100
|
50
|
250
|
200
|
3.51
|
CV-100
|
1.32
|
|
7
|
CT-150X100
|
150
|
100
|
370
|
320
|
5.58
|
CV-150
|
1.88
|
|
8
|
CT-200X100
|
200
|
100
|
420
|
320
|
8.87
|
CV-200
|
3.84
|
|
9
|
CT-300X100
|
300
|
100
|
520
|
320
|
30.30
|
CV-300
|
7.15
|
|
10
|
CT-400X100
|
400
|
100
|
620
|
320
|
32.45
|
CV-400
|
9.27
|
|
11
|
CT-500X100
|
500
|
100
|
720
|
320
|
35.05
|
CV-500
|
4.32
|
|
12
|
CT-600X100
|
600
|
100
|
820
|
320
|
37.70
|
CV-600
|
13.91
|
