Basic parameters of the Fully Automatic Weighing Forming Filling Sealing Machine
MODEL | 8-200 | 8-260 | 8-300 | 8-420 | 10-200 |
Number of Packing head | 8 | 8 | 8 | 8 | 10 |
Packing bag size (mm) | W: 80-200mm
L: 100-400mm |
W: 140-260mm
L: 100-400mm |
W:200-300mm
L: 100-400mm |
W: 300-420mm
L: 100-500mm |
W: 80-200mm
L: 100-400mm |
Package weight | 10-2500g | 10-2500g | 10-2500g | 10-4000g | 10-2500g |
Packaging speed | 25-60pcs/min | 25-50pcs/min | 10-30pcs/min | 8-25pcs/min | 20-80pcs/min |
Mechanical weight | 1400kg | 1500kg | 1700kg | 2000kg | 1700kg |
Voltage | 380V, Three phases, 50/60Hz | ||||
Total Power | 2.5kw | 2.5kw | 3.0kw | 3.0kw | 2.5kw |
Automatic filling and sealing together.
Master control circuit adopts imported PLC microcomputer with man-machine interface and frequency control,making setting paramaters(to adjust bag length and width, packing speed,cutting position) convenient and quick and operation intuitive. Full implement the humanizes automatic operation.

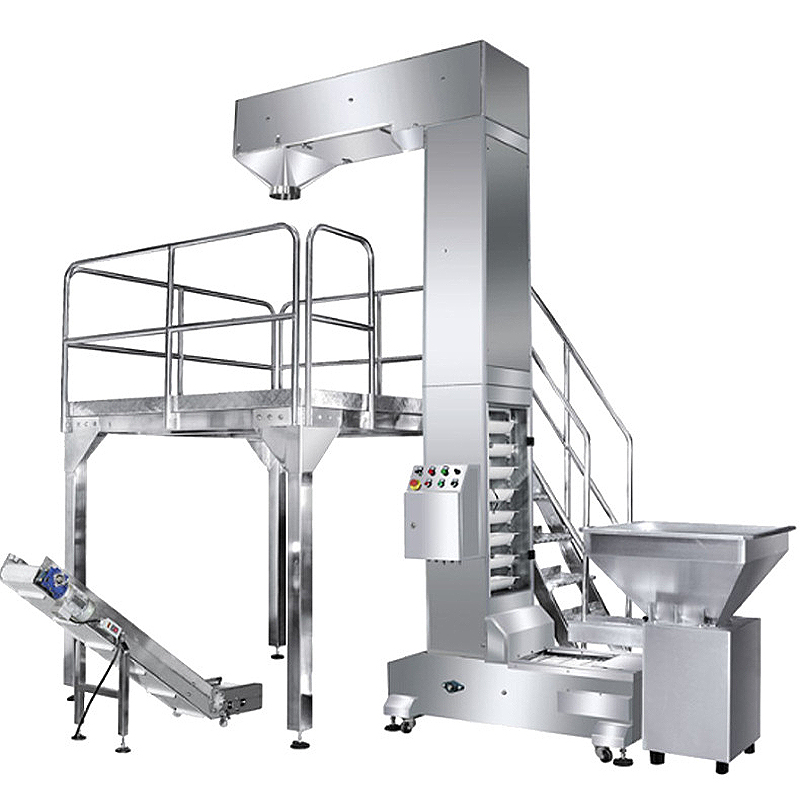

Z-type bucket elevator
Z-type bucket elevator has theadvantages of flexible compositiorsmall damage to the material itseltand reduction of scrap rate. The shell of the whole machineis sealed to reduce dust flying.

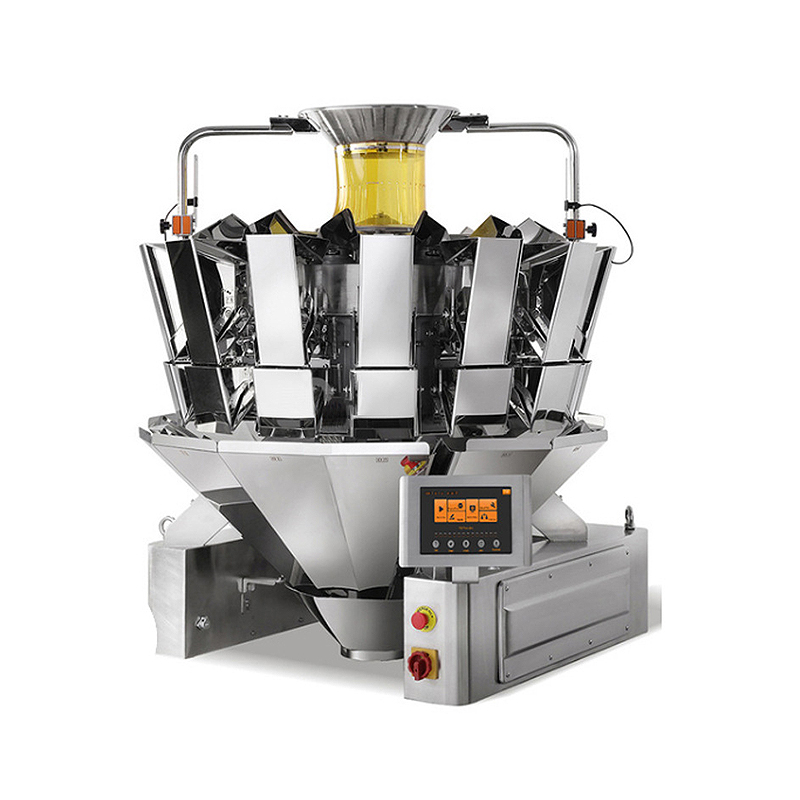

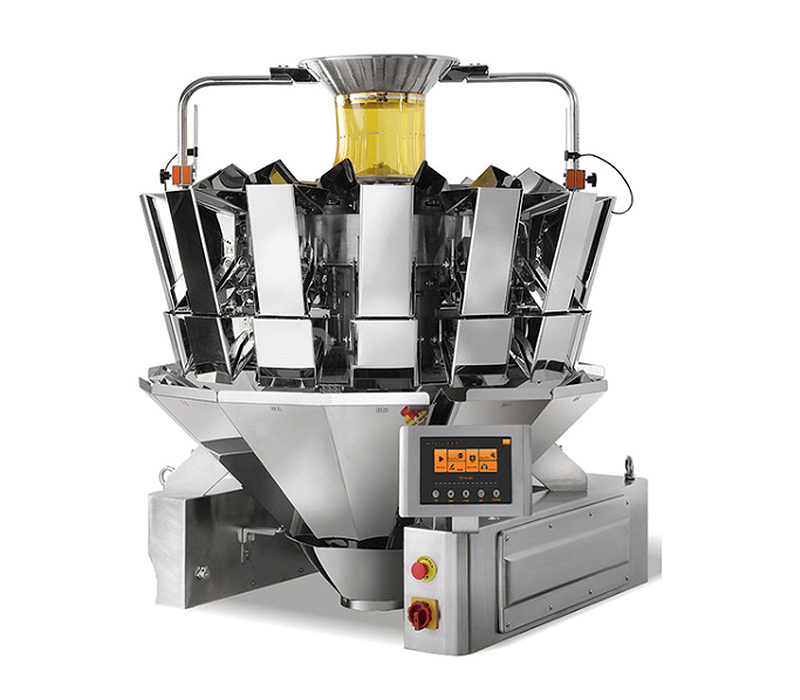

Multihead Weigher
When the weighing hopper underthe storage hopper is empty after discharging, the storagehopper is opened, the materialis discharged to the weighingbucket, and the weighing bucketstarts to weigh.
