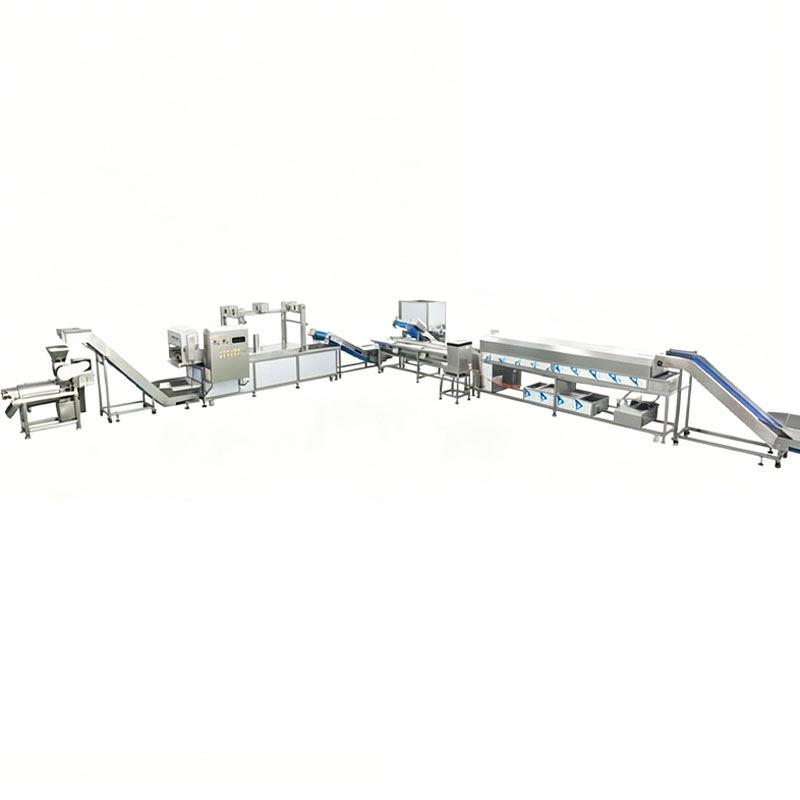

Fruit Juice Processing Line Price SS304 Beverage System

Product introduction from Fruit Juice Processing Line

Fruit juice processing line is a fully automated industrial beverage production system designed for efficient processing of fruits into juice, pulp, concentrate, and beverages.

The system integrates washing, sorting, peeling, extraction, filtration, concentration, sterilization, and aseptic filling. It is widely used in juice factories, beverage plants, and food processing industries.

Built with SS304 stainless steel, the system ensures hygiene, corrosion resistance, and long-term stable operation for industrial production.

Working principle

Step 1: Fruits are cleaned using brush and spray washing machine
Step 2: Manual sorting table removes unqualified raw materials
Step 3: Peeling machine removes skin efficiently with high yield
Step 4: Blanching machine performs sterilization and color protection
Step 5: Juice extraction machine separates juice and waste materials
Step 6: Filtration system produces clear juice or concentrated juice
Step 7: Concentration system adjusts Brix level for final product
Step 8: Filling system packages juice into aseptic or retail containers

Product Parameter Table

End product	Concentrated juice, clear juice
Processing capacity	From 10 t/day to 480 t/day
Efficient input	About 65% raw fruit (35% as waste, peels and seeds)
Fruit consistence	10~12% Brix
Product consistence	65~72% Brix for concentrated juice
End package	Aseptic bag/ Tin can/ Glass bottle/ PET bottle/ Stand-up pouch, etc
Output	Can be calculated

Comparison Module

Result: Modern system significantly improves yield, quality, and industrial scalability.

Main Features

• Brush and spray washing system removes pesticide residues and dirt
• Manual sorting table ensures raw material quality selection
• Automatic peeling machine improves efficiency and reduces waste
• Blanching system preserves color and improves juice stability
• Screw juice extractor ensures high yield up to 65% raw fruit utilization
• Supports concentrated juice Brix up to 72%
• Food-grade stainless steel ensures hygiene and safety compliance
• Compatible with aseptic bags, bottles, cans, and pouches

Application Scenarios

• For fruit processing factories → improves juice extraction efficiency and yield
• For beverage manufacturers → ensures stable juice concentration quality
• For seasonal fruit surplus → reduces waste and increases resource utilization
• For export juice production → meets international food safety standards
• For unstable raw material quality → ensures consistent juice Brix output
• For large-scale beverage plants → supports 10–480 tons/day production capacity

Why Choose This System

• Complete integrated fruit juice processing solution
• High-efficiency screw juice extraction technology
• Supports multiple fruit and vegetable raw materials
• Stable juice concentration control system
• Flexible packaging compatibility (bag, bottle, can, pouch)
• High automation reduces labor cost
• Food-grade SS304 stainless steel construction
• Suitable for industrial-scale beverage production

FAQ

What is fruit juice processing line used for

It is used to convert fresh fruits into juice, concentrate, pulp, and beverage products through automated industrial processing.

How does fruit juice processing line work

It works through washing, peeling, extraction, filtration, concentration, sterilization, and aseptic filling.

What products can fruit juice line produce

It can produce clear juice, pulp juice, concentrated juice, and fruit beverages.

What is SS304 stainless steel used for in juice equipment

It ensures food safety, corrosion resistance, and long-term durability.

What is aseptic filling in juice production

It is a sterile packaging method that extends shelf life without preservatives.

Which fruits can be processed in this line

Apples, oranges, mangoes, pineapples, berries, and other fruits.
