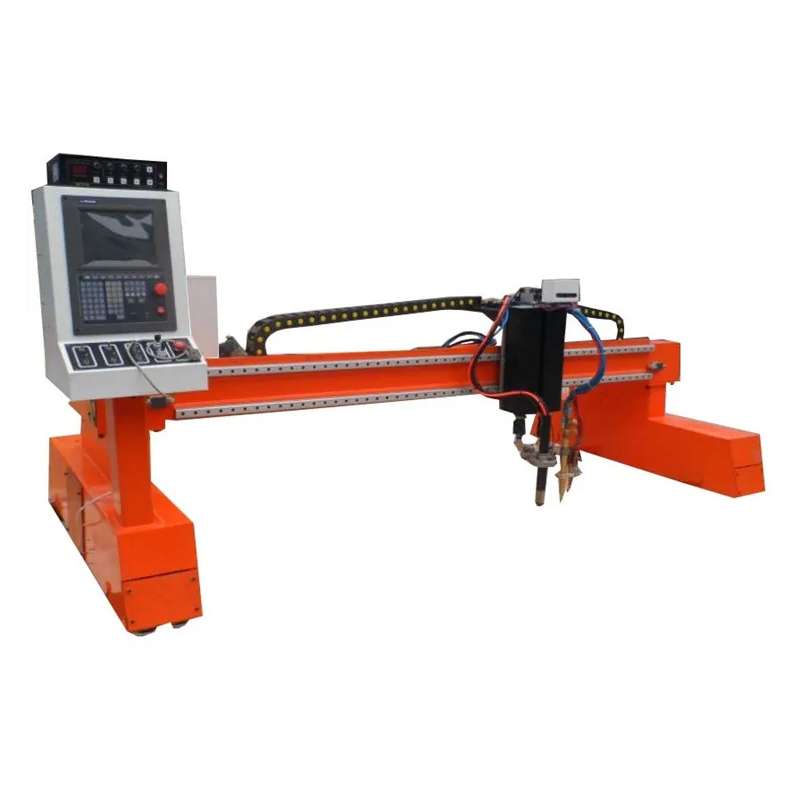

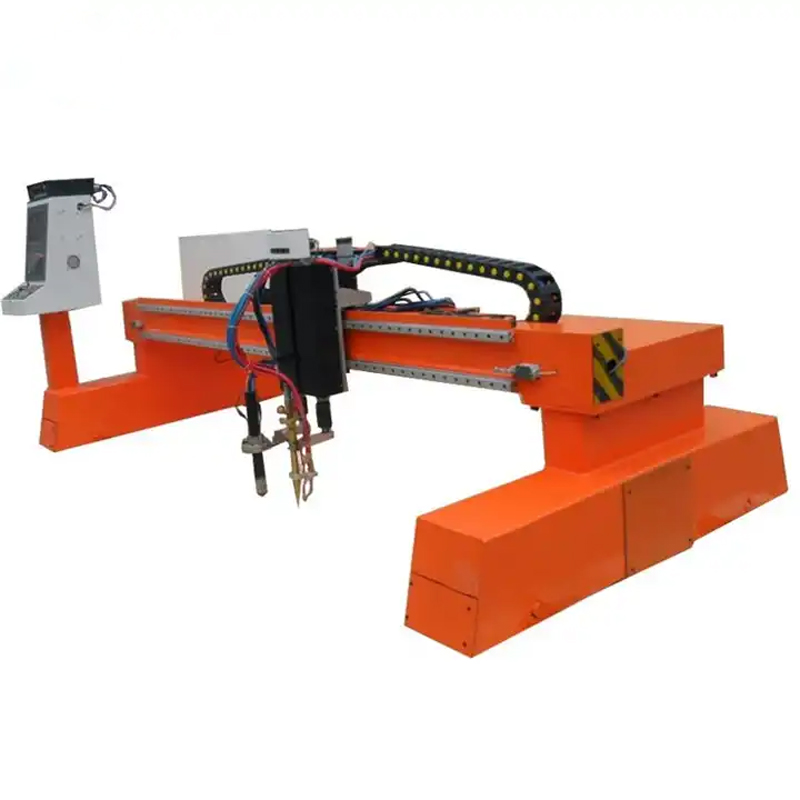

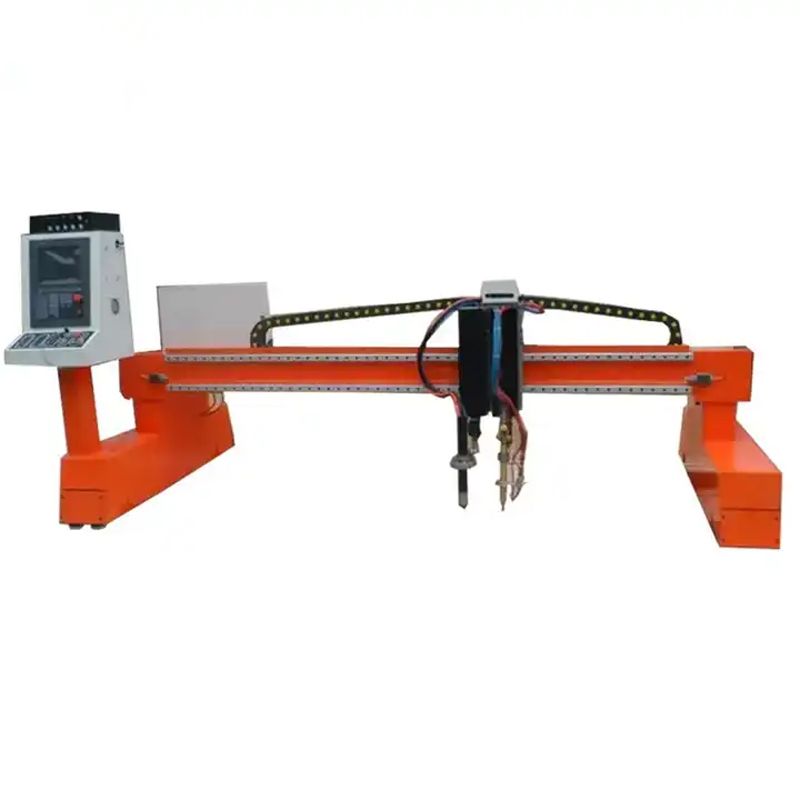

| Applied materials | Iron, steel, aluminum, sheets, galvanized sheets, titanium plates | |||
| Cutting thickness | 0.5-40mm (With flame, can cut 150mm carbon steel ) | |||
| Cutting speed | 0-8000mm/min | |||
| Repeat positioning accuracy | ±0.05mm | |||
| Process precision | ±0.35mm | |||
| Control system | Beijing Starfire control system | |||
| Support software | Drawing software–Auto CAD
Nesting software–Australia fast cam software Cutting path file–artcam, type3 etc |
|||
| Height Control | arc voltage torch height controller | |||
| Drive system | Stepper motors | |||
| Transmission system | X, Y Taiwan Hiwin high-precision, zero clearance increased linear guide+ gear rack | |||
| Working Table-board | Steel blade saw tooth mesa | |||
| Input voltage | 380V/3P/50HZ (220V with transformer) | |||
| Files transfer | USB interface | |||
| File format | G-code | |||
| Working mode | Non-contact arc | |||
