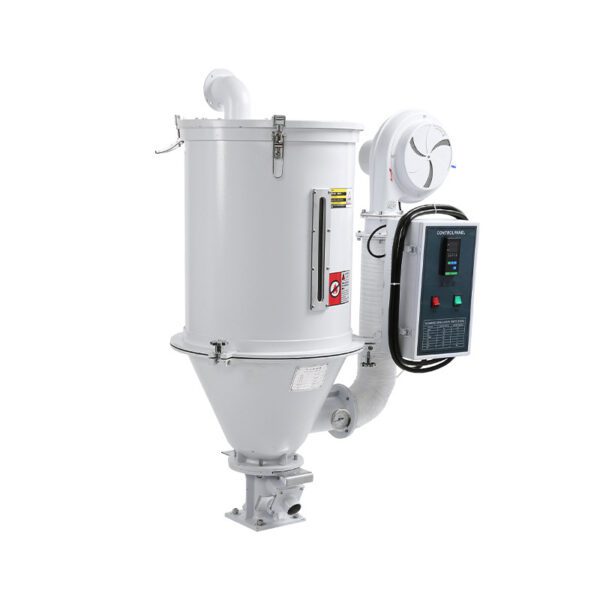

Extruder Plastic Hopper Dryer 12kg-1000kg Vertical Hopper PP Plastic Raw Material Granule Dryer For Injection Machine

Add to wishlist
Compare

NOTE: Prices may vary by product model and material.

  • Intelligent temperature controller
  • Punched hole screen
  • Hot Air Diffusion Device
  • Visual material window
  • Bend pipe double layer insulation
  • Precision Thermometer

$704.00

Compare

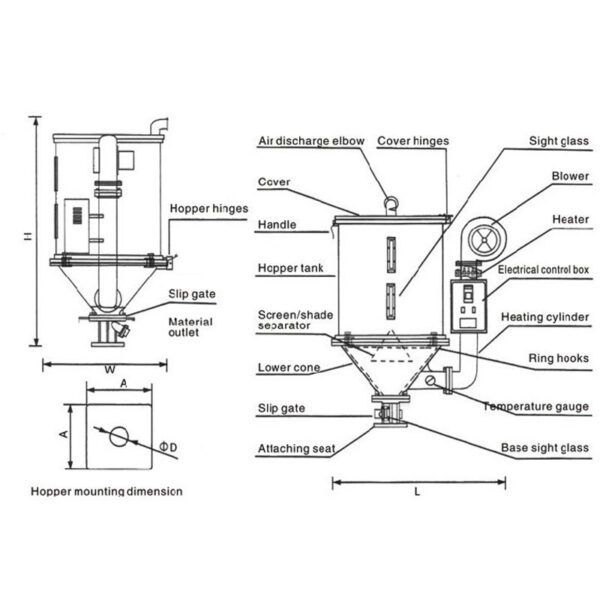

MODELS OF THE Extruder Plastic Hopper Dryer

MODEL D-12 D-25 D-50 D-75 D-100 D-150 D-200 D-300
Heating power 2.2kw 3kw 3.9kw 4.2kw 6kw 6.6kw 12kw 15kw
Blower 0.05kw 0.12kw 0.12kw 0.12kw 0.12kw 0.12kw 0.18kw 0.18kw
Capacity 12kg 25kg 50kg 75kg 100kg 150kg 200kg 300kg
H (mm) 865 1050 1145 1240 1340 1580 1750 1985
H1 (mm) 750 925 1045 1150 1340 1605 1480 1480
H2 (mm) 375 410 380 475 470 470 550 550
H3 (mm) 370 460 520 620 725 970 975 975
H4 (mm) 110 210 220 220 226 226 258 258
H5 (mm) 150 150 150 150 158 158 158 158
W (mm) 660 725 840 900 955 955 1230 1230
D (mm) 360 405 490 550 605 605 770 770
W1 (mm) 150 150 150 150 220 220 257 257
φA (mm) 325 385 470 530 595 595 750 750
φB (mm) 55 55 55 55 90 90 90 90
Net Weight 35kg 40kg 45kg 55kg 70kg 75kg 100kg 120kg

Intelligent temperature controller
Proportional deviation indicating thermostat can be used to control temperature accurately.

Punched hole screen
Rust-free material, spot welding process, not easy to fall off.

Hot Air Diffusion Device
Adopting high-performance hot air diffusion device design to ensure uniform temperature and improve drying efficiency.

Visual material window
A transparent visible material window is added to the front of the barrel, so that the raw materials in the barrel can be checked at any time.

Bend pipe double layer insulation
3MM thickened asbestos cloth + thermal insulation cloth is environmentally friendly/energy-saving/efficient.

Precision Thermometer
High-precision detection, stainless steel housing.
