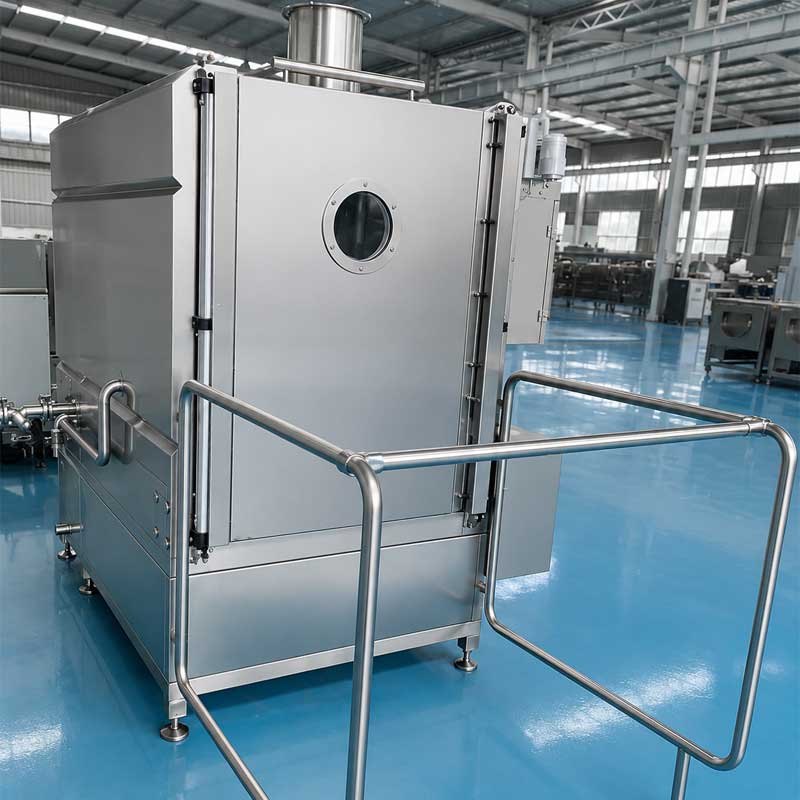

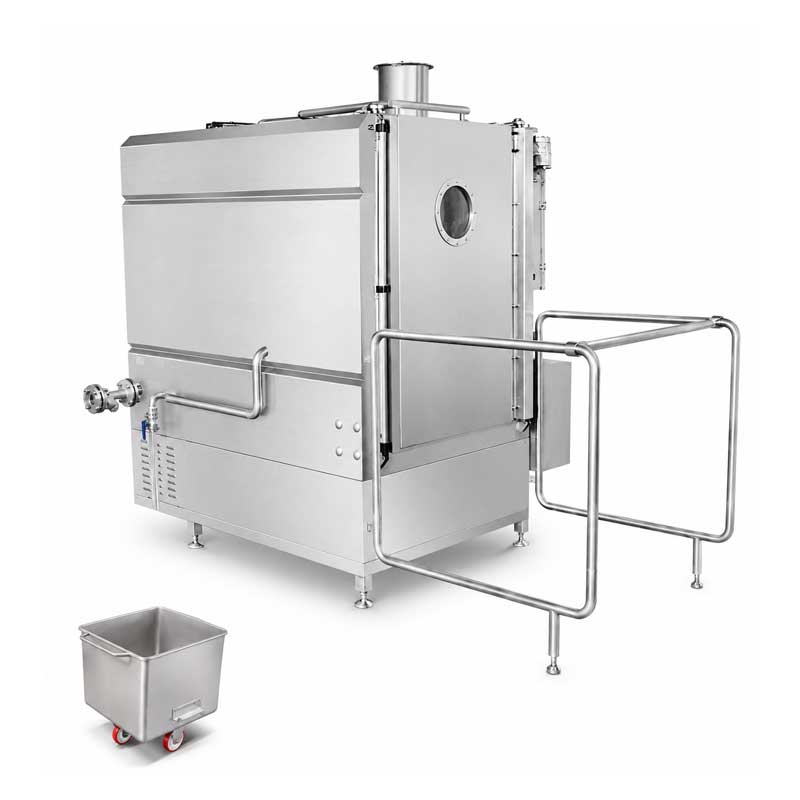

Euro Bin Washing Machine Product Overview

The Euro Bin Washing Machine for Food Processing is designed for the automatic cleaning of reusable material bins, food trolleys, and similar containers commonly used for ingredient handling and product transportation.

Manual washing of large stainless steel bins can require significant labor and may produce inconsistent results. This automatic system replaces repetitive manual spraying with a controlled washing cycle combining high-pressure water, heat, detergent, and multi-angle spray action.

After loading, the bin is positioned for washing so that rotating nozzles can reach its internal and external surfaces. Hot detergent water loosens food residues and grease, followed by rinsing to remove remaining contamination and cleaning solution.The reference machine is designed primarily around approximately 200-liter Euro bins and provides a nominal processing capacity of 40–60 pcs/h.

How the Euro Bin Washing Machine Works

1. Bin Loading
The operator moves the dirty Euro bin into the designated loading position.The loading structure is designed to accommodate the trolley and prepare it for the automatic washing cycle.

2. Automatic Positioning
Once the cycle starts, the bin is secured and inverted or moved into the washing position.The reference system can perform approximately 180° inversion, exposing the inside of the bin to the spray system.

3. High-Pressure Hot Water Washing
Pressurized hot water is delivered through strategically arranged rotating spray nozzles.Multiple spray directions allow water jets to reach both the inner and outer surfaces of the bin.

4. Detergent Cleaning
An automatic dosing system introduces detergent into the washing water.Heat, detergent, and mechanical spray impact work together to loosen grease, protein deposits, and other food residues.

5. Rinsing
After the main detergent washing stage, fresh hot water can be used for rinsing.The reference process uses a typical two-stage concept consisting of a hot detergent wash followed by a fresh hot water rinse.

6. Automatic Return
After the programmed washing cycle is complete, the Euro bin returns to its upright position for removal.

Key Features

High-Pressure Multi-Angle Spray
Rotating stainless steel nozzles distribute pressurized water across the bin surfaces, helping clean difficult internal and external areas.

Hot Water Cleaning
The standard reference operating temperature is adjustable from 60–80°C, allowing the washing conditions to be adapted to different residue levels.

Automatic Detergent Dosing
Controlled detergent addition helps maintain repeatable cleaning conditions while reducing unnecessary manual chemical dosing.

Automatic Bin Inversion
The system positions or flips the Euro bin for effective access to its interior before automatically returning it after washing.

PLC Touchscreen Control
Operators can adjust parameters such as washing time, water temperature, and detergent dosage from the control interface. The reference design mentions a 7-inch Siemens touchscreen as an example configuration.

Water Circulation and Filtration
Used washing water can pass through a circulation and filtration system before reuse during suitable stages of the washing process.

Technical Specifications

How to Select the Right Euro Bin Washer

Before quotation or production, the following details should be confirmed.

1. What size bins do you use?
   Provide the external dimensions and preferably photos or technical drawings.
2. How many bins need to be washed per hour?
   The reference configuration provides 40–60 pcs/h, but the required capacity should be based on actual production volume.
3. What residues are inside the bins?
   Meat residues, grease, sauces, vegetables, starch, dairy products, and other materials can require different cleaning programs.
4. Is steam available?
   If yes, provide the available steam pressure and capacity. Otherwise, an electric heating solution can be evaluated.
5. What is your local power supply?
   Voltage, frequency, and phase should be confirmed before production.
6. What cleaning result is required?
   The required sanitation procedure should be established according to the customer’s product, facility hygiene program, cleaning chemicals, and applicable regulations.

What Can the Machine Wash?

The system is primarily intended for industrial material-handling containers such as:

200L Euro Bins
Common stainless steel food-processing trolleys.

Meat Trolleys
Containers used for transporting meat and processed products.

Ingredient Bins
Reusable containers for raw materials and ingredients.

Food Processing Trolleys
Mobile stainless steel containers used between processing stages.

Vat-Type Containers
Compatible containers can also be considered after dimensions are confirmed.

FAQ

What is a Euro Bin Washing Machine?
It is an industrial washer designed to automatically clean large reusable material bins and trolley containers used in food processing and related industries.

What size Euro bin can it wash?
The reference equipment is primarily designed around approximately 200L Euro bins. Exact bin dimensions should be confirmed before final machine design.

What is the washing capacity?
The reference machine processes approximately 40–60 bins per hour.

What washing temperature does it use?
The reference operating temperature is adjustable between 60°C and 80°C.

Does the machine use detergent?
Yes. An automatic dosing pump can add detergent to the hot washing water to assist with grease, protein residues, and other deposits.

Does it wash the inside and outside of the bin?
Yes. Rotating nozzles provide multi-angle spray coverage for exposed internal and external surfaces.

Does the machine automatically flip the bin?
The reference operating process includes automatic positioning or approximately 180° inversion before washing, followed by automatic return after the cycle.

Can steam be used for heating?
Yes. The reference configuration supports either steam or electric heating.
