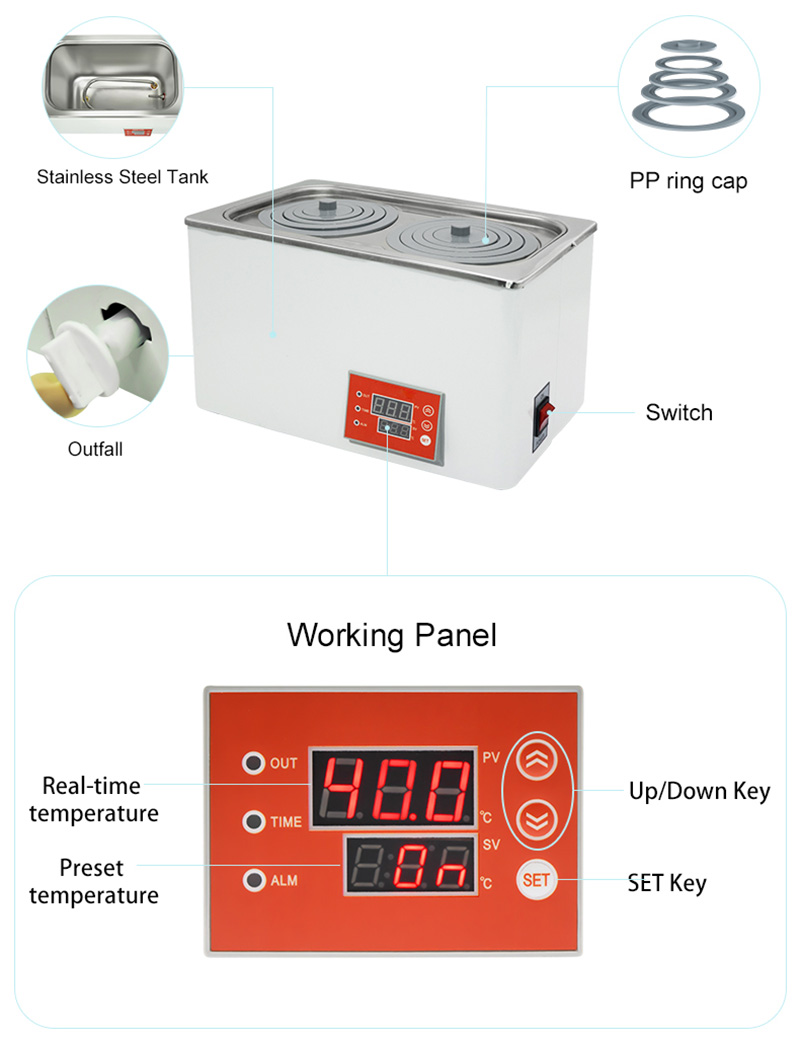

Product Structure:
This product adopts water-trough liner which is welded (or welded through one shot shock and extrusion) using imported stainless steel and its shell is made of high-quality cold rolled steel and is treated with plastic spraying technology, shinny and wear-resisting.
With the electric heating pipe gripped into the water, it can heat fast and keep high heat efficiency, low power consumption.
By intellectual digital temperature control, it will check the rise and fall of temperature so as to ensure the precision of temperature control.
Laboratory Equipment Application:
Electric heating constant temperature water bath boiler is mainly used for distillation, desiccation, concentration and warm-maceration of chemicals or biologics, it’s conventional indispensable instruments prepared in laboratories by various universities and colleges, secondary specialized schools, scientific research enterprises and institutions.
Model
|
Model-1
|
Model-2
|
Model-4
|
Model-6
|
Range of survey
|
RT-99.9℃
|
|||
Error on measurement
|
±0.2%FS or ±0.5%FS
|
|||
Resolution
|
0.1℃
|
|||
Range of voltage
|
110-220VAC, 50/60Hz
|
|||
Operation environment
|
-5℃-50℃, relative humidity 35%-85%
|
|||
Output relay
|
240V/30A (Standard)
|
|||
Operation method
|
Three button style, four steps continuous speed regulation with increasing and decreasing button
|
|||
Measurement value amendment
|
-4.9℃ to +4.9℃
|
|||
Heating power
|
400W
|
600W
|
800W
|
1000W
|
Inner dimension
|
160×160×140mm
1 hole
|
305×160×140mm
2 holes
|
305×305×140mm
4 holes
|
470×305×140mm
6 holes
|
