Dryer Machine Screen Print With IR Conveyor Dryer Screen Printing Belt
Main Application:
PCB/PCBA Conformal Coating curing
SMT component protection and reinforcement
Medical instrument uv glue curing (365nm)
Different UV Printing (offset, screen, label printing) (395nm)
$1,250.00
Compare| Technical Data of the uv led light head FOR Dryer Machine |
| Wavelength(±5nm) | 365nm /385nm/395nm/405nm |
| Curing area | 600x250mm / other sizes available |
| Electronic power | 1350w |
| Input voltage | 220VAC 50Hz / 60HZ |
| Cooling method | Air cooling |
| Life | >10000 H |
| Conveyor speed | 100-400mm adjustable |
| Irradiation distance | 10-100mm adjustable |
| Optic power | 500mw/cm2 (10mm irradiation distance) |
| Recommend irradiation distance | 10-100mm |
| Dryer Machine Product feature: |
| 1. Instant ON/ OFF, NO preating required. |
| 2. Adjustable curing distance, UV output intensity and conveyor speed |
| 3. Energy saving and environmental protection |
| 4. infrared sensor to stop, protect your products |
| 5. No infrared radiation, cold light source, suitable for all types of heat-sensitive material curing. |
Main Application:
PCB/PCBA Conformal Coating curing
SMT component protection and reinforcement
Medical instrument uv glue curing (365nm)
Different UV Printing (offset, screen, label printing) (395nm)
Control system features:
1: Panel display, touch operation, real-time monitoring of the head of the working state
2: Intensity adjustable from 0-100%
3: Temperature monitoring
4: Infrared sensor control, work mode selection
5: Whole machine size: L1200*W820*1100mm
Related products
-
Screen Printing Machines
Customized Drying Machine Screen Printing Machine Ink Glue Curing Oven UV Tunnel Dryer
Screen Printing MachinesCustomized Drying Machine Screen Printing Machine Ink Glue Curing Oven UV Tunnel Dryer
This machine can be matched with the production line.it is used in UV glue curing of precision products such as optics,lenses,magnetic motors,mobile phone components,battery components,printers and computer precision components.it is used for curing electronic components,liquid crustal chips,terminal sealants,mobile phone component bonding,plastic component bonding and LCD,etc
SKU: n/a -
-
Screen Printing Machines

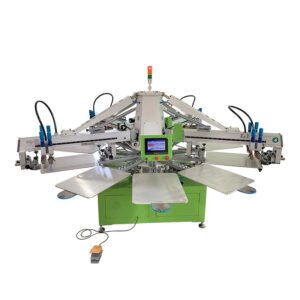

Automatic Multifunctional Screen Printing Machine
