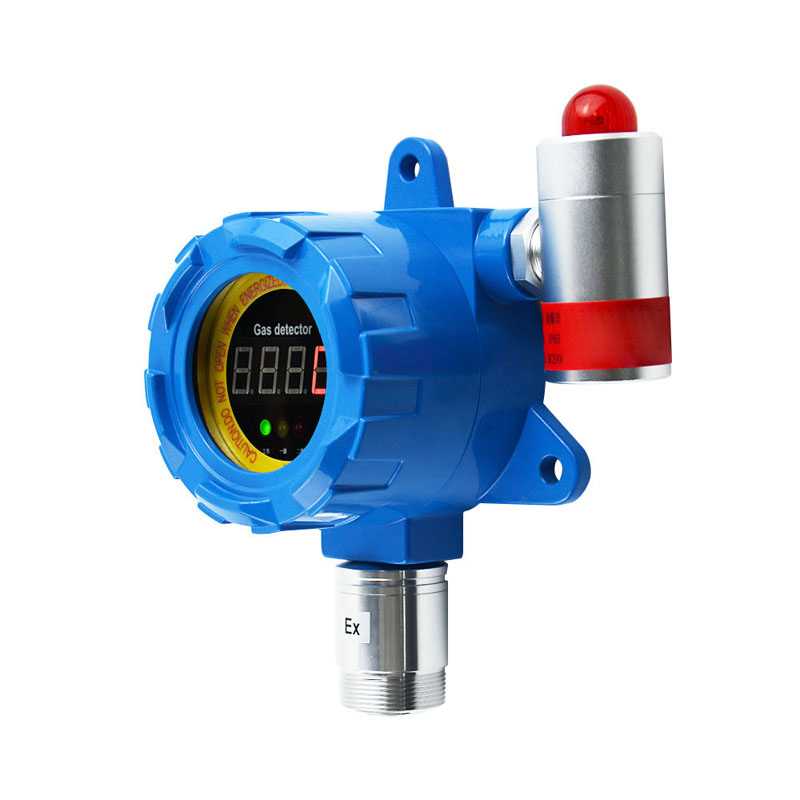

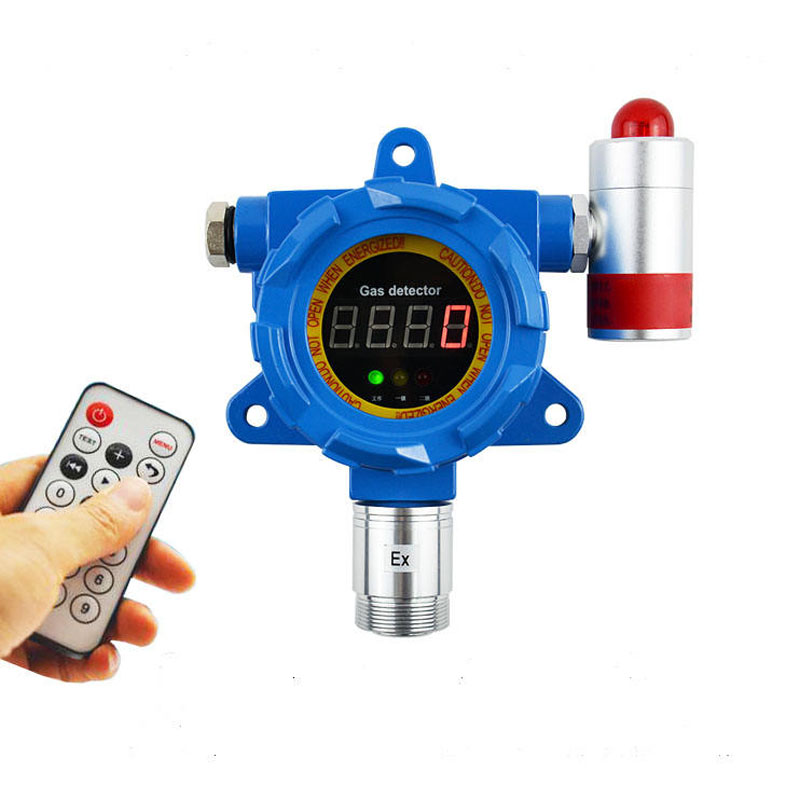

Digital Display LPG Gas Detector Propane Butane Alarm Sensor
This fixed LPG gas detector features an explosion-proof housing for safe and reliable operation in hazardous environments. It continuously monitors on-site gas concentration and provides real-time digital display. When propane or butane levels exceed the preset alarm threshold, the detector immediately activates optional audible and visual alarms. Designed for kitchens, industrial areas, and gas facilities, it ensures early leak detection, enhances safety, and helps prevent fire or explosion risks effectively.
Compare
Product Description of Digital Display LPG Gas Detector
This fixed LPG gas detector features an explosion-proof housing for reliable gas monitoring. It continuously detects propane and butane concentration and shows real-time readings on a digital display. When gas levels exceed the preset alarm point, the detector triggers audible and visual alarms immediately. Suitable for kitchens, industrial sites, and gas rooms, it provides effective early warning to help prevent fire and explosion hazards.
Product Parameter Table
| Product Size | 144*190*87mm |
| Product weight | 1130g |
| Detect Gas | LPG gas or other combustible gas |
| Measure range | 0-100%LEL |
| Resolution | 1%LEL |
| Response time | ≤20s |
| Working voltage | DC24V |
| Output signal | 4-20 mA |
| Connection | 3 wires |
| Transmission cables | Three core shielded cable 3 x 1.5 mm2 |
| Temperature range | – 20 ℃ ~ 50 ℃ |
| Humidity | 15%-90%(RH) |
| Certificate | CE,ATEX,ISO9001 |
| IP class | IP65 |
| Transmission distance | <1000 m |
Main features
-
Certified Safety Compliance
Approved with CE and ATEX certifications for hazardous environments. -
Explosion-Proof Protection
Rated Ex ib IIC T6, designed for reliable operation in explosive gas areas. -
IP65 Protection Level
Water- and dust-proof design ensures stable performance in harsh conditions. -
Acousto-Optic Alarm System
Integrated sound and light alarms provide immediate warning when gas levels exceed limits. -
Durable Die-Cast Aluminum Housing
High-strength aluminum shell offers excellent heat resistance, corrosion protection, and long service life.
Application scenarios
-
Kitchen LPG Monitoring
Explosion-proof detector with alarm lamp monitors gas leaks, ensuring cooking safety. -
Pipeline LPG Detection
Installed at potential leak points, connected to a control panel for real-time monitoring. -
Industrial Acetylene Monitoring
Detects acetylene gas in welding and production areas, providing early warning to prevent fire or explosions.
Contact us to get your quotation now.
